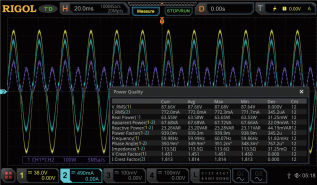

Enables built-in power analysis for switched-mode power supplies, with power quality and ripple analysis functions in the MSO5000 series oscilloscopes.

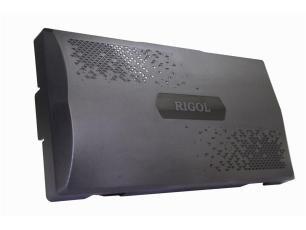

Front Panel Cover for MSO5000 Oscilloscopes

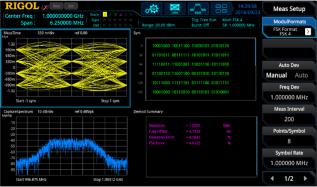

Software option for the RSA5000 series that enables advanced analysis and demodulation of RF signals such as QAM, QPSK, ASK and FSK.

EMI module for RSA3000 series with CISPR detectors, automatic segment scanning, limit analysis and report generation for pre-compliance testing.

EMI module for RSA5000 series with CISPR bandwidths, automatic segment scanning, multiple detectors and report generation for pre-compliance testing.

Upgrade for Rigol RSA3000E Series Spectrum Analyzers

Preamplifier for the Rigol RSA3000E series spectrum analyzer.

The RSA3000E-EMC option provides a Quasi-Peak detector and EMC filter.

EMI module for RSA3000E series with CISPR bandwidths, automatic segment scanning, multiple detectors and report generation for pre-compliance testing.

Option bundle for the MSO8000 series that enables all serial decoding functions, power analysis, jitter analysis and the integrated waveform generator.

Software option for the MSO8000 series. PC serial bus trigger and analysis (RS232/UART)

Built-in serial bus trigger and analysis (I2C, SPI) for the MSO8000 series.

Auto serial bus trigger and analysis (CAN, LIN) for the MSO8000 series.

Flex serial bus trigger and analysis (CAN, LIN) for the MSO8000 series.

FlexRay serial bus trigger and analysis (FlexRay) for the MSO8000 series.

MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553) for the MSO8000 series.

Enables built-in power analysis in the MSO8000 series oscilloscopes; requires the RPA246 phase correction jig for phase deviation compensation.

Enables eye diagram and jitter analysis for serial signals in the MSO8000 series oscilloscopes.

Dual-channel 25 MHz arbitrary waveform generator for the MSO8000 series.

Upgrade licence that increases the memory depth to 100 Mpts for oscilloscopes in the DHO1000 series.

Licence for bandwidth upgrade from 70 MHz to 200 MHz for the DHO1072 and DHO1074 models.

Licence for bandwidth upgrade from 70 MHz to 100 MHz for models DHO1072 and DHO1074.

Licence for bandwidth upgrade from 100 MHz to 200 MHz for models DHO1102 and DHO1104.

Designed to mount the RIGOL DP800 series of programmable linear DC power supplies in a 19-inch rack

Bandwidth upgrade licence from 200 MHz to 400 MHz for the DHO4000 series

Bandwidth upgrade licence from 200 MHz to 800 MHz for the DHO4000 series

Bandwidth upgrade licence from 400 MHz to 800 MHz for the DHO4000 series

Upgrade licence for deep memory to 500 MPts for the DHO4000 series

Aerospace serial triggering and analysis (MIL-STD-1553) for the DHO4000 series

Serial audio triggering and analysis (I2S)

Automotive Serial Triggering and Analysis (CAN-FD/LIN)

Automotive Serial Triggering and Analysis (FlexRay)

Power Analysis Option

Package with serial decoding for CAN-FD/LIN, FlexRay, MIL-STD-1553 and I2S, as well as power analysis for the DHO4000 series.

Real-time Eye/Jitter Analysis (DS70000-JITTA)

20-channel 2-/4-wire multiplexer where all channels switch HI/LO, connects via M3TB20 and can be used in conjunction with the MC3065.

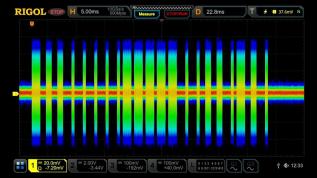

3 GHz bandwidth per channel in single-channel mode on the MSO8204A.

200 MHz real-time bandwidth upgrade for the RSA6000 series. Expands analysis bandwidth from 80 MHz to 200 MHz for advanced RF and spectrum analysis.

Option package for Rigol MHO2000 enabling advanced analysis, power and audio functions, as well as built-in AWG for signal generation and evaluation.
