Adapter for connection between RIGOL instruments with USB host port and GPIB bus, for remote control via external GPIB controller.

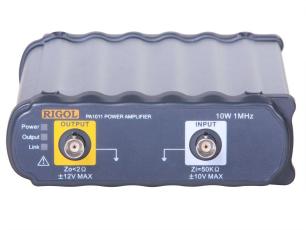

10 W power amplifier for DG series function/arbitrary waveform generators with up to 1 MHz bandwidth, selectable gain x1/x10, inversion and USB control.

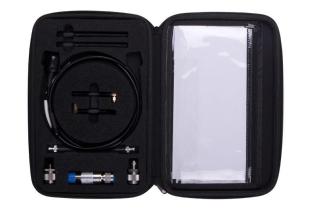

Includes RF cables, adaptors, impedance matching units and antennas for 900 MHz, 1.8 GHz and 2.4 GHz.

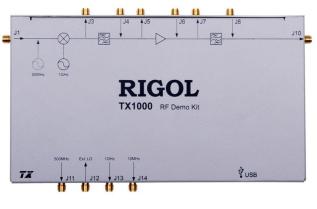

With built-in oscillator, mixer, filter and amplifier for practical learning and demonstration of spectrum analyzers, with USB operation and reference outputs.

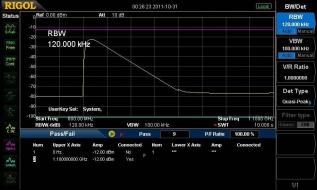

Enables EMI filters and Quasi-Peak detector for conducted and radiated measurements, with PC control via USB-TMC or LAN.

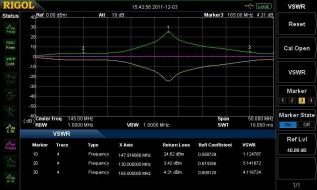

For S11 measurements enabling analysis of return loss, reflection coefficient and VSWR when used with a tracking generator and VB1032/VB1040.

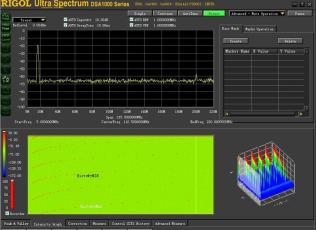

PC-based analysis and control tool for spectrum analysis with tracking display, marker functions, history spectrum, amplitude correction and export to common file formats.

Rack mounting kit for 19" rack

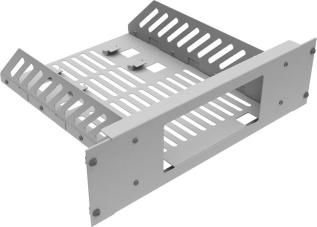

Rack mounting kit for mounting Rigol MD series multimeters in a 19" rack

Software for logging measurement data with the Rigol DM3058 and DM3058E. Compatible with Windows XP (32-bit), Vista (32-bit) and Windows 7 (32-bit)

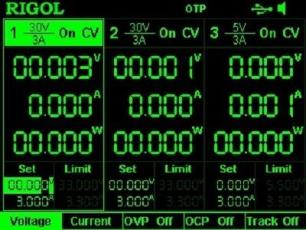

1mV & 1mA High-resolution option for the Rigol DP800 family of power supplies.

Add-on module with four digital inputs and outputs for external triggering and synchronisation in automated test and measurement systems for the DP800 series.

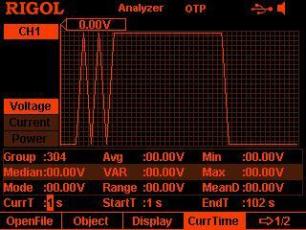

Real-time monitoring and analysis of output status, with user-defined conditions that can automatically stop or control the instrument’s operation.

16Mpts memory option for Rigol arbitrary waveform generators in the DG1000Z series.

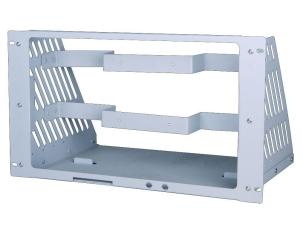

Rack mounting kit for a DS1000Z series oscilloscope and DG4000 series generators.

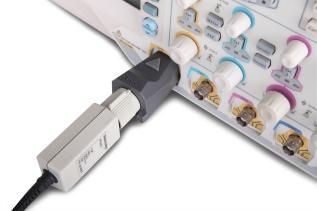

Adapter enabling the use of TekProbe-BNC Level II probes with RIGOL oscilloscopes, with power supply, calibration and DC offset adjustment via the instrument.

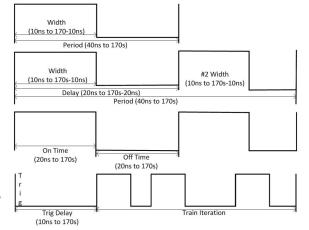

Powerful pulse modulation function; provides optional pulse generator

Powerful pulse modulation function; provides an optional pulse generator. The DSG800-PUM option will be installed automatically once this option has been installed.

High-stability reference clock

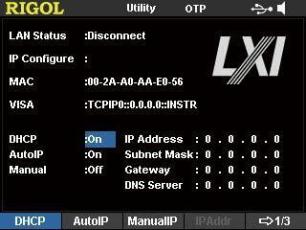

RS-232 and LAN interface options for the DP800 Family

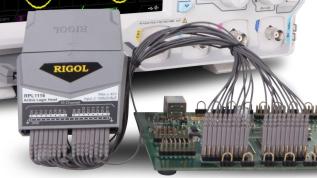

Upgrade kit for the DS1000Z Plus oscilloscope, enabling MSO functions with 16 digital channels, 1 GSa/s sampling rate and included logic analysis probe

Software option that increases the resolution to 1 mV and 1 mA for the DP700 series power supply via licence activation.

Software option that enables an external trigger input and internal trigger output for synchronous control of channel outputs in the DP700 series power supplies.

Software option that enables time-controlled sequencing of voltage and current with storage of timer parameters in internal memory for the DP700 series.

RS232 cable, female to female, 150cm.

Rack Mount Kit designed to mount a single RIGOL DP700 series programmable linear DC power supply in a 19-inch rack

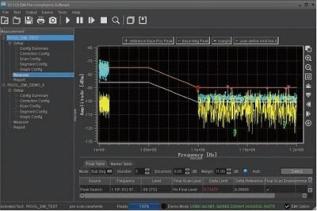

For conducted and radiated measurements with the DSA series, featuring segment scanning, limit lines, peak detection, amplitude correction, report generation and demo mode.

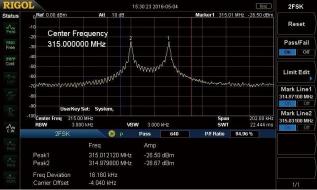

Enables seamless signal capture mode for analysis of 2FSK signals, such as those from remote controls and car keys, on DSA700 series spectrum analyzers.

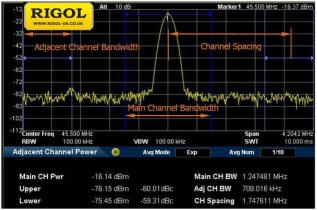

Enables advanced RF measurements such as time-domain power, channel power, ACP, occupied and emission bandwidth, C/N ratio, harmonic distortion and TOI for the DSA800 series.

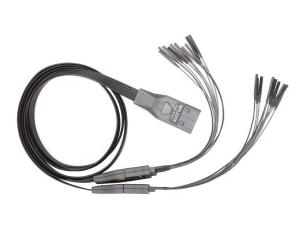

Logic analysis probe set for the MSO2000A and MSO4000 series mixed-signal oscilloscopes, including active logic head, data cables, clamps and carrying case.

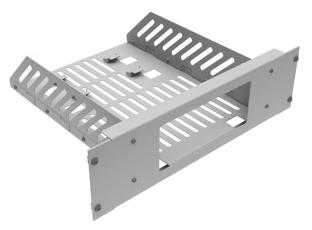

Rack-mount kit for a single Rigol DG1000Z series function/arbitrary waveform generator or a single Rigol DSG800 series RF signal generator.

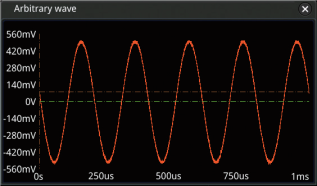

Licence for advanced editing and generation of arbitrary waveforms via PC for DG series function generators and oscilloscopes with built-in generator.

Preamplifier option for the RSA5000 series real-time spectrum analyzers.

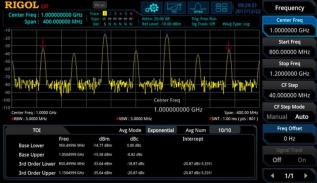

Advanced measurement kit option for the RSA5000 series real-time spectrum analyzers.

40 MHz real-time bandwidth option for the RSA5000 series real-time spectrum analyzers. The RSA5000s come as standard with 25 MHz real-time bandwidth

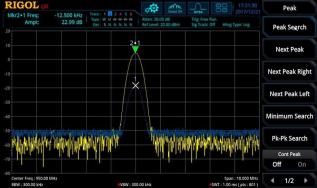

This is an optional pre-amplifier for the Rigol RSA3000 spectrum analyzer.

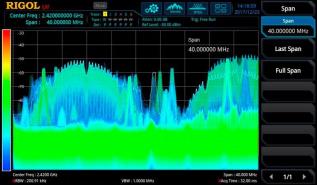

RSA3000 Optional real-time analysis Bandwidth extended to 25 MHz.

RSA3000 Optional real-time analysis Bandwidth extended to 40 MHz.

Upgrade for Rigol RSA3000 Series Spectrum Analyzer

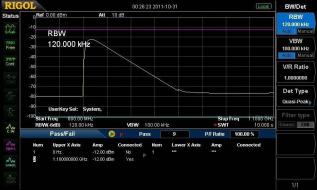

The RSA3000-EMC option provides a Quasi-Peak detector and EMC filter.

Extend the Swept RBW down to 1 Hz.

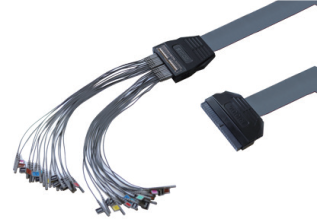

16-channel digital active logic probe (dedicated probe for the MSO5000 series)

Rack Mount Kit for MSO5000 Oscilloscopes

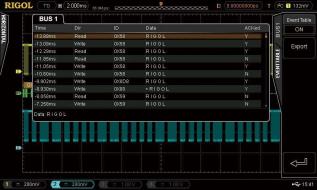

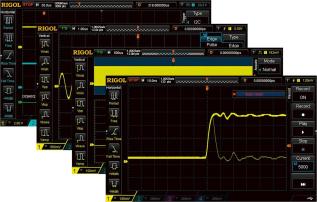

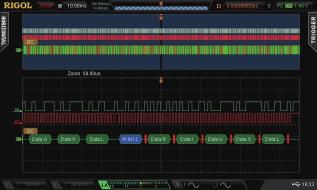

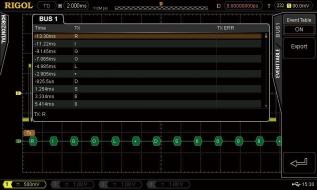

Enables all available signal decoding, analysis and function options for the MSO5000 series oscilloscopes.

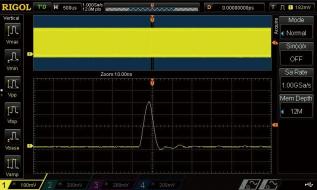

Optional 200 Mpts memory for MSO5000 series units. Easy activation via software code (the memory is already built-in).

Software option for the RSA5000 series that enables advanced analysis and demodulation of RF signals such as QAM, QPSK, ASK and FSK.

EMI module for RSA3000 series with CISPR detectors, automatic segment scanning, limit analysis and report generation for pre-compliance testing.

EMI module for RSA5000 series with CISPR bandwidths, automatic segment scanning, multiple detectors and report generation for pre-compliance testing.

Option bundle for the MSO8000 series that enables all serial decoding functions, power analysis, jitter analysis and the integrated waveform generator.

Upgrade licence that increases the memory depth to 100 Mpts for oscilloscopes in the DHO1000 series.

Licence for bandwidth upgrade from 70 MHz to 200 MHz for the DHO1072 and DHO1074 models.

Licence for bandwidth upgrade from 70 MHz to 100 MHz for models DHO1072 and DHO1074.

Licence for bandwidth upgrade from 100 MHz to 200 MHz for models DHO1102 and DHO1104.

Designed to mount the RIGOL DP800 series of programmable linear DC power supplies in a 19-inch rack

Bandwidth upgrade licence from 200 MHz to 400 MHz for the DHO4000 series

Bandwidth upgrade licence from 200 MHz to 800 MHz for the DHO4000 series

Bandwidth upgrade licence from 400 MHz to 800 MHz for the DHO4000 series

Upgrade licence for deep memory to 500 MPts for the DHO4000 series

Package with serial decoding for CAN-FD/LIN, FlexRay, MIL-STD-1553 and I2S, as well as power analysis for the DHO4000 series.

Real-time Eye/Jitter Analysis (DS70000-JITTA)
