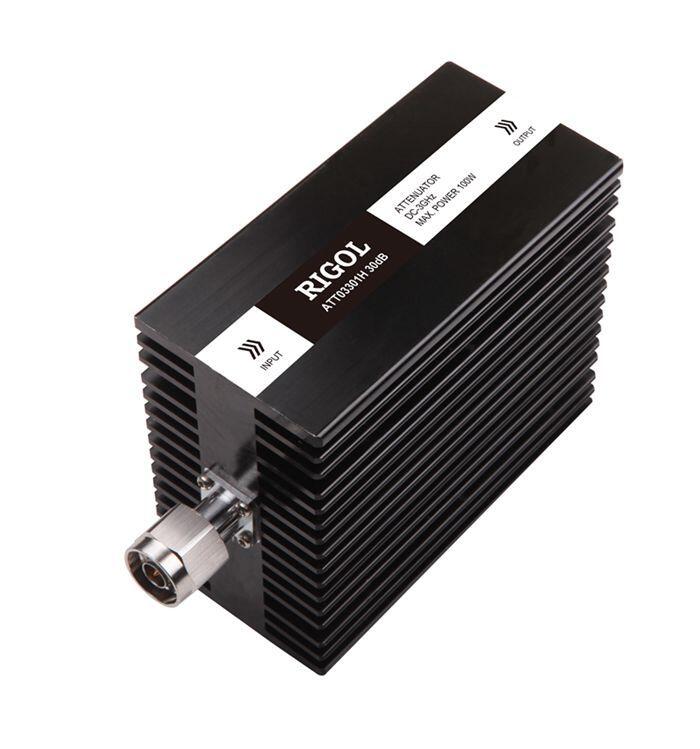

This high power attenuator coaxial load adopts the aluminium nitride resistor and lead-free technique.
Its connector conforms to the MIL-C-39012 standard.
This product features high precision and long service life; and is innocuous and environment-friendly.
The attenuator can be used in various tests and terminal matching; for example, the test adjustment of power amplifier as well as the splitter and coupling terminals matching.
Impedance: 50 Ω
Frequency Range: DC to 3 GHz
Max. VSWR: 1.25
Power: 100 W
Temperature range: -55℃ to +125℃
Attenuation: 30 dB
Insertion Loss: ±1 dB
