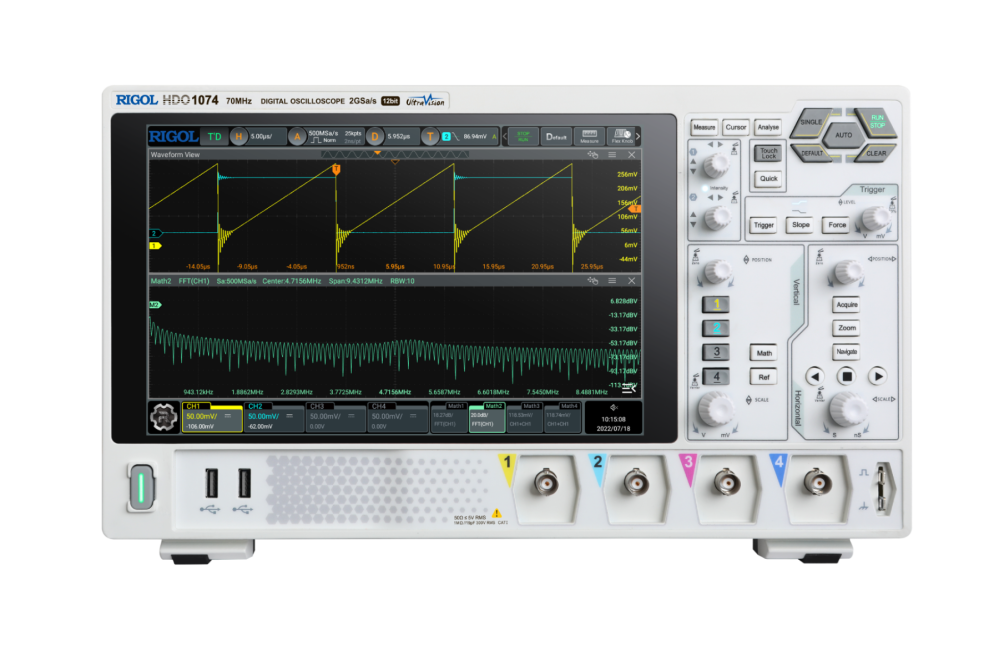

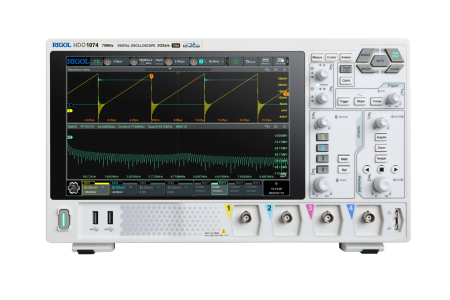

Rigol DHO1074 Oscilloscope

Licence for bandwidth upgrade from 100 MHz to 200 MHz for models DHO1102 and DHO1104.

Licence for bandwidth upgrade from 70 MHz to 100 MHz for models DHO1072 and DHO1074.

Licence for bandwidth upgrade from 70 MHz to 200 MHz for the DHO1072 and DHO1074 models.

Upgrade licence that increases the memory depth to 100 Mpts for oscilloscopes in the DHO1000 series.

DC–100 MHz bandwidth, up to 7000 Vpp, high-voltage differential measurement for oscilloscopes and BNC output.

DC–25 MHz bandwidth, up to 1400 Vpp, high-voltage differential measurement for oscilloscopes and BNC output.

DC–100 MHz bandwidth, up to 50 A peak, high-frequency current measurement for oscilloscopes and operation via external RP1000P power supply.

Switchable 10:1 or 1:1, 150 MHz bandwidth at 10:1 and 35 MHz at 1:1, max 300 V DC + AC peak (10:1) or 150 V (1:1).

10:1 attenuation, 500 MHz bandwidth, 10 MΩ input impedance, 13 pF capacitance and max 300 V DC + AC peak.

AC/DC current probe, DC–10 MHz bandwidth, 150 A RMS, 300 A peak (500 A ≤30 µs), requires RP1000P power supply and is compatible with Rigol oscilloscopes.

DC–50 MHz bandwidth, up to 7000 Vpp, selectable attenuations ×100/×200/×500/×1000, high CMRR and BNC output for oscilloscopes.

Passive 1000:1 high-voltage probe, DC–150 MHz bandwidth, 200 MΩ input impedance (1.5 pF), up to 18 kV CAT II and 12 kV CAT III.

Passive 1000:1 high-voltage probe, DC–40 MHz bandwidth, 100 MΩ input impedance (3 pF), up to 10 kV DC and 7 kV RMS.

Passive 100:1 high-voltage probe, DC–300 MHz bandwidth, 100 MΩ input impedance, up to 2000 V CAT I and 1500 V CAT II.

Power supply for up to four current probes in the RP1000 series with a 12 V output, designed for the RP1003C, RP1004C, RP1005C and RP1006C models.

AC/DC current probe with Hall-effect sensor, DC–50 MHz bandwidth, 0–30 A linear range, 0.1 V/A output, 50 A peak current and 300 V CAT I.

AC/DC measurement up to 70 A peak, DC–1 MHz bandwidth, BNC output, for conductors up to 11 mm, and battery or mains adapter operation.

AC/DC measurement up to 100 A peak (70 A RMS), DC–300 kHz bandwidth, BNC output, for conductors up to 11 mm, and battery or mains adapter operation.
