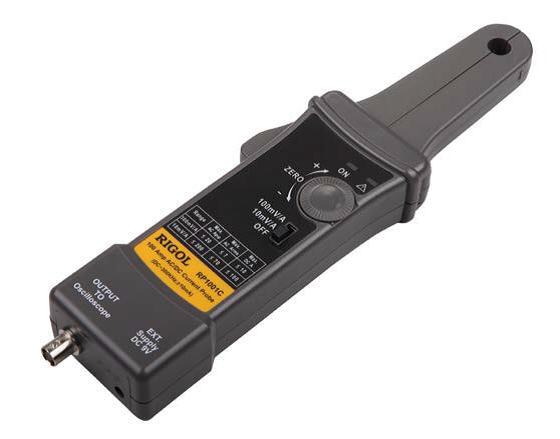

Rigol RP1001C Current Probe

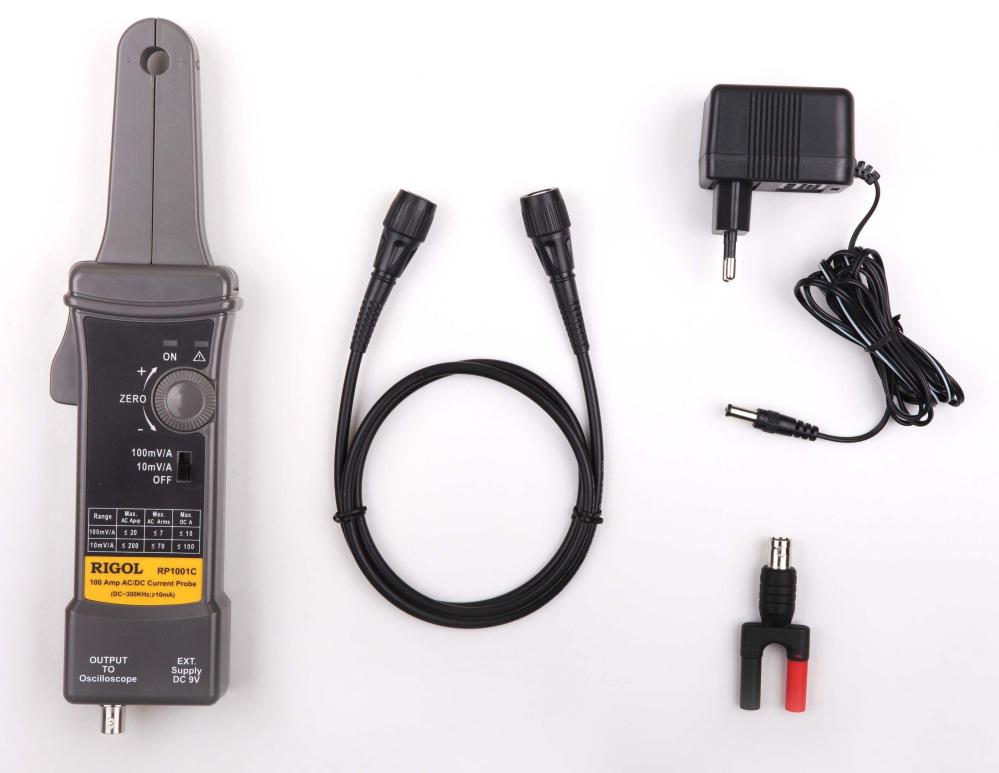

AC/DC measurement up to 100 A peak (70 A RMS), DC–300 kHz bandwidth, BNC output, for conductors up to 11 mm, and battery or mains adapter operation.
The RP1001C current probe enables a general purpose oscilloscope to display AC and DC current signals upp too 100A Peak (70A RMS).
The RP1001C current probe can also make AC and DC measurments with a multimeter by using the BNC-to-banana plug adapter.
Documents
Product information
-
Art.no
72182
