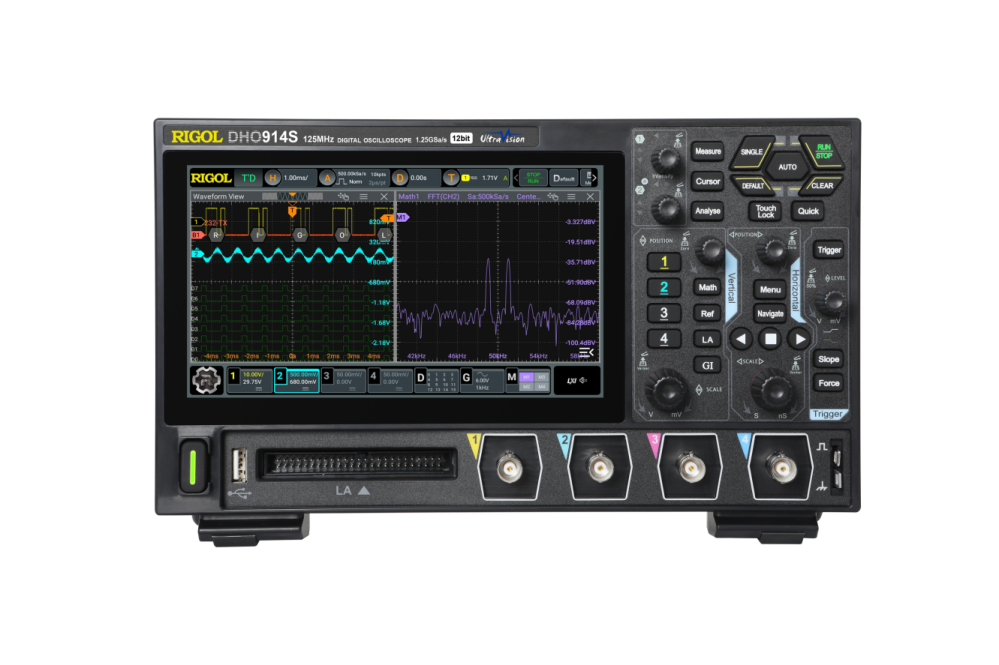

Rigol DHO914S Oscilloscope

4-channel oscilloscope with 125 MHz bandwidth, 12-bit resolution, 1.25 GSa/s sampling rate, 50 Mpts memory depth and built-in function generator.

7 070 SEK

Ultra-low noise floor, purer signal, never miss the small signals
Up to 12 bits resolution for all the models of this series
Max. analog bandwidth of 250 MHz, 4 analog channels
16 digital channels (std.), logic probe required to be purchased if needed
Max. real-time sample rate of 1.25 GSa/s
Max. memory depth of 50 Mpts
• Vertical sensitivity range: 200 μV/div to 10 V/div
Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
Digital phosphor display with real-time 256-level intensity grading
Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc. (Only S Models)
Waveform search and navigation function allows you to debug the signal anomalies faster
7" (1024x600) capacitive multi-touch screen
Brand new Flex Knob brings user-friendly experience
USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
Novel and delicate industrial design, easy to operate
Unique online upgrade
1 ch. arbitrary function generator
Power Supply Interface Type-C

The DHO900 series is RIGOL's new launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and low noise.

The DHO900 series supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields
