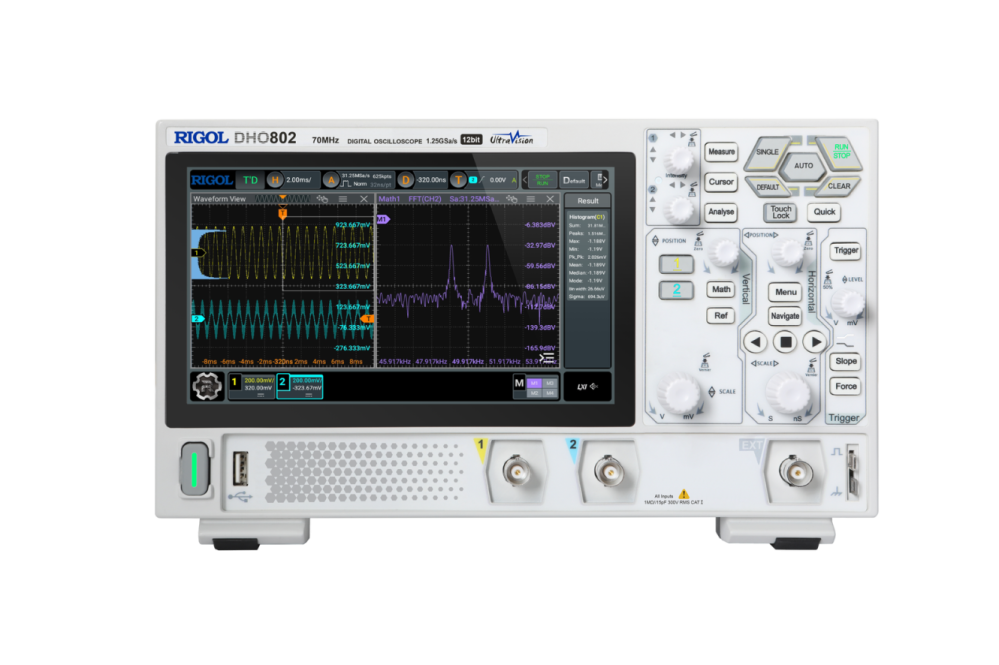

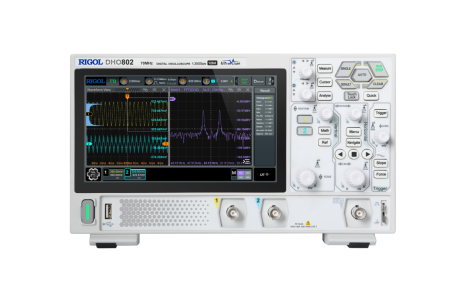

Rigol DHO802 Oscilloscope

2-channel, with EXT input. 70 MHz bandwidth, up to 1.25 GSa/s, 25 Mpts memory, 12-bit resolution and USB/LAN/HDMI.

3 700 SEK

Ultra-low noise floor, purer signal, never miss the small signals
Up to 12 bits resolution for all the models of this series
Max. analog bandwidth of 100 MHz, 4 analog channels, external trigger output (std.) available
for the dual-channel model
Max. real-time sample rate of 1.25 GSa/s
Max. memory depth of 25 Mpts
Vertical sensitivity range: 500 μV/div to 10 V/div
Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
Digital phosphor display with real-time 256-level intensity grading
Waveform search and navigation function allows you to debug the signal anomalies faster
7" (1024x600) capacitive multi-touch screen
Brand new Flex Knob brings user-friendly experience
USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
Novel and delicate industrial design, easy to operate
Unique online upgrade

The DHO800 series is RIGOL's new launched high-performance economical digital oscilloscope.

Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise.

The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.
