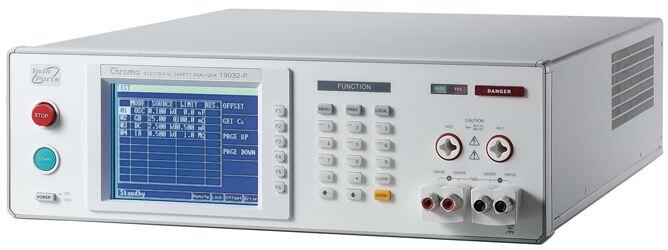

Chroma 19032-P Electrical Safety Tester

AC/DC/IR/GB/LC and dynamic function in a single instrument. Test current up to 20 A, RS232 and support for multi-scan in automated safety tests.

77 970 SEK

Chroma 19032

  • Five test functions in one instrument: ACWV, DCWV, IR, GB and LC
  • Function testing up to 20 A
  • Programmable test voltage and limit values
  • Open/Short Check (OSC) function
  • Flashover detection
  • Operator protection circuit
  • Support for dynamic leakage current testing with a Multi-Scan unit
  • RS232 interface as standard
  • Optional GPIB interface
  • Large LCD display
  • Front panel lockout function
  • Support for PC software
  • CE marking



Chroma 19032-P

  • 500 VA output power
  • AC test current up to 100 mA
  • Ground bond testing up to 40 A
  • Floating output compliant with EN 50191
  • USB interface with USB TMC support
  • GFI operator protection circuit
  • CE marking

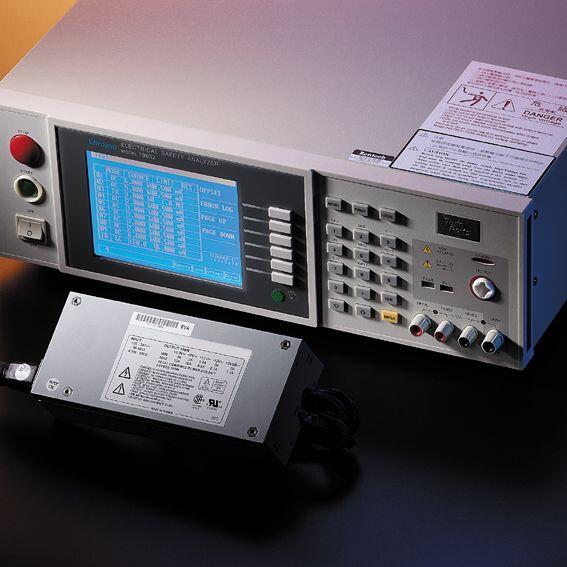

Electrical safety testing is an important part of quality control for electrical products. Products such as adapters, switched-mode power supplies (SMPS), chargers, household appliances, IT equipment and video equipment require electrical safety testing.

The Chroma 19032 series combines high-voltage withstand testing (Hipot), insulation resistance measurement (IR), ground bond testing (GB), leakage current testing (LC/AC LC/DC LC) and dynamic function testing in one instrument series.

By combining multiple test functions in a single instrument, the need for separate test equipment can be reduced. According to Chroma, this can save up to 50% of production line space, improve electrical safety testing efficiency and reduce associated labour costs.

The series is used for testing power cords, power supplies, LED drivers, household appliances, IT equipment, medical equipment, electric vehicles and solar PV inverters.

For complete technical specifications and information on available accessories for Chroma 19032 and 19032-P, please refer to the datasheet.
