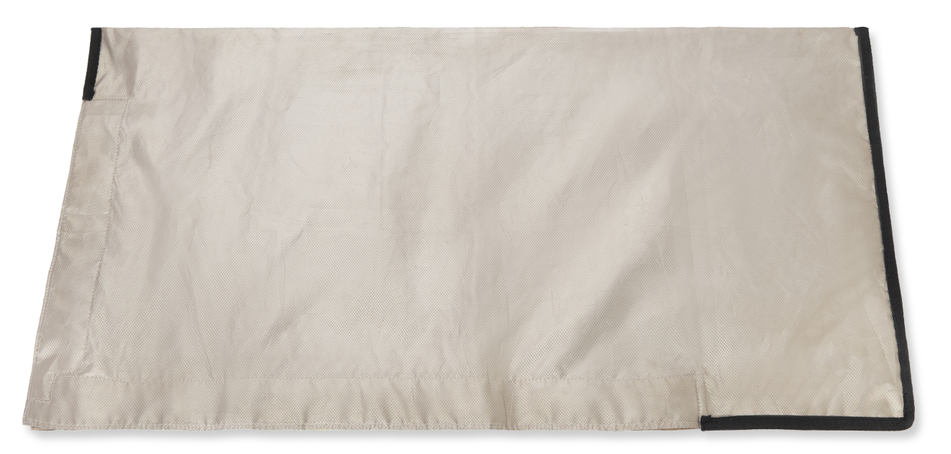

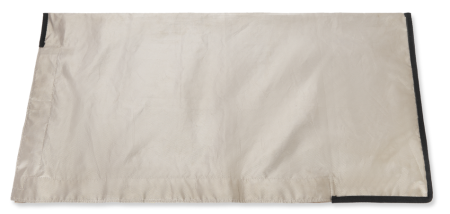

Tekbox TBSB-105/60 Shielded Bag

105 × 60 cm with two layers of conductive fabric and ~50 dB attenuation DC–2 GHz for EMC pre-compliance and interference reduction during measurements.

4 370 SEK

The TBSB series of shielded cases are designed to suppress interference from ambient noise when performing EMC pre-compliance measurements.

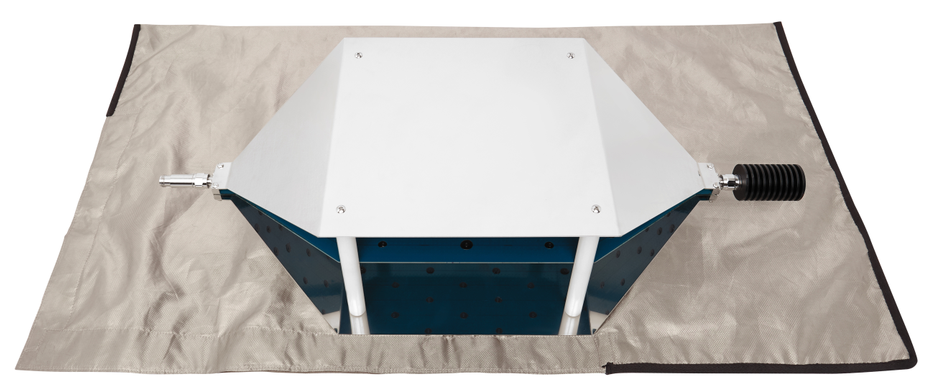

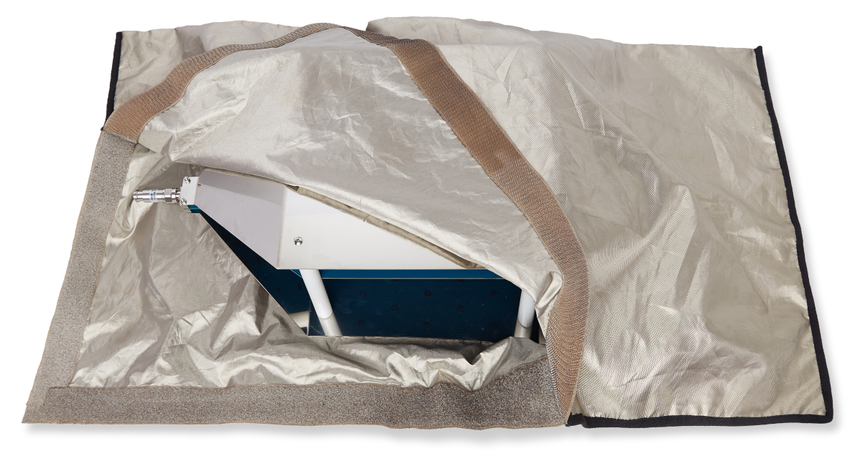

The shielded bags are an inexpensive alternative to shielded tents for test equipment such as LISN or TEM cells.

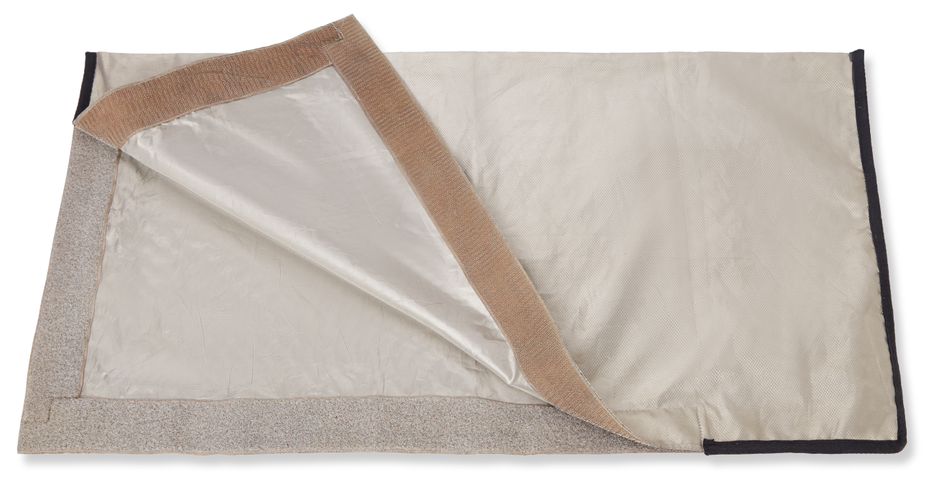

The shielded bags are composed of two layers of conductive fabrics. The access opening is sealed with conductive Velcro.

Suggestions on how to feed cables into the bags can be found in the application section of this manual.
  • Outer dimensions: 105 cm x 60 cm
  • Opening dimensions: diagonal 75 cm
  • Frame: none
  • Shielding: 2 layers of conductive fabrics
  • Sealing: conductive velcro
  • Filter panel: none
  • Attenuation: ~ 50 dB in the DC to 2 GHz range
  • Weight: 250 g.

Product information

  • Art.no

    71783
