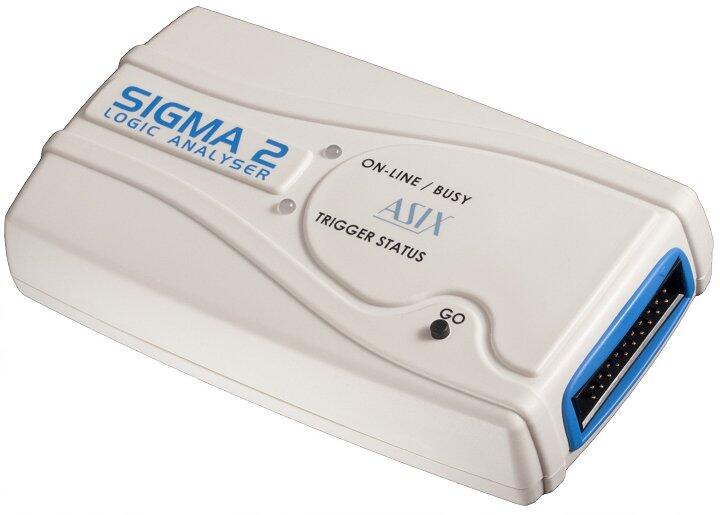

Asix Sigma2 Logikanalysator 16 inputs / 50 MSPS, 8 inputs / 100 MSPS, USB 2.0 Full Speed (12 Mbps), 14.7 million samples

Art. nr: 70525
2 590 kr

Antal




Produktbeskrivning

SIGMA2 är en kraftfull, snabb, flexibel, användarvänlig och prisvärd logikanalysator med extraordinärt stort minne, real-tids hårdvarukompression och komplex triggerlogik.



SIGMA2 används via USB porten och kräver ingen extern strömförsörjning.

  • Extremely large event memory (256 megabit = over 14 millions samples)
  • Real-time hardware data compression
  • Up to 200 MHz sample speed
  • Up to 16 inputs Windows and Linux
  • Flexible trigger options
  • "Logic probe" mode
  • Controlled and powered by USB (Full-Speed, 12 Mbps)
  • Advanced software (for Windows and Linux)

 Paketet innehåller:

  • SIGMA2 logic analyzer

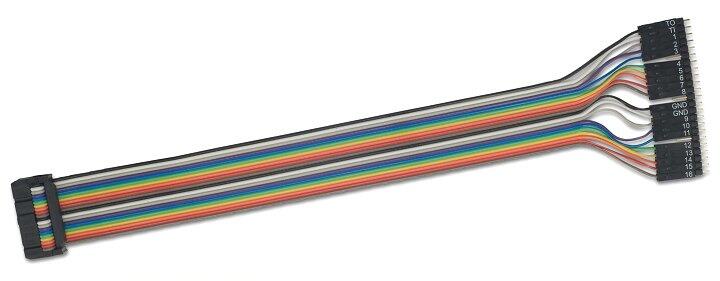

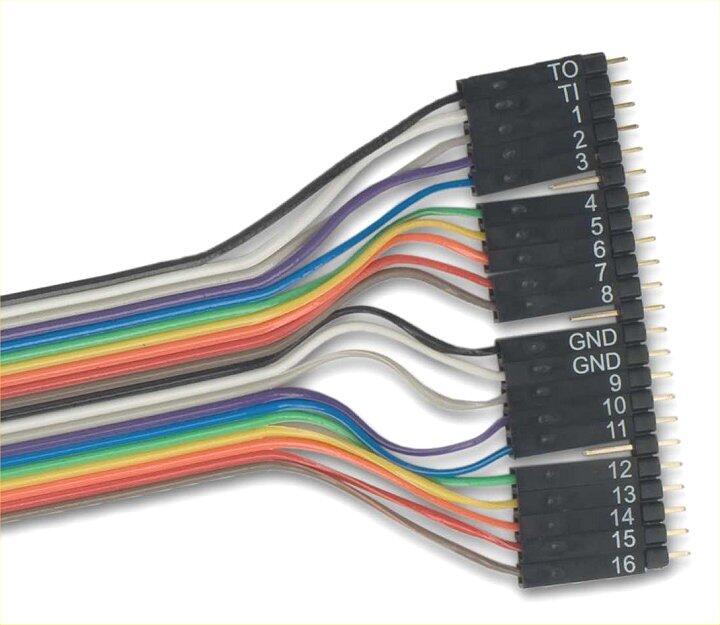

  • Target cables

- flying wires

- 20-pin header (16 channels)

- 10-pin header (8 and 4 channels)

  • USB cable (A-B)
  • ASIX CD-ROM with documentation, drivers and software
  • User's Manual


Mer information

SIGMA2 has been designed with most important real-life user requirements in mind:
  • Extremely large event memory
  • 256 Megabit SDRAM memory is used and further enhanced using a real-time hardware compression which allows for 14 680 064 sample storage or for more than 45 minutes of recording.
Flexible input/sample speed options
  • 16 inputs at 50 MHz (and lower sample speed, division by 2 ... 256)
  • 8 inputs at 100 MHz
  • 4 inputs at 200 MHz
  • 16 inputs - sampling on change of an input signal (asynchronous clock) - trailing, falling or both edges, max. clock speed is 40 MHz at 1:1 duty
  • 15 inputs + 1 synchronous clock input (trailing or falling edge), max. clock speed is 49.9 MHz
Complex trigger logic
  • Many various triggering options in the 16 inputs/50 MHz mode:
  • Any value or edge on any input condition
  • Defined duration of the condition ("longer than" and/or "shorter than")
  • Sequence of two different conditions
  • 16-bit counter - triggering after N-th occurence of the condition
  • Extensive condition definition options using logical functions (N)AND,(N)OR,(N)XOR

Standard triggering options in the 8 inputs/100 MHz and 4 inputs/200 MHz modes - triggering on the input signal edge.

Trigger point can be placed to any position of recorded events from the very beginning to the end.

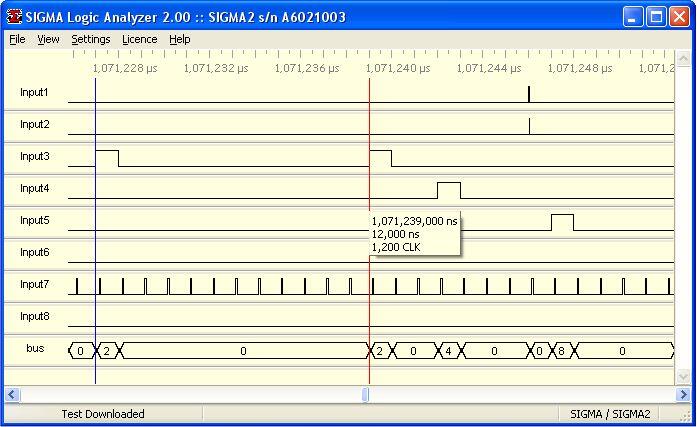

Advanced software

Ready for plugins - both ASIX and user definable, e.g. protocol analyzers (like I2C, SPI, UART, SDRAM, Full-Speed and Low-Speed USB, ...).

Ready for easy multi-language support (not applicable for plugins).

Waveforms can be saved and loaded to a computer hard disc.

Waveforms can be exported to a text file for further processing.

Waveforms can be printed on a printer.

Flexible trace definition (any combination of input signals and constant logic levels) and trace representation (signals, buses - binary, octal, decimal, hexadecimal, ASCII). Input signal can be used in more than one trace.

Free protocol analyzers: UART, I2C and SPI. USB protocol analyzer (Low-Speed and Full-Speed) can be purchased separately.

Flexible control using mouse and keyboard.

User-friendly device

  • Easy connection to PC - the comfortable USB interface.
  • Low power - no power supply adaptor needed.
  • Logic probe mode - SIGMA2 displays momentary logic levels on all 16 inputs.
  • Detailed LED indication for instant and intuitive status checking.
  • Fast operation - less than 1 second delay for any selected view. (Full data download takes about 90 seconds).
  • Input threshold level is suitable for TTL, LVTTL and 2.7 to 5.5V CMOS levels
  • Replaceable input buffers - DIP parts in socket allow for easy replacement, if ... (you know well what happens to any electronic designer sometimes :-)
  • Upgradability - due to flexible design based on Xilinx FPGAs it will be possible to upgrade and enhance SIGMA2 functionality by simple software update (e.g. frequency, period and duty cycle measurement)
  • Small, lightweight and compact.

More than logic analyzer

Additional debugging features will be available by software upgrades and add-on modules.
Existing software utilities for SIGMA2:
Frequency measurement - four independent channels with filtering and averaging







Relaterade

Asix PicoHook10 	Set of 10 miniature colored test hooks for SIGMA2/SIGMA
70313
Asix PicoHook10 Set of 10 miniature colored test hooks for SIGMA2/SIGMA
A set of 10 miniature test hooks (2,54 mm = 0,1" width). The...


Rekommenderas

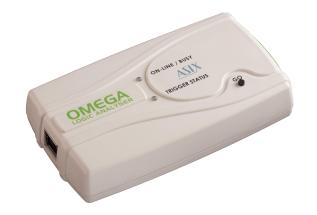

Asix Omega Logikanalysator 16 inputs / 200 MSPS, 8 inputs / 400 MSPS, USB 2.0 High Speed (480 Mbps), 29.8 million samples
