SRS PERF10 Rubidium Frequency Standard For Audio
10 MHz rubidium frequency standard with eight 75 Ω outputs, low phase noise, high stability and option for external reference and redundant power.

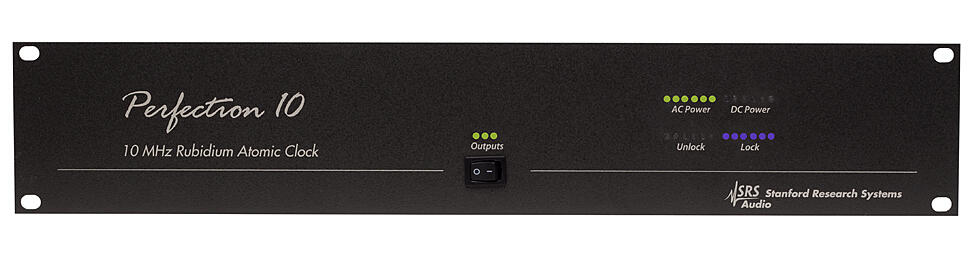

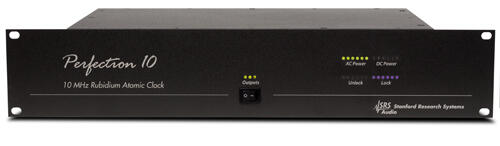

We are pleased to announce the Perfection-10, a new 10MHz Rubidium atomic clock for audio/video professionals and demanding audiophiles. Designed by Stanford Research Systems (SRS), the Perfection-10 offers class leading performance at new low price point.
- Atomic stability and accuracy
- Eight 10 MHz, 75 Ω outputs
- ±0.05 ppb accuracy
- 10 year aging less than 5 ppb
- Ultra-low phase noise (<-155 dBc/Hz @ 10 kHz)
- Compatible with any device that accepts a 10 MHz input (including AntelopeTM and dCSTM equipment)
- Optional 12 VDC redundant power input with automatic switchover
The price include all shipping costs and import duties into the Baltic and Scandinavian countries within EU.
Perfection is a high standard - but your studio clocks deserve nothing less. That's why we designed the PERF10, to offer audio professionals and demanding audiophiles a frequency reference of staggering accuracy and unmatched stability.
Up until now, atomic clocks marketed for audio use have been designed around commercial off-the-shelf rubidium clocks designed for the communications market-not audio. And while these rubidium clocks may have good long-term stability, they were never designed to provide low short-term jitter.
The PERF10 is built around Stanford Research Systems' own PRS10 rubidium oscillator. By designing and building the oscillators ourselves, we're able to craft an instrument perfectly matched to the demanding requirements of audio master clocks.
Starting with an oven stabilized, 3rd overtone, varactor tuned, SC-cut crystal oscillator, the PERF10 offers both the accuracy and stability associated with rubidium clocks and unmatched jitter performance - 30 db better phase noise at 10 Hz off carrier than a competing "Swiss-made" rubidium clock.

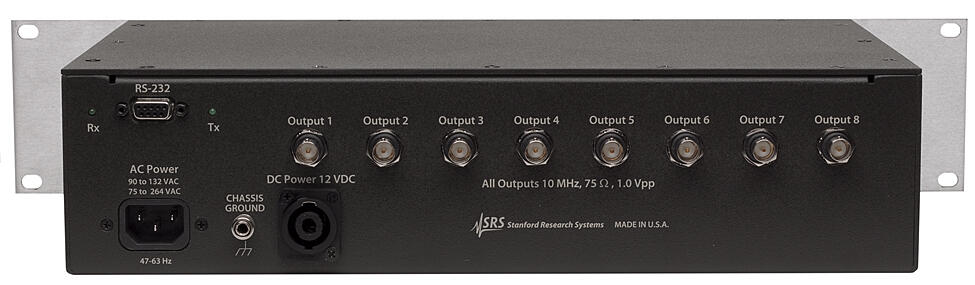

PERF10 has eight 10 MHz, 75 Ω outputs compatible with all master clocks that accept a 10 MHz reference input.
Option 01 allows the unit to be powered from an external 12 VDC power source. When equipped with Option 01 PERF10 can be powered solely from an 12 VDC source, or the DC and AC power sources can be connected simultaneously with the DC supply providing an automatically switched redundant power source in the event of an AC failure.
