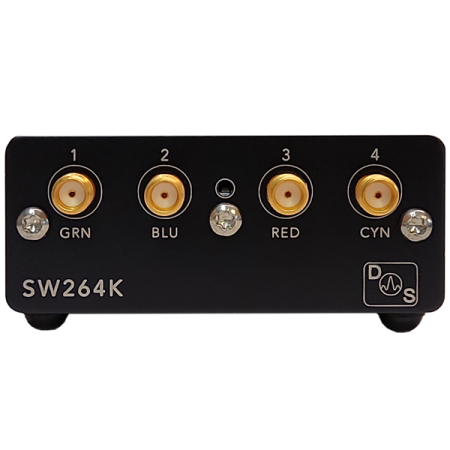

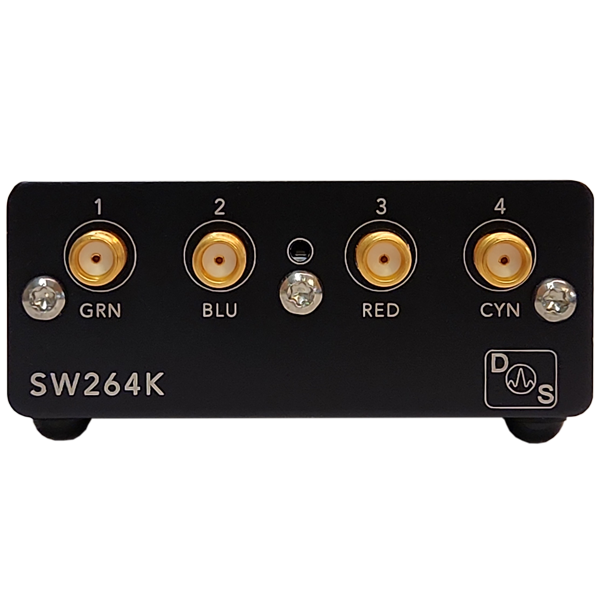

DS Instrument’s new SW264K 4-Way solid-state RF switch is powered via USB and controlled using a rear pushbutton switch, or via SCPI commands over the virtual COM port. Status LEDs and audible feedback make this device extremely user friendly for stand-alone usage and remote scripted operation. This non-reflective ultra-wideband SP4T switch is perfect for X and Ku-band automated test setups. Fast switching time and an affordable price point make this the best low-power switch on the market today. No special drivers are needed to send serial commands from any operating system or host device.
- Super-wideband 1 – 26GHz frequency range
- Non-reflective design
- 4 switched, 1 common premium gold SMA ports
- Max RF input power (through) : +26 dBm (0.4W)
- Max RF input power (hot-switching): +22 dBm
- Low insertion loss (5dB Typical, 8dB max)
- Solid-state reliability and speed
- Bi-directional topology
- Fast switching time
- Superior isolation (>35dB)
- LED port status indication
- Impedance: 50 Ohm
- USB type-C powered and controlled
- Standard Ethernet connection
Common Applications:
- Automated testing environments
- General RF Lab use
- Production verification
- Educational / university lab use
- Aerospace / Defense Research
- Communications Development
