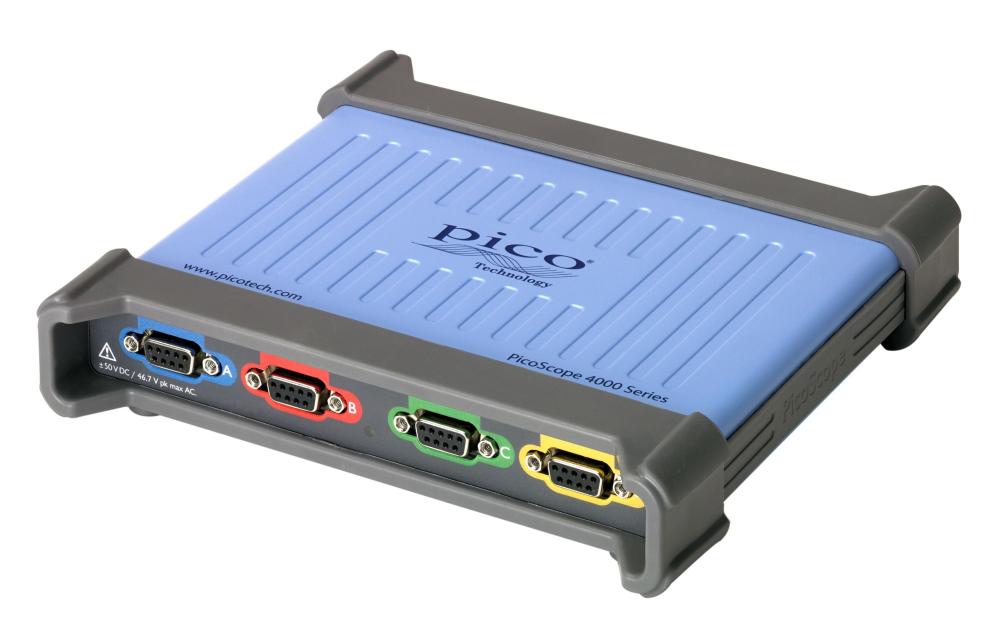

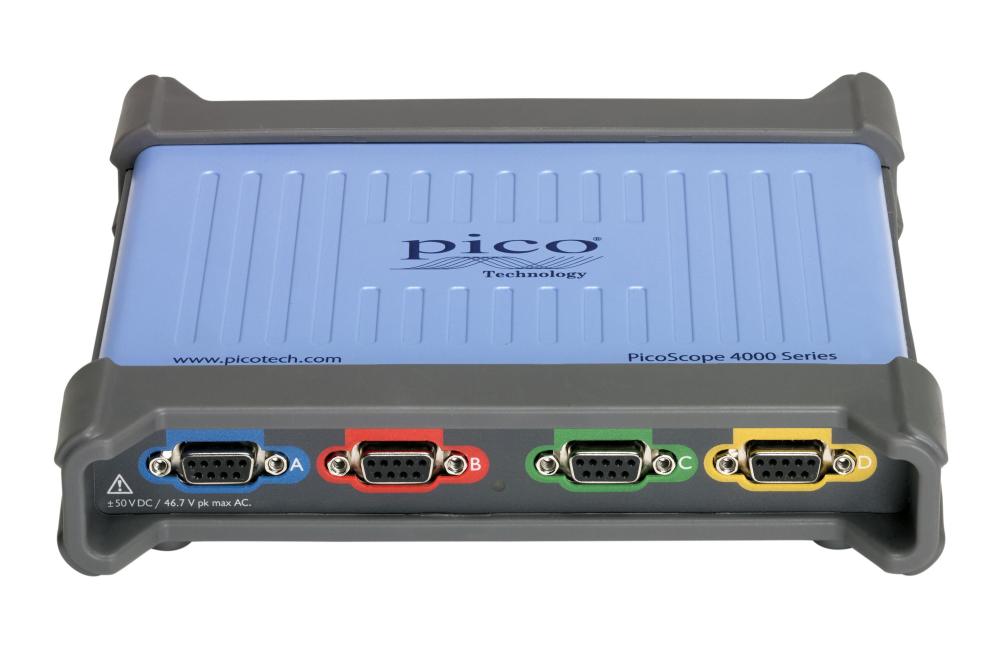

PicoScope 4444 USB Differentialoscilloskop i CAT-III-kit med 4 äkta differentialingångar och hög upplösning

Art. nr: 71168
16 820 kr

Antal




Produktbeskrivning

  • Kit for 1000 V CAT III applications

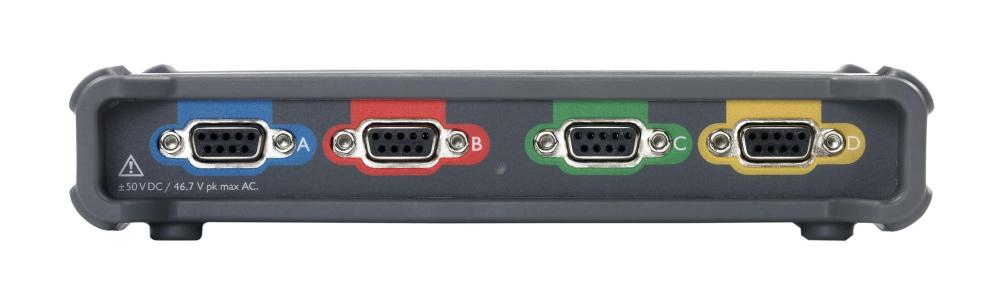

  • 4 true differential inputs
  • Flexible 12- or 14-bit resolution
  • 20MHz bandwidth
  • 256 MS capture memory
  • Detects, identifies and powers compatible probes
  • USB powered and highly portable for field use

With most oscilloscopes, just connecting to the signal of interest can be very frustrating when one of the connection points has to be grounded.



True differential measurements in high resolution
The PicoScope 4444's four inputs allow you to make true differential measurements.



The maximum input range at full scale is ±50 V (±1000 V CAT III using the PicoConnect 442 probe), and the maximum common-mode range is also ±50 V (also ±1000 V with the PicoConnect 442 probe).



You can set the scope to measure at resolutions of 12 or 14 bits, far better than the 8-bit resolution typical of many oscilloscopes.



The deep capture memory (up to 256 million samples shared by the active channels) is another advantage, allowing you to carry out long captures without lowering the sampling rate.



Connect directly to current-sensing resistors and differential signals, or across non-grounded components in a signalpath.



At the heart of every PicoScope 4444 is an advanced oscilloscope that offers everything you would expect and much more including:

  • 10 000 waveform circular buffer
  • Up to 100 000 waveforms per second update rate

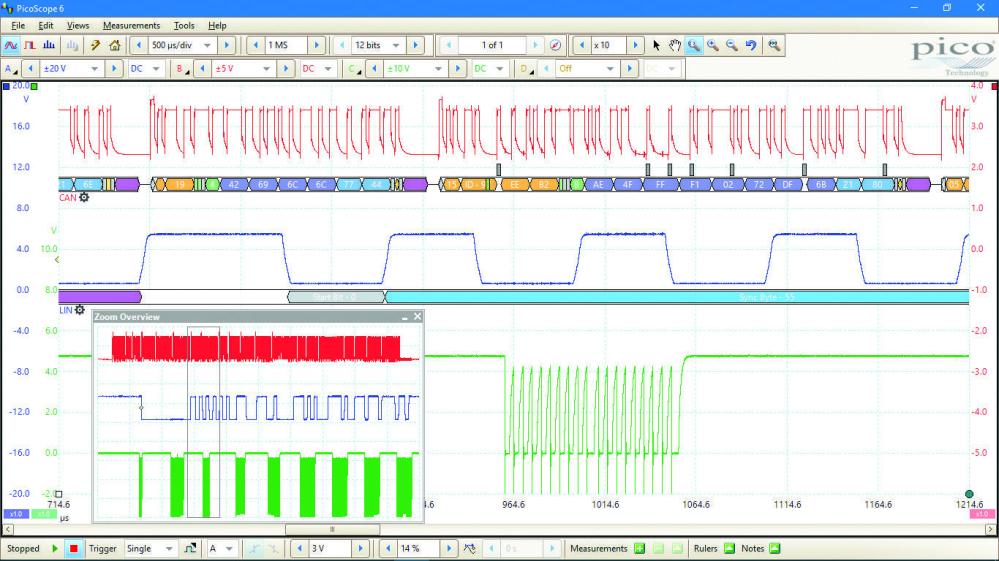

  • Serial bus decoding

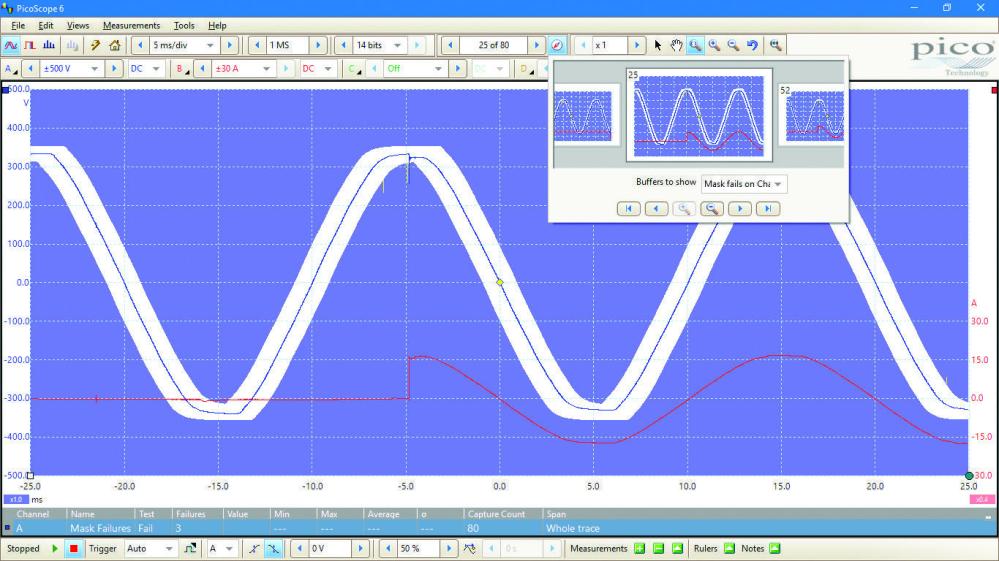

  • Mask limit testingA
  • dvanced math and filtering
  • Measurements with statistics
  • Advanced digital triggering
  • USB 3.0 connected and powered

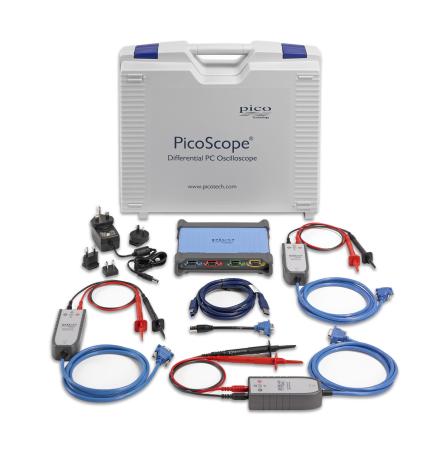

What´s in the box?:

High-resolution differential oscilloscope with three PicoConnect 442 1000V CATIII 25:1 passive differential voltage probes, one TA271 single-ended D9-BNC adaptor and a hard carry case.



Typical applications

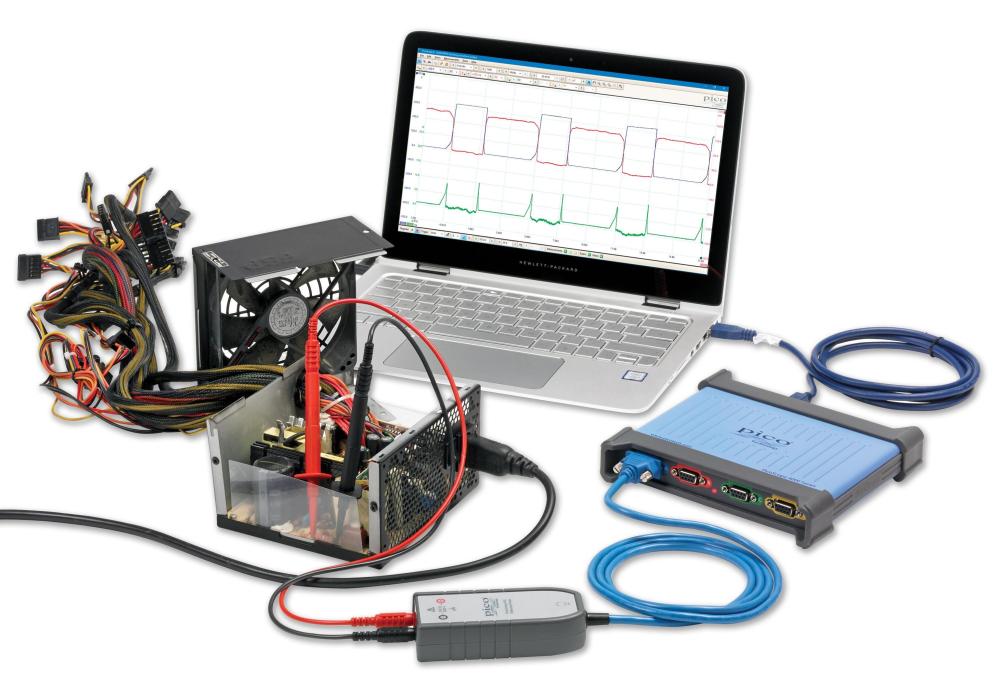

  • Safely probe single and 3-phase voltage and current

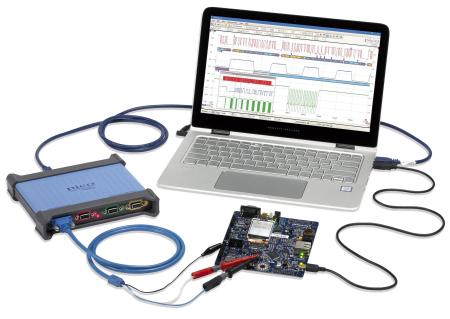

  • Measuring power drawn by mobile and IoT devices
  • Mains quality testing
  • SMPS design
  • Hybrid and electric vehicle design
  • Motor drives and inverters
  • Biomedical electronics
  • Measuring differential signals (CAN, balanced audio) with a single channel


Mer information

Just load the software, plug in the USB cable and you are up and running in minutes.

Saving and printing are easy: PicoScope users can take copying waveforms into reports for granted.



On the bench, a PicoScope saves valuable space and can be placed right by the unit under test.



Laptop users benefit even more: with no power supply required you can now carry an oscilloscope with you all the time in your laptop bag. Perfect for the engineer on the move.



With our scopes, high-end features such as serial decoding, mask limit testing, advanced math channels and segmented memory are all included in the price.



To protect your investment, both the PC software and firmware inside the scope can be updated.

Pico has a 26-year history of providing new features for free through software downloads.




Relaterade

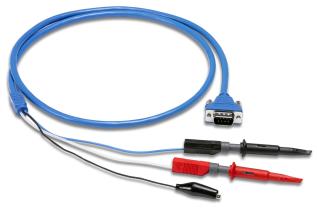

PicoConnect 441 Differential probe with 1:1 voltage ratio and 15 MHz bandwidth
