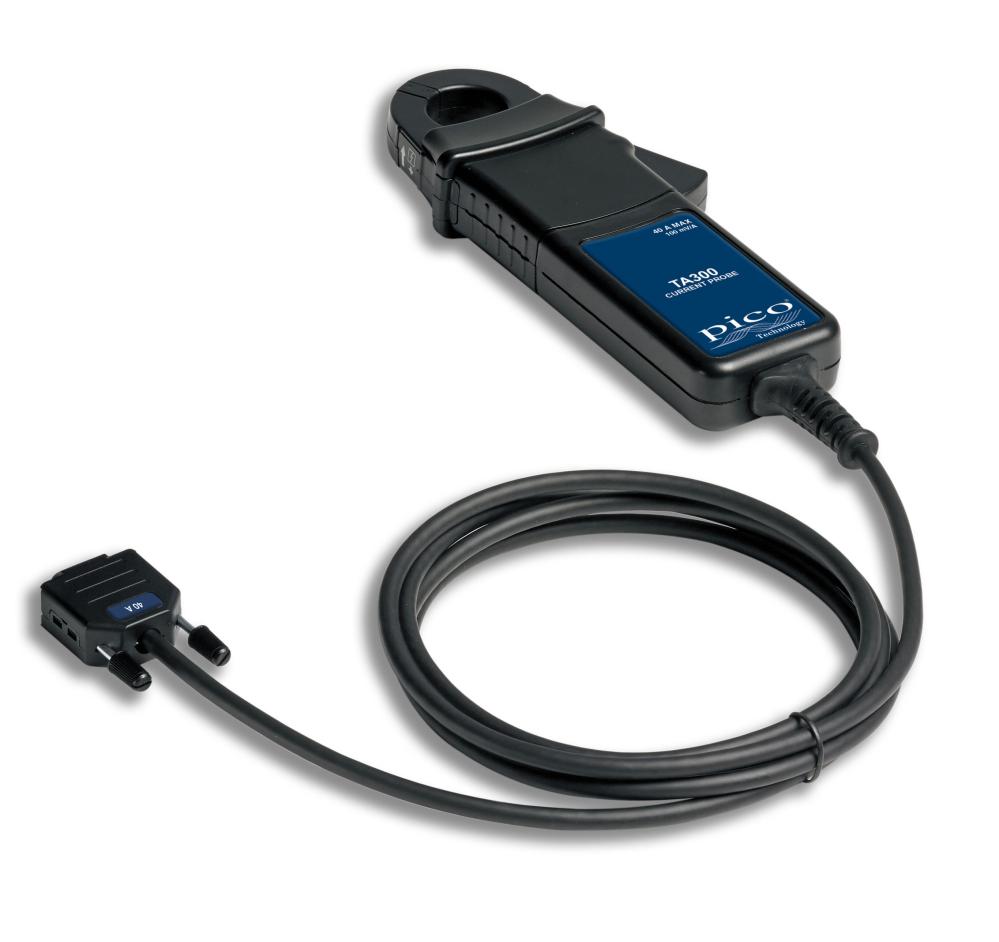

Pico TA300 40 A AC/DC current probe, D9 connector to the PicoScope 4444 differential oscilloscope
Bilder
  • Pico TA300 40 A AC/DC current probe, D9 connector to the PicoScope 4444 differential oscilloscope

Pico TA300 40 A AC/DC current probe, D9 connector to the PicoScope 4444 differential oscilloscope

Art. nr: 71784
3 630 kr

Antal




Produktbeskrivning

TA300 är en 100 kHz bandbredd, 40 A växelströms- eller likströmsprob med ett intervall på 100 kHz som använder D9-kontakten som är specifik för PicoScope 4444 differentialoscilloskop.



Vid anslutning till skopet avkänns proben omedelbart och det vertikala området ställs in automatiskt i PicoScope-mjukvaran.



Proben drivs också av skopet via D9-kontakten.



Electrical data (All accuracies are stated at 23 °C ± 1 °C)
Nominal current: 40 A AC peak or DC
Measuring range: 40 A

Overload capacity: 500 A (60 s)

Output sensitivity: 100 mV/AAccuracy ± 1% of reading ± 2 mA

Resolution: ± 1 mA
Gain variation: ± 0.02% of reading/°C
Frequency range: DC to 100 kHz (0.5 dB)
Power supply: 5 V nominal from PicoScope 4444

Load impedance (minimum): > 100 kΩ and ≤ 100 pF


General data
Conductor size: 25 mm diameter
Output cable and connectors: 2 m long screened cable terminated with D9 plug
Operating temperature: 0 °C to +50 °C



Mer information

Note: When using the PicoScope 4444 with USB power (no AC adaptor connected), sensor power is limited to a maximum of 3 x TA300 probes at once.
