PicoScope 4444 USB Differentialoscilloskop (standard-kit) med 4 äkta differentialingångar och hög upplösning

Art. nr: 71169
13 440 kr

Antal




Produktbeskrivning

  • 4 true differential inputs
  • Flexible 12- or 14-bit resolution
  • 20MHz bandwidth
  • 256 MS capture memory
  • Detects, identifies and powers compatibleprobes
  • Kit and accessories for sensitive lowlevel, general electronic applications
  • USB powered and highly portable for field use

With most oscilloscopes, just connecting to the signal of interest can be very frustrating when one of the connection points has to be grounded.



With the PicoConnect 441 1:1 differential voltageprobe, the PicoScope 4444 high-resolution differential oscilloscope allows the freedom to connectto and visualize signals that are off-limits to a grounded-input oscilloscope.



Connect directly to current-sensing resistors and differential signals, or across non-grounded components in a signalpath.



At the heart of every PicoScope 4444 is an advanced oscilloscope that offers everything you would expect and much more including:

  • 10 000 waveform circular buffer
  • Up to 100 000 waveforms per second update rate

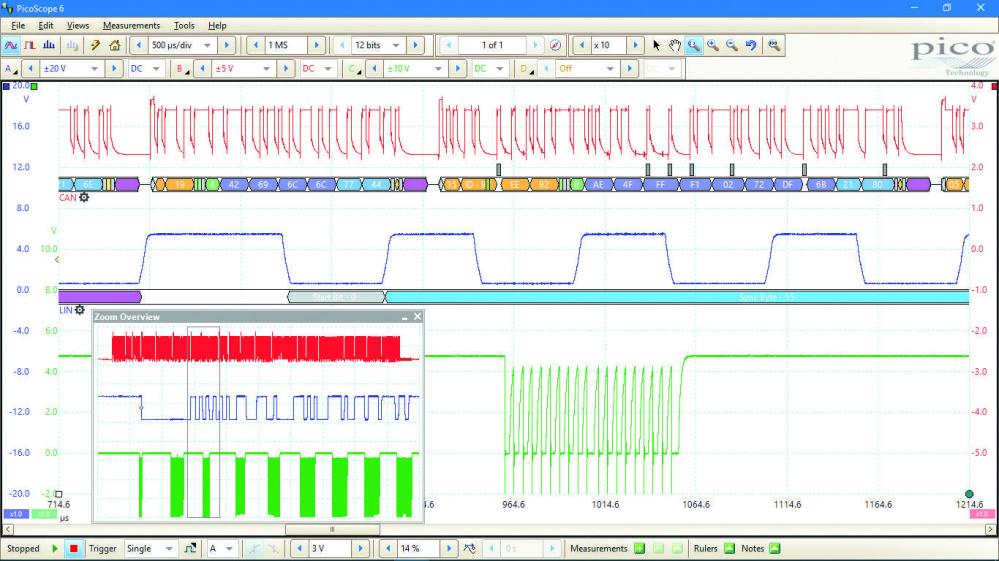

  • Serial bus decoding

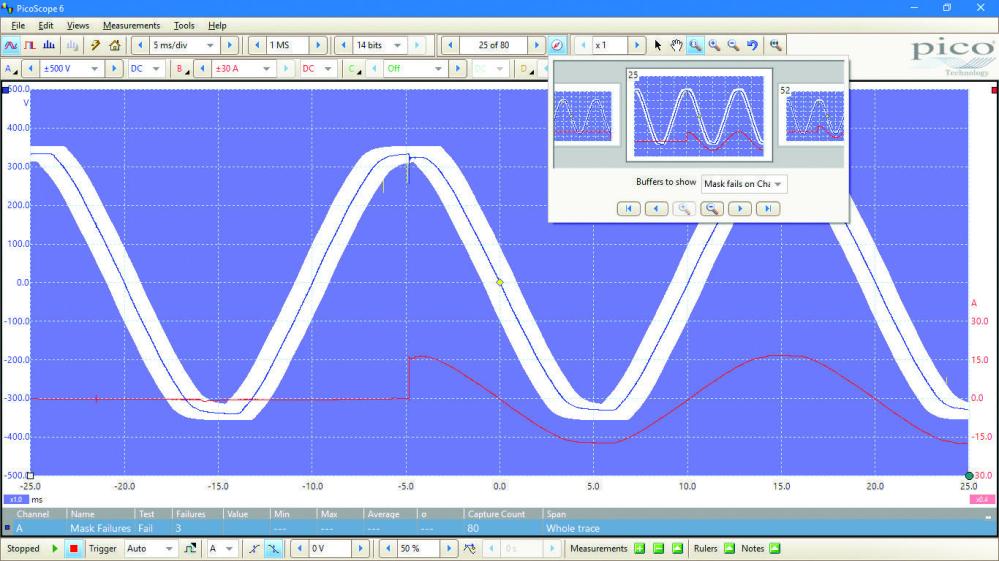

  • Mask limit testingA
  • dvanced math and filtering
  • Measurements with statistics
  • Advanced digital triggering
  • USB 3.0 connected and powered

The PicoConnect 441 probe does not attenuate your signal and is well suited to numerous electronics applications, as well as biomedical and other scientific research, as it allows high-speedhigh‑resolution measurements on signals between ±10 mV and ±50 V in the presence of common mode voltages and noise.

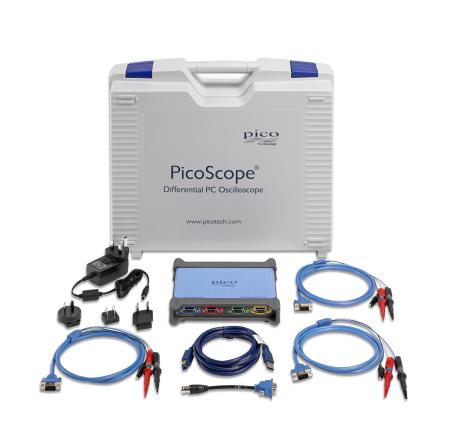

What´s in the box?

High-resolution differential oscilloscope with three PicoConnect 441 1:1 passive differential voltage probes, one TA271 single-ended D9-BNC adaptor and a hard carry case.



Typical applications

  • Safely probe single and 3-phase voltage and current
  • Measuring power drawn by mobile and IoT devices
  • Mains quality testing
  • SMPS design
  • Hybrid and electric vehicle design
  • Motor drives and inverters
  • Biomedical electronics
  • Measuring differential signals (CAN, balanced audio) with a single channel


Mer information

Just load the software, plug in the USB cable and you are up and running in minutes.

Saving and printing are easy: PicoScope users can take copying waveforms into reports for granted.



On the bench, a PicoScope saves valuable space and can be placed right by the unit under test.



Laptop users benefit even more: with no power supply required you can now carry an oscilloscope with you all the time in your laptop bag. Perfect for the engineer on the move.



With our scopes, high-end features such as serial decoding, mask limit testing, advanced math channels and segmented memory are all included in the price.



To protect your investment, both the PC software and firmware inside the scope can be updated.

Pico has a 26-year history of providing new features for free through software downloads.
