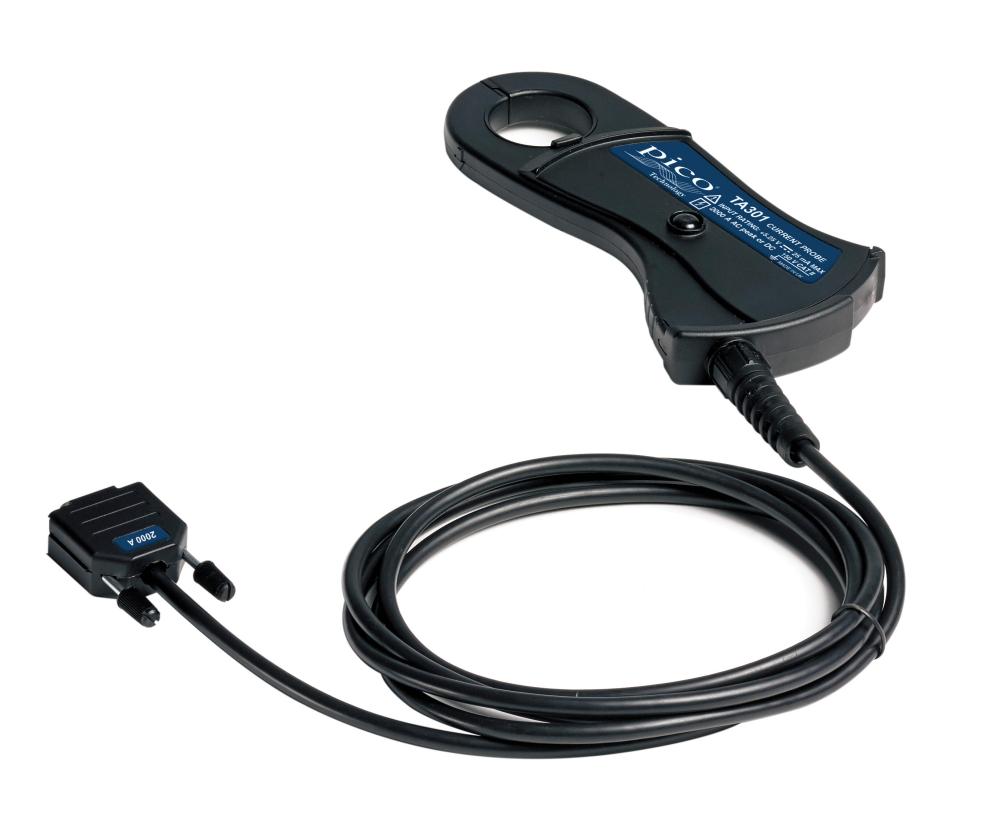

Pico TA301 200/2000 A AC/DC current probe, D9 connector to the PicoScope 4444 differential oscilloscope
Bilder
  • Pico TA301 200/2000 A AC/DC current probe, D9 connector to the PicoScope 4444 differential oscilloscope

Pico TA301 200/2000 A AC/DC current probe, D9 connector to the PicoScope 4444 differential oscilloscope

Art. nr: 71353
1 970 kr

Antal




Produktbeskrivning

The TA301 is a high-bandwidth, high-current probe fitted with a D9 connector specifically designed to work with the PicoScope 4444 differential oscilloscope.



The probe is automatically sensed by the PicoScope 4444 oscilloscope and features two current ranges: 200 A and 2000 A, AC or DC.



The range is selected in the PicoScope 6 software, which also sets the probe range and vertical axis scaling.



Mer information

Electrical data (all accuracies are stated at 23 °C ± 1 °C)
Nominal current: 2000 A AC peak or DC
Measuring ranges: 200 A, 2000 A
Overload capacity: 2200 A (60 s)
Output sensitivity: 10 mV/A, 1 mV/A
Accuracy (0 to 200/1500 A): ± 1% of reading ± 100 mA, ± 500 mA

Accuracy (1500 to 1800 A): ± 3% of reading
Accuracy (1800 to 2000 A): ± 6% of reading
Resolution: ± 50 mA, ± 400 mA
Gain variation: ± 0.1% of reading/°C
Frequency range: DC to 20 kHz (-1 dB), IRMS x f ≤ 400,000
Power supply: 5 V nominal through PicoScope 4444
Load impedance (minimum): > 100 kΩ and ≤ 100 pF



General data
Conductor size: 32 mm diameter
Output cable and connectors: 2 m long screened cable terminated with D9 plug
Operating temperature: 0 °C to +50 °C
