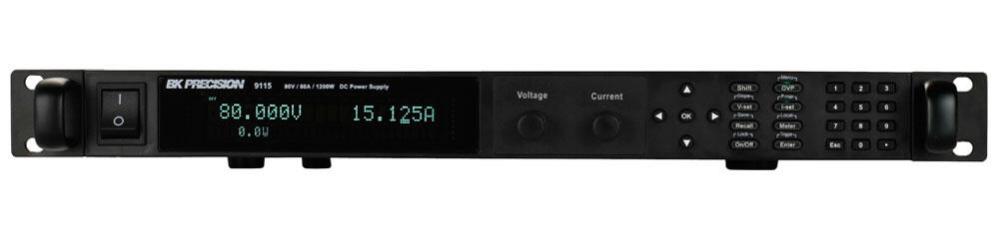

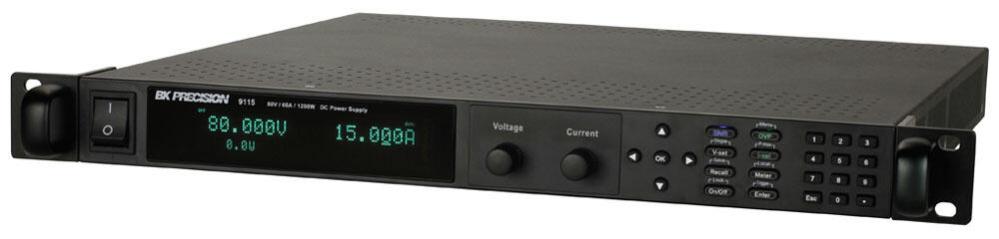

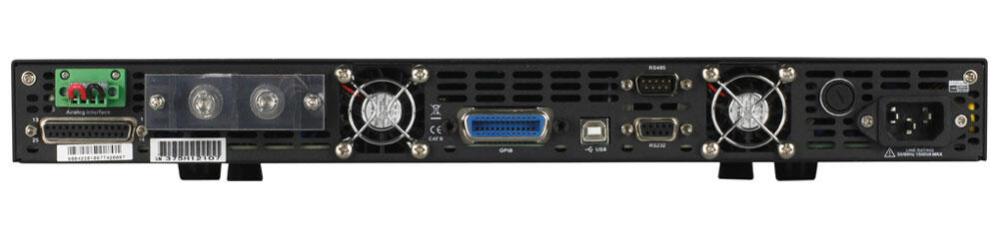

BK Precision BK9115B Multi range 80V/60A/1200W DC Power Supply - No GPIB

Art. nr: BK9115B
26 165 kr

Antal




Produktbeskrivning

  • 80V
  • 60A
  • 1200W
Any 9115 Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.

For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands.

The 9115-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2 standards that can simulate common test conditions for electrical and electronic devices installed in automobiles.

  • Multi-ranging operation (output up to max power rating within maximum voltage and current rating)
  • Compact, high density, 1U rackmount form factor (2U for 9117)
  • High programming and readback resolution
  • Adjustable voltage rise and fall times
  • Sequence programming (internal list mode for 9115, 9115-AT, and 9116)
  • Store and recall up to 100 instrument settings
  • Standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands for remote control
  • Analog interface with control and monitoring functions
  • Remote sense
  • Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
  • Softpanel for remote control, test sequence generation, and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators
