Tekbox TBMDA7 Modulated Wideband Driver Amplifier

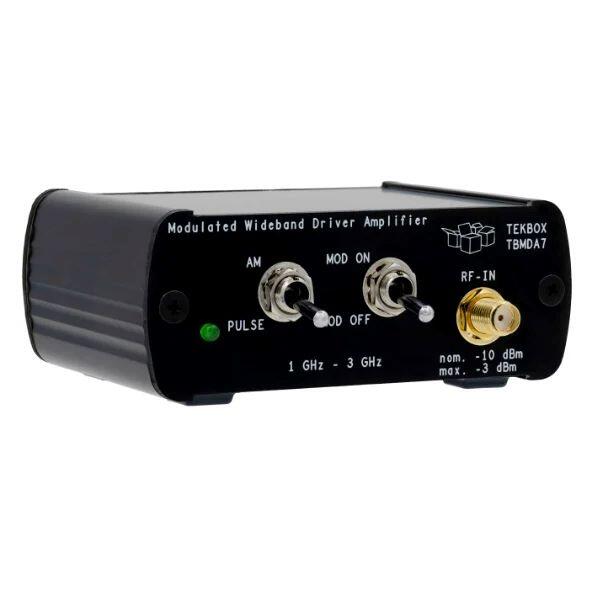

The TBMDA7 modulated wideband driver amplifier is designed to provide an inexpensive signal source for immunity testing of electronic building blocks and products. It operates in the frequency range from 1 GHz to 3 GHz and is designed to be driven by the tracking generator output of spectrum analyzers. With a 1dB compression point of 350 mW avg. and a saturated output power of 500 mW avg., it can boost the output power of a tracking generator to drive Tekbox near field probes in order to find the sensitive spot of an electronic circuit or to create electric fields up to 150V/m CW, 80V/m AM when driving the Tekbox TEM Cell TBTC 0, 80V/m CW, 45V/m AM when driving the TBTC1, 40V/m CW, 25 V/M AM when driving the TBTC2 or 27V/m CW, 15V/m AM when driving the TBTC3. Test signals for immunity testing can be CW, AM or PM. The TBMDA7 provides built in modulation capability to generate 1 kHz AM or PM signals. In PM mode, the TBMDA7 can also generate a 217 Hz Signal with 12.5% duty cycle in order to simulate mobile phone TDMA noise.

Specifications:

• Frequency range: 1 GHz – 3 GHz

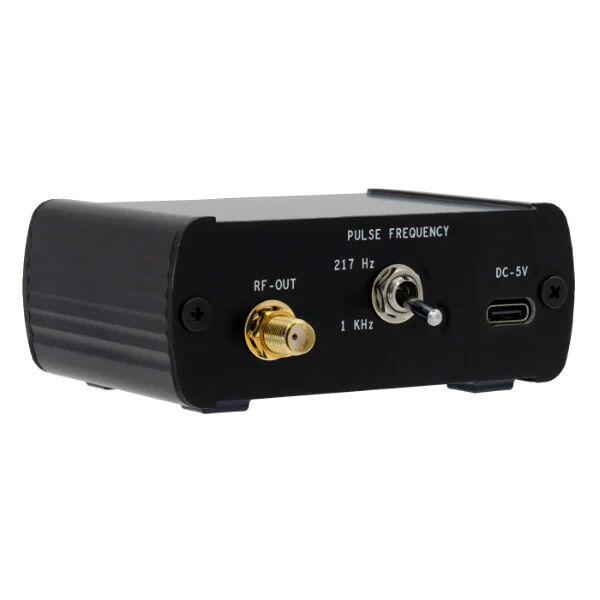

• RF Input / Output: 50 Ohm, SMA female; DC supply: Mini-USB-C connector
• Nominal supply Voltage: 5V, typ. 800mA; maximum supply voltage 5.5V.
• Nominal input power: -10 dBm to – 8 dBm; maximum input power: -5 dBm continuous, -3 dBm max.
• Operating temperature range: -20°C to 50°C
• Harmonics: < -10 dBc typ. @ 1.5 GHz
• Harmonics: < -15 dBc typ. @ 1.5 GHz
• Internal modulation frequency AM: 1 kHz ±10%
• Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%
• Duty cycle, PM: 50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz

Application:

• General-purpose gain block
• Signal source for immunity testing, driving near field probes
• Signal source for immunity testing, driving TEM Cells

Features:

• CW amplifier (modulation off)
• 1 kHz, 80% AM modulation
• 1 kHz, 50% duty cycle pulse modulation
• 217 Hz, 12.5% duty cycle pulse modulation
