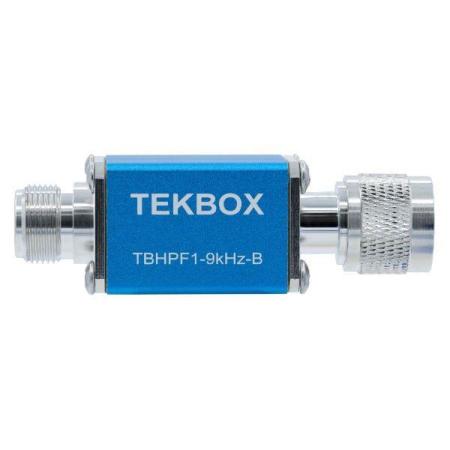

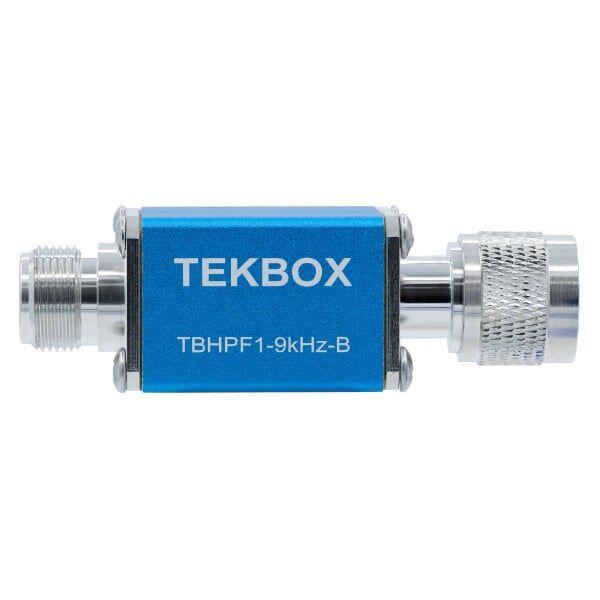

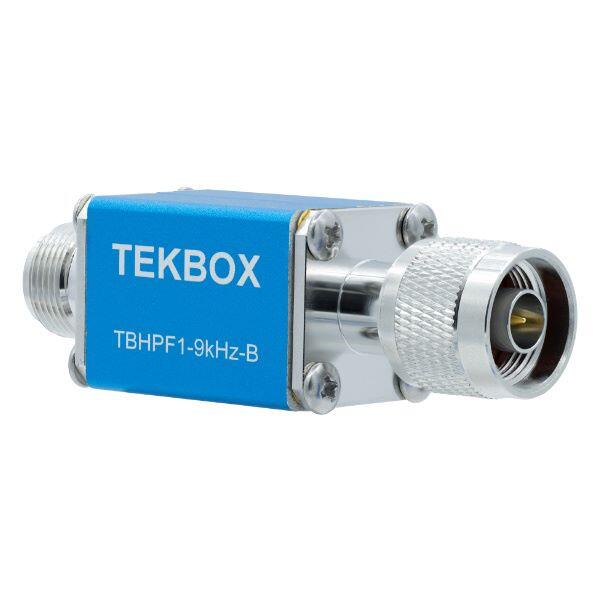

Tekbox TBHPF1-9KHz-B High-Pass Filter

Balanced 50 Ω high-pass filter with 3 dB bandwidth 9 kHz–1 GHz, max 10 W input power and N-male/N-female connectors for RF input protection during emission measurements.

1 080 SEK

9 kHz Highpass Filter for protection of spectrum analyzer or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups.



Specifications

  • High Pass Filter, symmetric, reflective, 50 Ohm
  • 3dB bandwidth: 9 kHz – 1 GHz
  • S11, 9 kHz – 110 MHz: < -12 dB
  • Topology: 5th order Chebyshev
  • Filter capacitor voltage rating: 100V
  • Filter inductor saturation current: 0.7 A
  • Maximum input power at frequencies 9 kHz – 1 GHz: 10W
  • Connectors: N-Male / N-Female
  • Dimensions: 26 x 26 x 82 mm
  • Weight: ca. 100g

Product information

  • Art.no

    23343
