Start | Sortiment | Dataloggers/DAQ | Temperatur | Graphtec GL840-WV Handhållen, 20- till 200-kanalers universal datalogger, 300V isolation/kanal
Graphtec GL840-WV Handhållen, 20- till 200-kanalers universal datalogger, 300V isolation/kanalGraphtec GL840-WV Handhållen, 20- till 200-kanalers universal datalogger, 300V isolation/kanal
Filmer

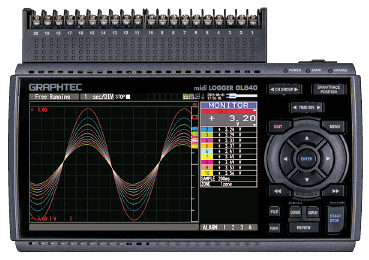

Graphtec GL840-WV Handhållen, 20- till 200-kanalers universal datalogger, 300V isolation/kanal

Art. nr: 71292
34 000 kr

Antal




Produktbeskrivning

  • 20 analog input channels, expandable to 200
  • Programmable per channel
  • ±20 mV to ±100 V over 12 ranges
  • Supports direct-connected thermocouples of any type
  • Supports direct-connected PT100/PT1000 RTDs
  • Full isolation per channel 300 V
  • 4 discrete input channels
  • Programmable as a group as logic or pulse inputs
  • Pulse inputs support counter or frequency inputs
  • 4 discrete alarm outputs
  • Optional WiFi wireless operation
  • Flexible triggering
  • Built-in, 7-inch color display
  • Built-in Web server operation for remote operations
  • Removable SD memory support up to 32 GB capacity
  • Operates either stand-alone or PC-connected
  • PC-side software include



The GL840-WV package includes a GL840-WV data logger, an AC adapter, and software on CD.





Develop your own software with Graphtecs Software Development Kit SDK



Graphtec SDK




Relaterade

Graphtec B-530 Humidity sensor 0 to 100% with 3 m long signal cable (with power plug)
72107
Graphtec B-530 Humidity sensor 0 to 100% with 3 m long signal cable (with power plug)
Connect the B-530 humidity sensor to any GL220, GL240, GL820...
Graphtec B-568 Wireless LAN unit
71118
Graphtec B-568 Wireless LAN unit
Supported GL series: GL840, GL240Communication method: Wirel...
Graphtec B-569 Uppladdningsbart Lithium-ion batteripack (7.2 V, 2900mAh)
70791
Graphtec B-569 Uppladdningsbart Lithium-ion batteripack (7.2 V, 2900mAh)
The battery pack option (B-569) allows operation independent...
REA
Graphtec B-513 Input/Output logic/alarm cable for GL series
70788
Graphtec B-513 Input/Output logic/alarm cable for GL series
REA Lagerrensning - Så långt lagret räcker 2 m long (no cli...
Graphtec B-514 DC drive cable
70789
Graphtec B-514 DC drive cable
DC Power cable, 2 meters, bare ends, for direct connection t...
Graphtec B-581 Storage Case
72354
Graphtec B-581 Storage Case
This hard case is compatible with different Graphtec GL mode...
Graphtec B-564 GL840 input terminal (Multi-input type)
72062
Graphtec B-564 GL840 input terminal (Multi-input type)
20ch input terminal, multi-input typeCompatible with Instrum...

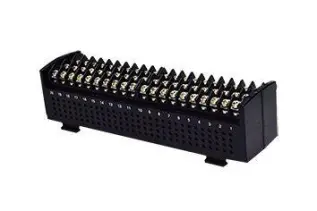

 Graphtec B-565 GL840 input terminal (Withstand voltage type)
