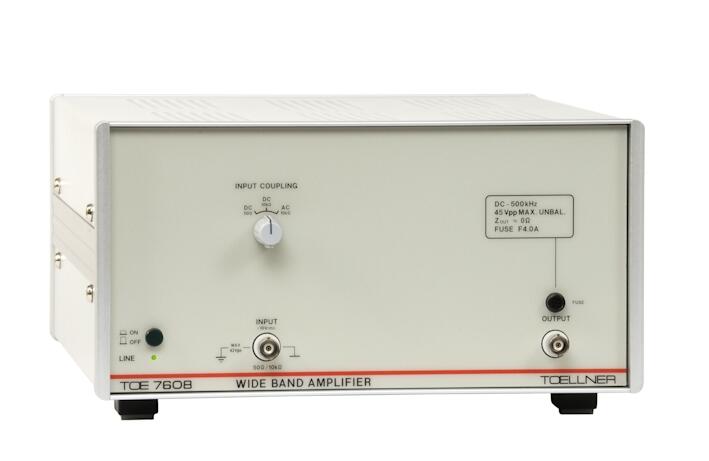

Toellner TOE 7608 Broadband amplifiers DC to 500 kHz with integral feedback voltage protection 63 W output power
  • Toellner TOE 7608 Broadband amplifiers DC to 500 kHz with integral feedback voltage protection 63 W output power

Toellner TOE 7608 Broadband amplifiers DC to 500 kHz with integral feedback voltage protection 63 W output power

Art. nr: 71159
17 120 kr

Antal




Produktbeskrivning

  • Frequency range DC to 500 kHz
  • Short-circuit and no-load proof
  • Feedback voltage protection up to 120 V

Function/signal generators generally provide signals with a small amplitude into 50-Ohm systems.



Signal conditioning and amplification are therefore required in many technical areas.



The TOE 7608 broadband amplifier is suitable as a non-inverting power output stage for the amplification of such signal sources.

Each generator with an output voltage of 20 Vpp is able to cover the full operating range of the TOE 7608 amplifier; the power is 63 W into 8 Ohm at a max. output amplitude of 45 Vpp.

The bandwidth is DC to 500 kHz.



Overcurrent protection at the output, protection against feedback voltages, and overtemperature protection provide the amplifier with a high degree of operational safety.
