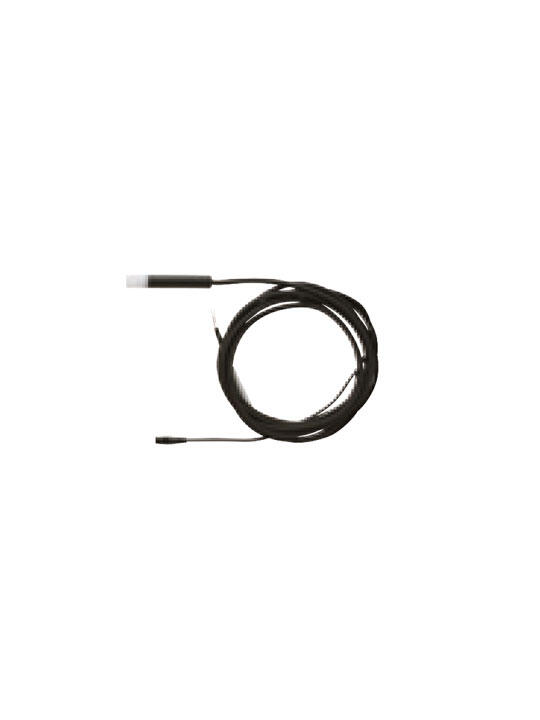

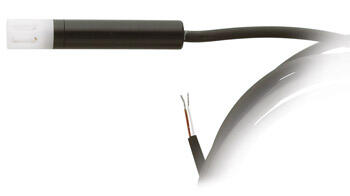

Graphtec B-530 Fuktighetssensor 0 till 100% med 3 m lång signal kabel (med nätkontakt)

Anslut fuktsensorn B-530 till valfri GL220, GL240, GL260, GL820, GL840, GL900, GL7000 eller MT100 för fuktmätningar.

• Mäter 0 till 100 % RF
• Noggrannhet på ±3 % RH vid 25 °C
• 3 meter lång

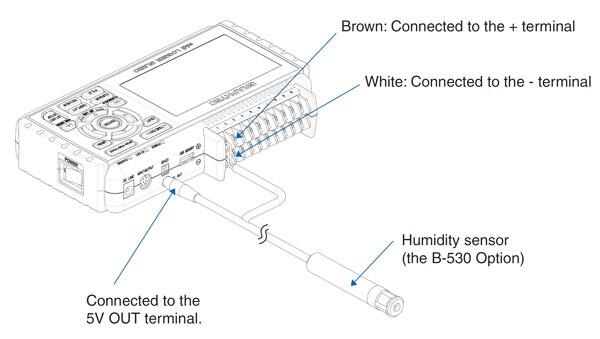

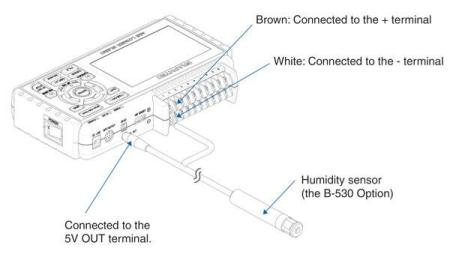

• Ström B-530 via dataloggarens 5V strömförsörjning
• Ansluts till valfri tillgänglig analog spänningskanal på dataloggern

Specifikationer:

Allowable temperature range: -25 to +80°C
Allowable humidity range: 0 to 100% RH
Relative humidity measurement accuracy: ±3% RH (5 to 98% RH at 25°C)
Method: Capacitance method
Relative humidity measurement accuracy: (5-98%)
Measurement Environment Measurement Accuracy:
0-10°C ±5% RH
10-20°C ±4% RH
20-30°C ±3% RH
30-40°C ±4% RH
40-50°C ±5% RH
50-60°C ±6% RH
60-70°C ±7% RH
70-80°C ±8% RH
Response time: 15 seconds (90% response with membrane filter installed
Sensor output: 0 to 1 VDC
Sensor power: +5 to +16 VDC
Consumption current: Approx. 4mA
External dimensions: 14mm × 18mm (excluding cable)
Cable length: 3 meters
