Compact Standalone Multi-Input 10 channels Datalogger
GL260 is a 10-channel type data logger that supports all channel isolated and multi-function input. It can measure various phenomena such as voltage and temperature. By narrowing down the number of channels, data captured at sampling interval of up to 10ms is possible. Wireless LAN unit(option) enables wireless measurement and remote monitoring
The GL260 with color monitor is a compact, lightweight data logger. The GL260 can save the high-capacity measurement data directly in the internal memory or SD memory card. In addition, the setting, measuring, and data capturing can be performed online by connecting to the computer with the USB cable.
Features

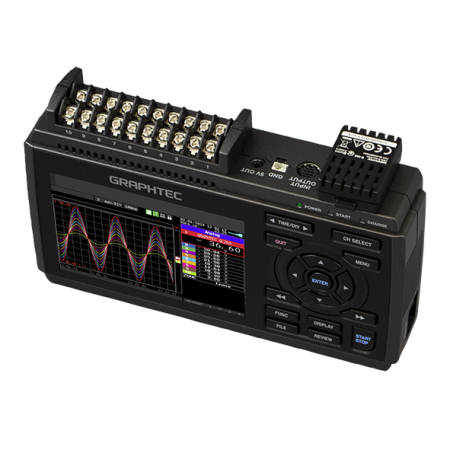

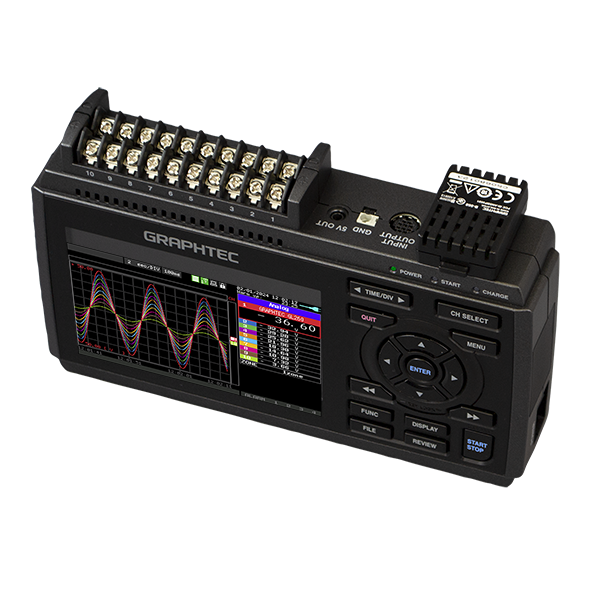

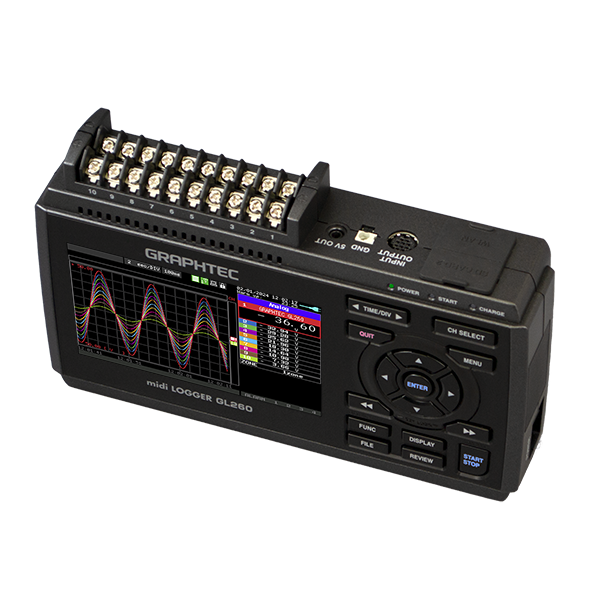

- Adoption of an M3 screw-type terminal facilitates wiring.
- The GL260 enables settings to be made using dedicated keys and interactive menus, using just one hand.

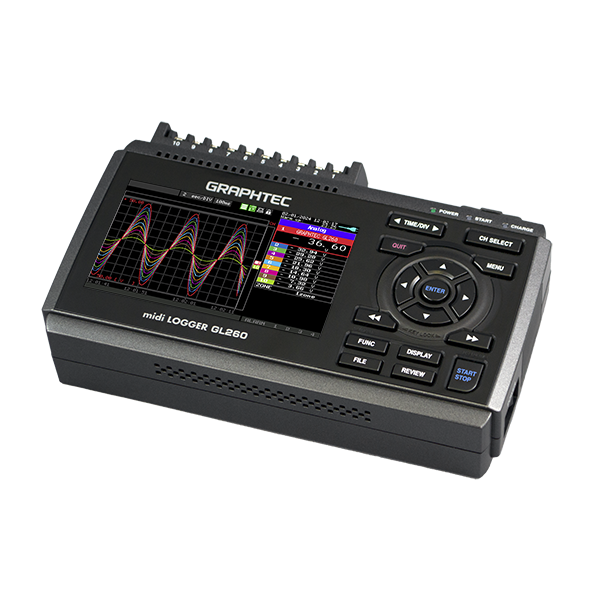

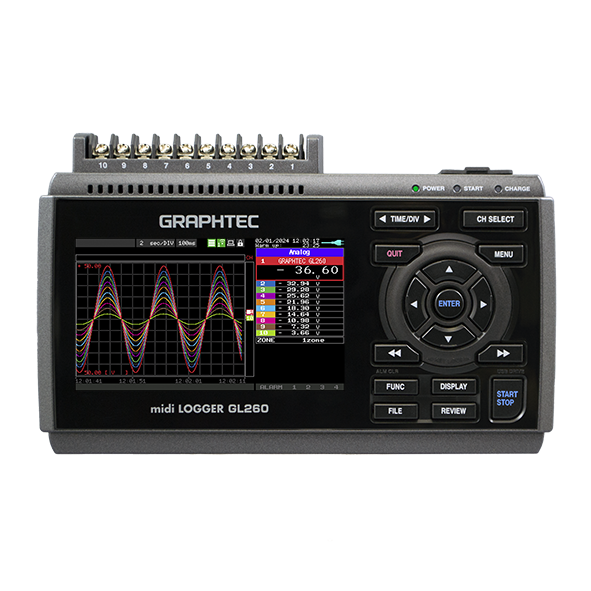

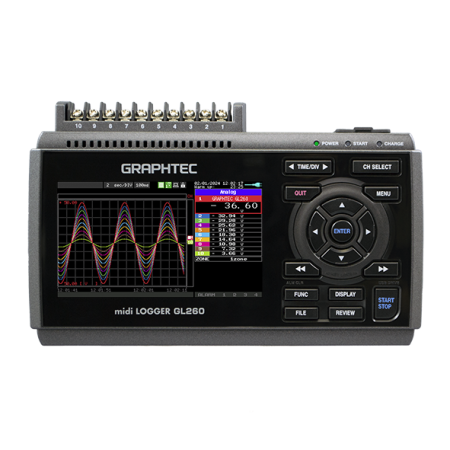

- With the GL260’s high-resolution 4.3-inch TFT color liquid crystal display, you can confirm the waveforms of measured data and each channel’s settings at a glance.
New
- A record of the unit's usage (number of startups, number of recordings, number of setups) is kept in an internal memory. Settings are automatically saved when firmware is updated. Span values are automatically adjusted based on the data being displayed.
- Delete undesignated old files in the relay file and continue recording.
- Linkage with G-REMOTE, a remote control service. Waveforms of the GL260 can be checked and operated remotely.
- Alarm occurrence/deactivation history can be collected for up to 100 most recent events. You can also jump the cursor to the alarm event point during data replay.
- The new web browser allows operating and monitoring GL260 through an optional wireless LAN unit.
- The warm-up display function displays the time since the power was turned on.
- Serial No. is registered on board for easy confirmation.
- QR code can be displayed from HELP to easily view the Q&A on our website.
