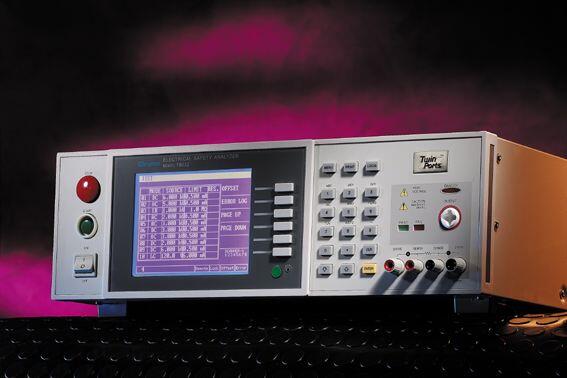

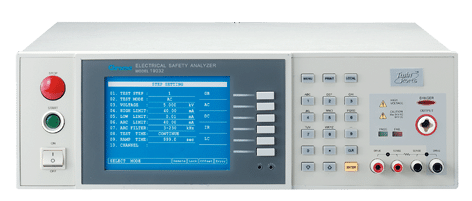

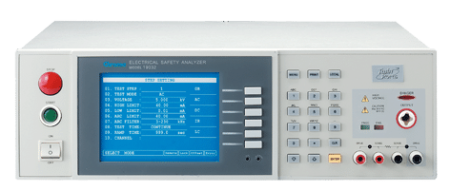

Chroma 19032 Elsäkerhetstestare AC/DC/IR/GB/LC/Dynamic Function-sex instrument i ett

Art. nr: Chroma 19032
81 690 kr

Antal




Produktbeskrivning

  • AC/DC/IR/GB/LC/Dynamic Function - six instruments in one
  • Function test up to 20
  • Programmable voltage output and limit value
  • OSC open/short check
  • Flashover detection
  • Human protection circuit
  • Multi-scan device support dynamic leakage current test
  • Standard RS232 interface
  • Optional GPIB interface
  • Large LCD panel
  • Front panel lockout function
  • Optional softpanels
  • CaptivATE Automation Software
  • UL/TUV/CE
  • 2-Year factory warranty



Electrical safety testing is a major item in electrical product quality testing.

All electrical products like adapters, SMPS, charges, house appliances, information technology products, and video products are required to undergo electrical safety testing.



The 19032 series combines Hipot, Insulation Resistance (IR), Ground Bond (GB), Leakage Current (LC)/AC LC/DC LC and Dynamic Function Tests.

Space savings can be up to 50% of production line space, through not purchasing multiple safety test instruments.

The 19032 is able to increase the efficiency of electrical safety testing during manufacturing and reduce associated labor costs.



Accessories/options:

  • A190301: 8HV Scanning Box
  • A190302: 5HV/3GC Scanner
  • A190303: 3HV/5GC Scanner
  • A190304: 8HV Scanner
  • A190305: Line Leakage Current Scanner (generally)
  • A190306: Hipot/Line Leakage/Probe Scanner (10A)
  • A190307: L-N Scanner & Leakage Current Scanner
  • A190308: Hipot/Line Leakage/Probe Scanner (20A)
  • A190313: 500VA Isolating Transformer
  • A190314: 1000VA Isolation Transformer
  • A190316: Dummy Load
  • A190317: Bar Code Scanner
  • A190334: Ground bond 40A (19032)
  • A190336: 8HV/8GB Scanning Box
  • A190337: Ground Bond 60A (19032)
  • A190338: 19001 EST Software
  • A190343: 19' Rack Mount Kit (19032)
  • A190344: HV Gun
  • A190349: Universal corded Product Adapter
  • A190350: HV/LC/LAC/DC Probe Scanner (20A)
  • A190353: 4HV/4GC Scanner
  • A190508: GPIB Interface (19032)
  • A190708: ARC Vertification Fixture
