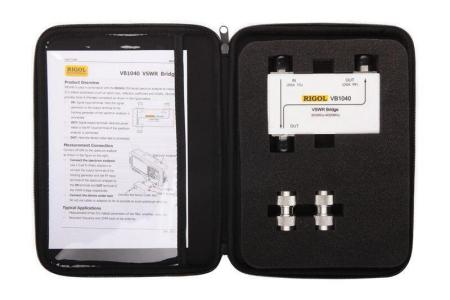

Rigol VB1040 VSWR bridge, 800 MHz to 4 GHz with DSA8-VSWR software
Bilder
  • Rigol VB1040 VSWR bridge, 800 MHz to 4 GHz with DSA8-VSWR software

Rigol VB1040 VSWR bridge, 800 MHz to 4 GHz with DSA8-VSWR software

Art. nr: 71342
8 430 kr

Antal




Produktbeskrivning

800 MHz to 4 GHz VSWR Bridge with DSA8-VSWR software for DSA800 Spectrum Analyzers. *SW does NOT work with DSA1000 Family.



Requires TG Option.



VB1040 is used in combination with the RIGOL DSA series spectrum analyzer to measure S11-related parameters (such as return loss, reflection coefficient and VSWR).



VB1040 provides three N (Female) connectors.



Typical Applications
- Measurement of the S11-related parameters of the filter, amplifier, mixer, etc.
- Resonant frequency and VSWR tests of the antenna.
