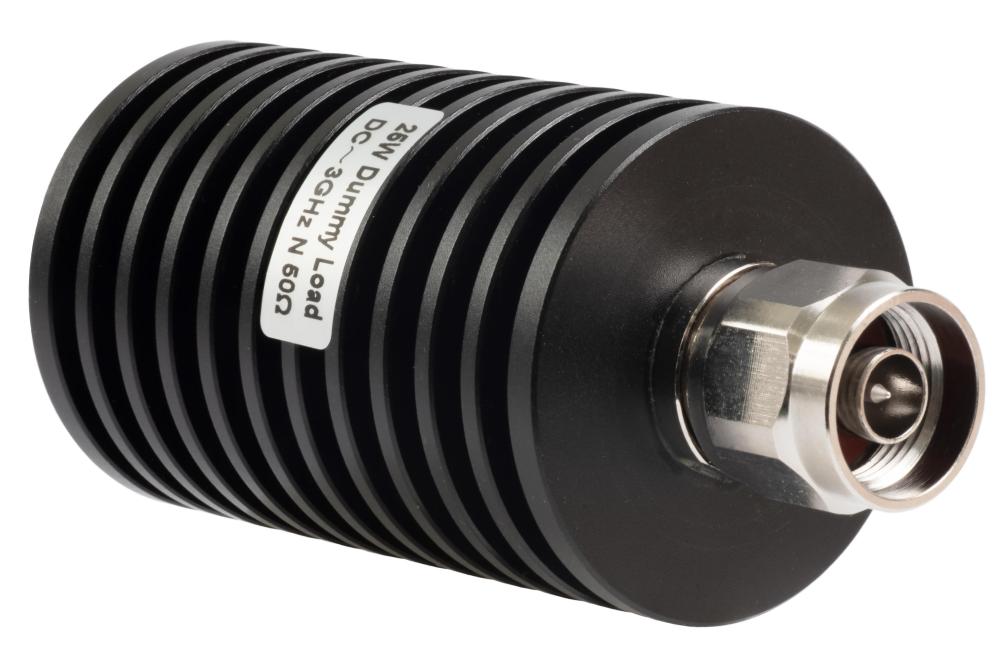

Tekbox TBTER-25W-3GHz-50-N RF-terminering

50 Ω belastning med N-kontakt (hane), 25 W effekt, frekvensområde DC – 3 GHz, VSWR < 1.2.

Tekbox TBTER-25W-3GHz-50-N RF-terminering 50 Ohm, 25W, N-male, 3GHz 450 SEK Tekbox TBTER-10W-6GHz-50-N RF-terminering 50 Ohm, 10W, N-male, 6GHz 450 SEK Tekbox TBTER-2W-6GHz-50-N RF-terminering 50 Ohm, 2W, N-male, 6GHz 250 SEK Tekbox TBTER-2W-3GHz-50-BNCM RF-terminering 50 Ohm, 2W, BNC-male, 3GHz 190 SEK Tekbox TBTER-0.5W-2GHz-BNCM RF-terminering 50 Ohm, 0.5W, BNC male, 2GHz 180 SEK Tekbox TBTERFT-0.5W-1GHz-BNCF/BNCM RF-terminering 50 Ohm, 0.5W, BNC-female to BNC male, 1GHz, feed through termination 110 SEK

450 SEK

Model	TBTER-25W-3GHz-50-N	TBTER-10W-6GHz-50-N	TBTER-2W-6GHz-50-N	TBTER-2W-3GHz-50-BNCM	TBTER-0.5W-2GHz-BNCM	TBTERFT-0.5W-1GHz-BNCF/BNCM
Type	50Ω load	50Ω load	50Ω load	50Ω load	50Ω load	50Ω feed-through termination
RF Connector	N-male	N-male	N-male	BNC-male	BNC-male	BNC-male / BNC-female
Frequency range	DC – 3 GHz	DC – 6 GHz	DC – 6 GHz	DC – 3 GHz	DC – 2 GHz	DC – 1 GHz
VSWR	< 1.2	< 1.2	< 1.2	< 1.2	< 1.2	< 1.2
Power Rating	25 W	10 W	2 W	2 W	0.5 W	0.5 W
