Chroma 62000H-S-serien DC-aggregat för simulering av solceller
Bilder
  • Chroma 62000H-S-serien DC-aggregat för simulering av solceller

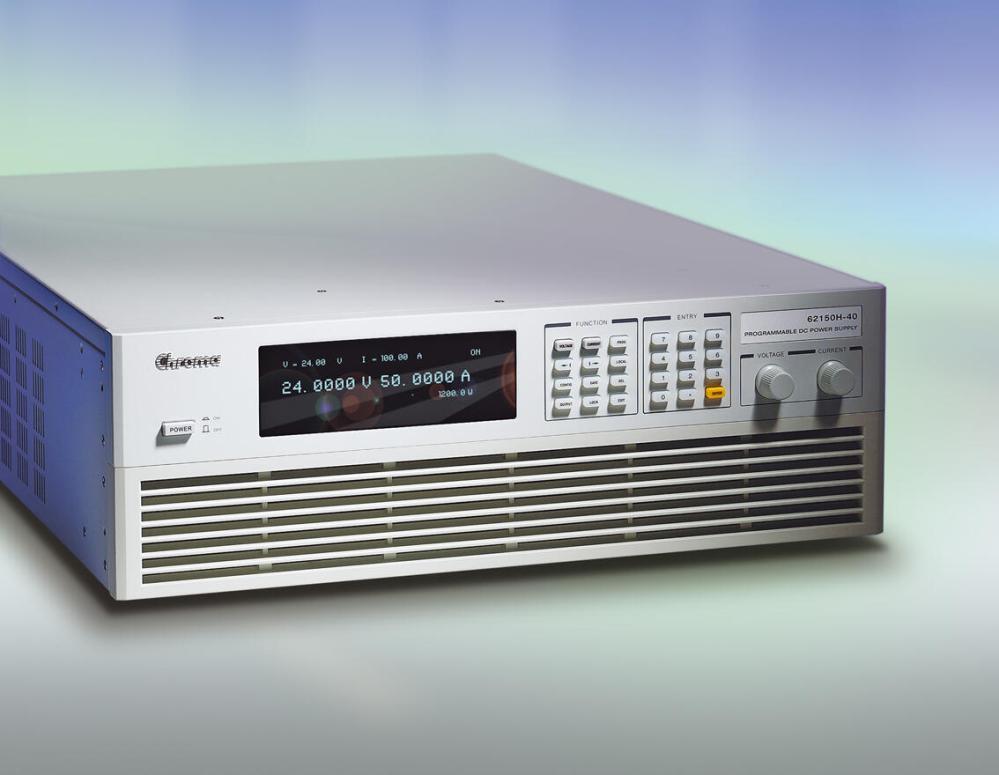

Chroma 62000H-S-serien DC-aggregat för simulering av solceller

Art. nr: Chroma 62000H-S

Begär offert




Produktbeskrivning



  • Voltage range : 0 ~600V&1000V
  • 3U/15kW high power density module with easy master/slave parallel operation up to 150kW
  • Fast transient response solar array simulator
  • Simulation of multiple solar cell material's I-V characteristic (fill factor)
  • Simulation of dynamic irradiation intensity and temperature level from clear day to cloud cover conditions
  • Shadowed I-V curve output simulation
  • Low leakage current (< 3mA)
  • Precision V & I measurements
  • Auto I-V program: 100 I-V curves & Dwell time 1-15,000s
  • Static & dynamic MPPT efficiency test
  • Data recorded via softpanel
  • Standard USB / RS232 / RS485 interface
  • Optional GPIB / Ethernet interface
  • Real time analysis of PV inverter's MPPT tracking via softpanel
  • Optional solar array simulator softpanel for operation



The 62000H-S programmable Solar Array Simulator provides simulation of Voc (open circuit voltage) up to 1000V and Isc (short circuit current) up to 25A.



The 62000H-S provides an industry leading power density in a small 3U high package. The Solar Array Simulator is highly stable and has a fast transient response, which are both needed for MPPT performance evaluation on PV inverter devices.
