Chroma 16502- Ohmmeter 0.001mΩ~1.9999MΩ

Art. nr: Chroma 16502
18 680 kr

Antal




Produktbeskrivning

Description

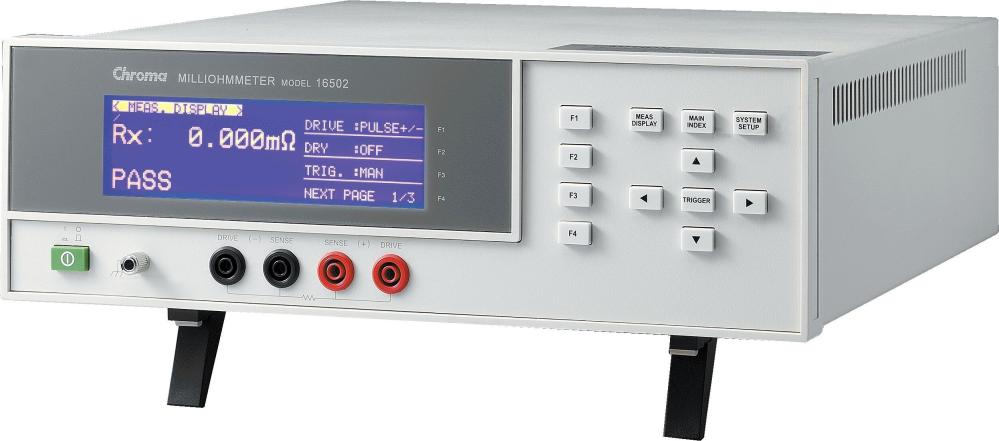

The Chroma 16502 Milliohm Meter is Chroma's newest digital Milliohm Meter. 0.001mΩ~1.9999MΩ wide measurement range.

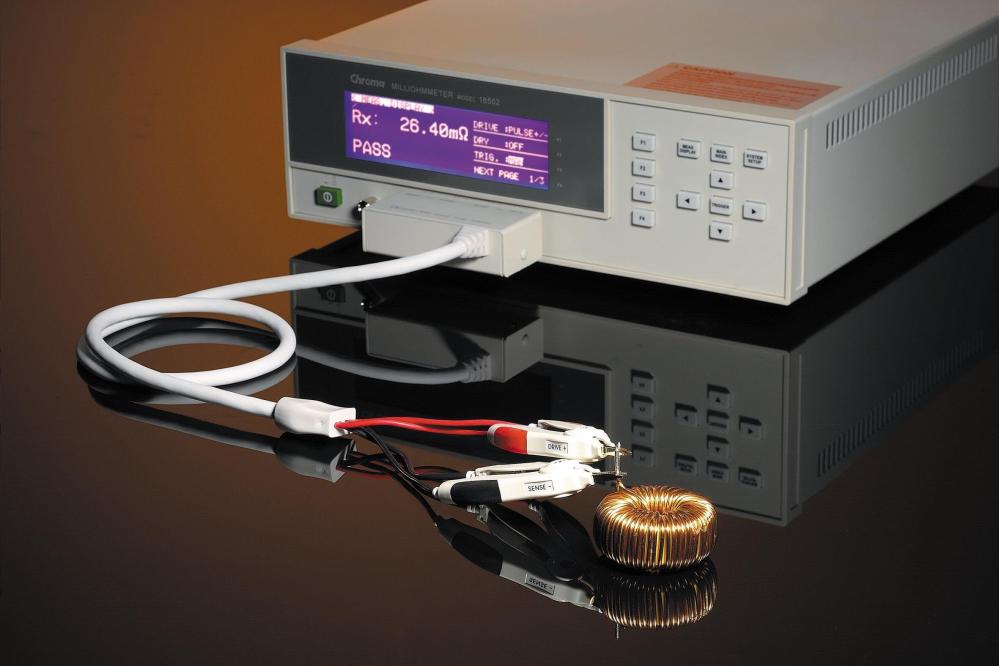

DC, Pulsed, and Dry-circuit test current driving modes enable the Chroma 16502 to be properly used in DC resistance measurements for various inductive components (coil, choke, and transformer winding etc.), cable, metallic contact (connector, relay switch etc.), and conductive materials.



Mer information

Key Features

  • Basic accuracy : 0.05%
  • Pulsed test current output mode is used to reduce thermal EMFs affection on milliohm measurement
  • DC test current output mode is used to fasten measurement speed for inductive DUT
  • Dry-circuit test current output mode (limited Max. 20mV) is used to measure such contact resistances where the maximum open-circuit voltage must be limited to 50mV
  • Temperature correction (TC function) regardless of material or temperature
  • Useful temperature conversion function for motor/ coil evaluation
  • 4 channels R scan with balance check function for fan motor (combined with A165017 option)

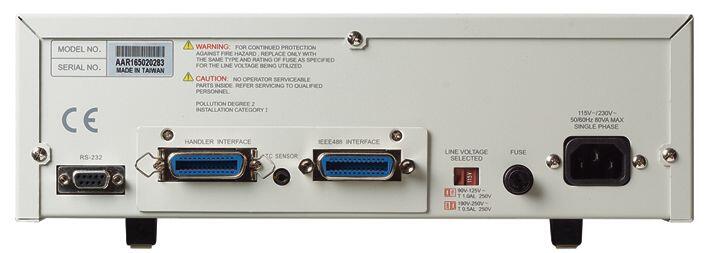

  • 0.001mΩ~1.9999MΩ wide measurement range with 4½ digits resolution• Standard RS-232 interface
  • Optional GPIB & Handler interface
  • Bin-sorting function
  • Comparator and pass/fail alarming beeper function
  • Large LCD display (240 x 64 dot-matrix)
  • Friendly user interface

Available accessories (Contact us for price info)


A110236 Rack Mounting Kit
A110235 GPIB & Handler Interface
A113012 Vacuum Generator for A165018
A165013 GPIB & Handler Interface w/ Temp Comp
A165014 Temperature Compensation Card
A165015 PT100 Temp Probe
A165016 Pin Type Leads (φ1.8mm)
A165017 4 Channel R Scanner
A165018 Test Fixture for SMD Power Choke
A165019 Pin Type Leads (taper)
A165020 Test Lead 2M, single open
A165022 Four Terminal 1M Test Cable
