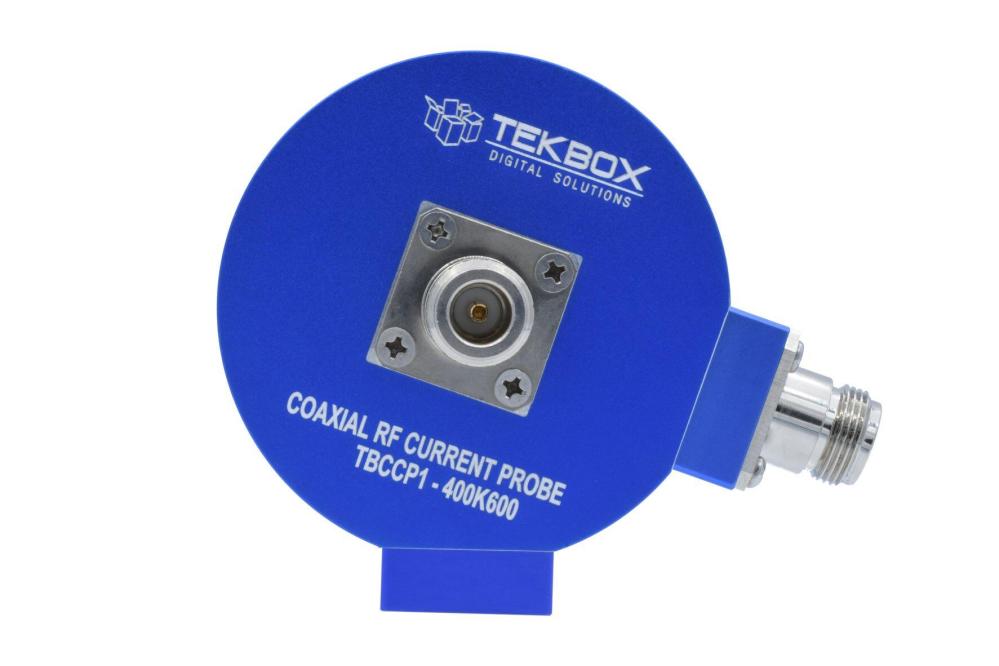

Tekbox TBCCP1-400K600 Coaxial RF Current Probe
400 kHz–600 MHz 3 dB bandwidth and 23 dBΩ transimpedance, characterised 10 Hz–600 MHz, N-female and max 12 A RF current.
The TBCCP1-400K600 is a coaxial RF current monitoring probe, which expands the Tekbox product range of affordable EMC pre-compliance test equipment.
The probe has a bandwidth of 3 dB from 400 kHz to 600 MHz and a very flat response from 1 MHz to 200 MHz. The transimpedance is characterized over the frequency range from 10 Hz to 100 MHz. The TBCCP1-400K600 is primarily designed as a sensor for passive loop antennas or for measuring RF currents in coaxial cables.
The probe is equipped with N contacts. An accessory with a ¼” thread allows connection to standard stands.
- Characterized frequency range: 10 Hz to 600 MHz
- Transfer impedance: 23 dB Ohm
- 3 dB bandwidth: 400 kHz to 600 MHz, typ.
- Dimensions: 76 mm x 102 x 69 mm
- Weight: 400 g
- Connector type: N female
- Max. primary current (RF): 12 A
- Max. core temperature: 125 °C
Product information
-
Art.no
TekBox TBCCP1-400K600
