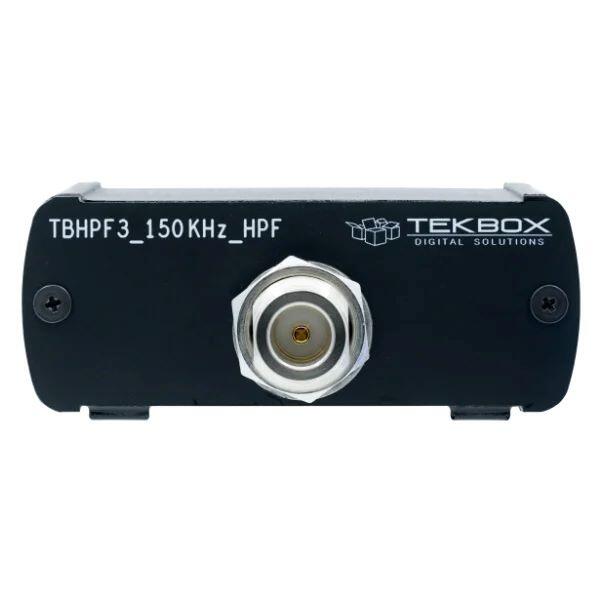

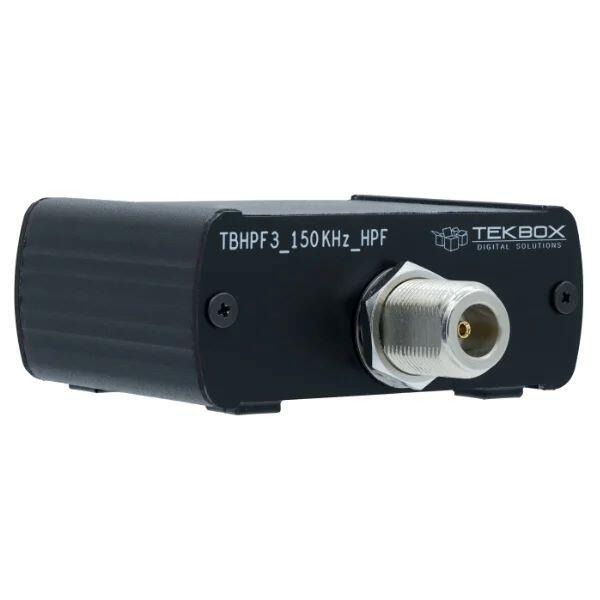

Tekbox TBHPF3-150KHz High-Pass Filter

Symmetrical 50 Ω high-pass filter with 3 dB bandwidth 135 kHz–100 MHz, 250 V rated voltage, 10 W input power and N-male/N-female connectors.

1 450 SEK

Specifications
  • High Pass Filter, symmetric, reflective, 50 Ohm
  • 3dB bandwidth: 135 kHz – 100 MHz
  • S11, 150 kHz – 110 MHz: < -17 dB
  • Topology: 5 th order Chebyshev
  • Filter capacitor voltage rating: 250V
  • Filter inductor saturation current: 5.6 A
  • Maximum input power at frequencies 300 kHz – 100 MHz: 10W
  • Connectors: N-Male / N-Female
  • Dimensions: 26 x 26 x 97 mm
  • Weight: ca. 110g

Product information

  • Art.no

    23346
