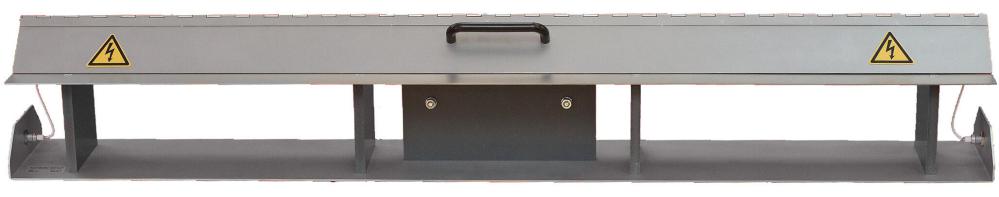

Schlöder SFT415 Capacity Coupling Clamp
Bilder
  • Schlöder SFT415 Capacity Coupling Clamp

Schlöder SFT415 Capacity Coupling Clamp

Art. nr: 71286

Begär offert




Produktbeskrivning

  • For Burst tests to data lines and other cables
  • IEC / EN 61000-4-4 and project IEC 61000-4-4 Ed.3-2010
Capacity clamp to test I/O leads, in conformity with IEC 61000-4-4,

Includes the high voltage cable


Technical data:

  • Usable diameter for round cable: 4 mm - 40 mm
  • HV connectors: On both sides (type: Fischer)
  • Distance between coupling plate and ground plate: 10 cm
  • Dimensions: 100 cm x 14 cm x 14 cm (L*B*H)
  • Weight: app. 6 kg
  • Optional with protection cover: SFT 415-1 (weight 7,4 kg)
