Built-in Vector Network Analysis mode

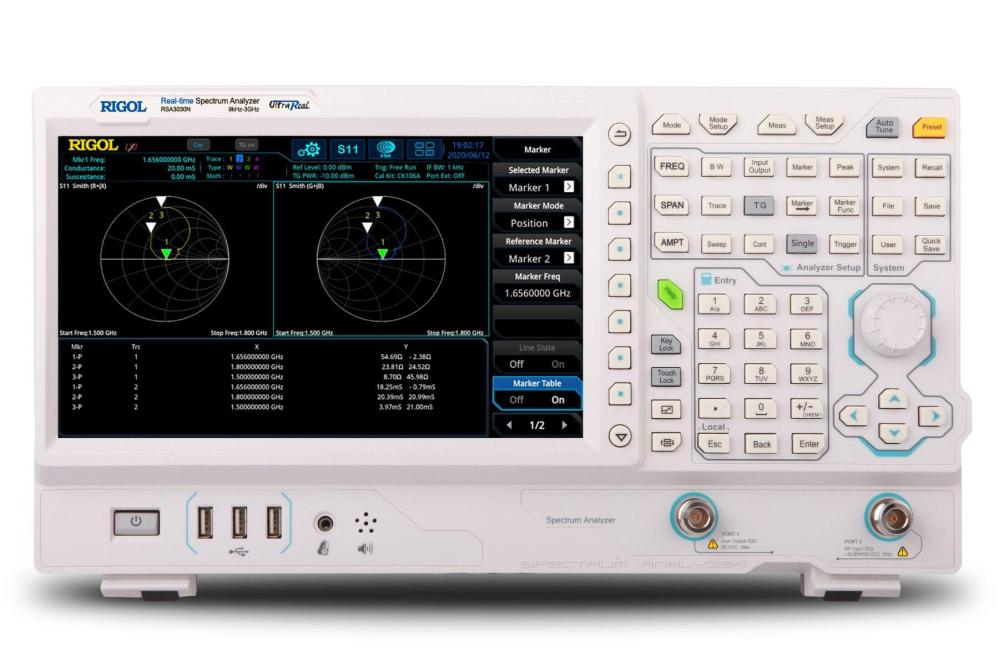

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.

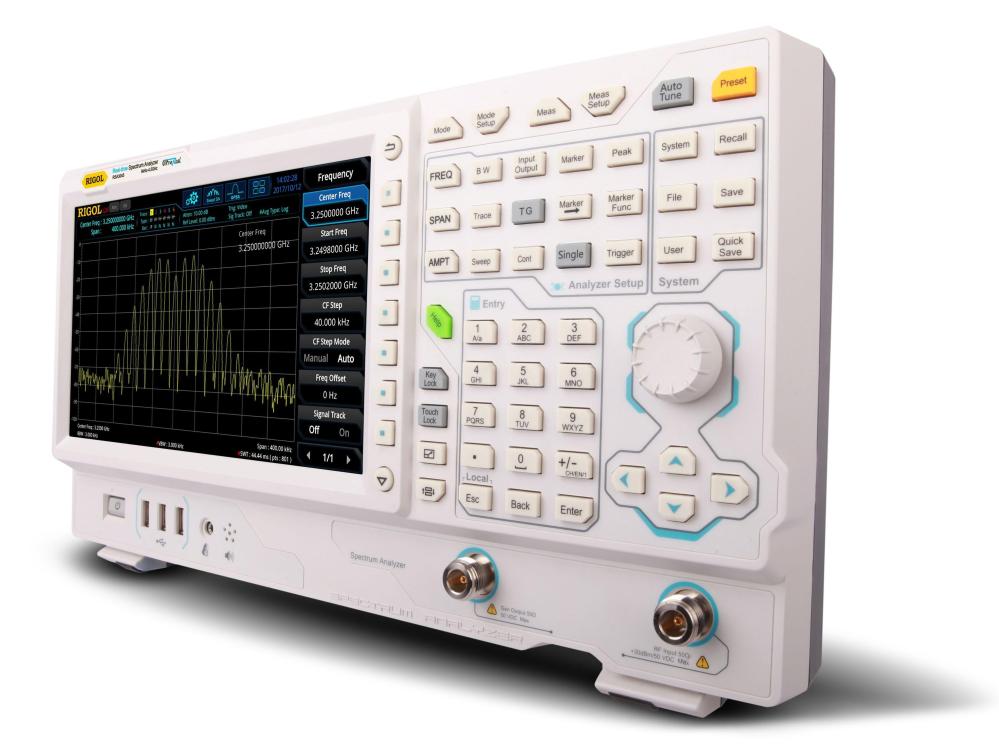

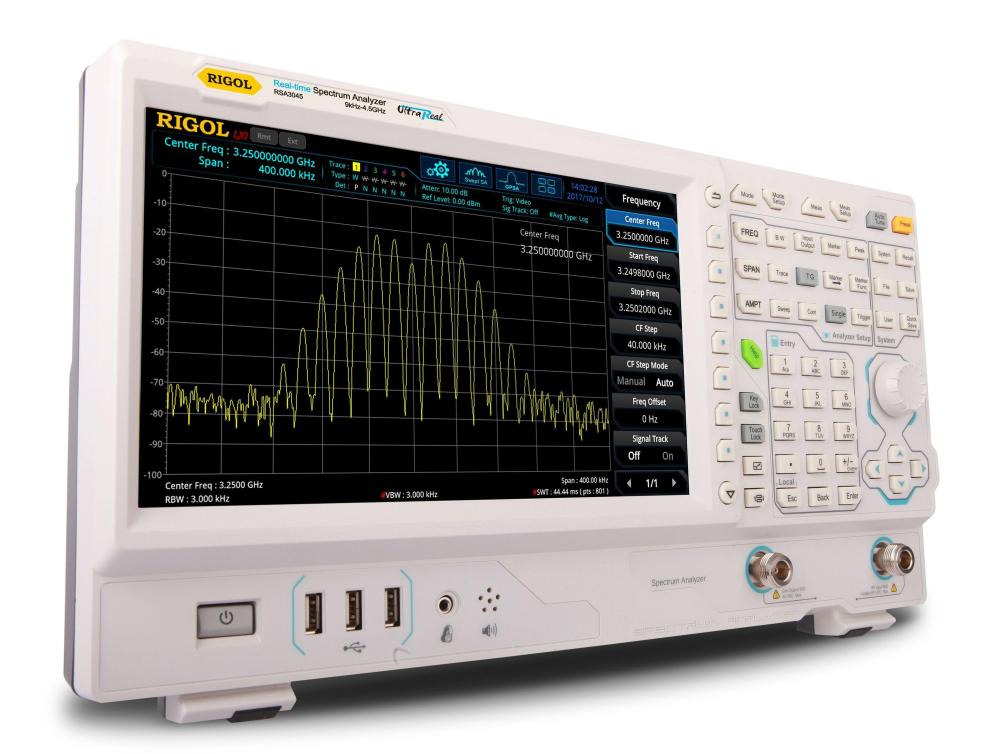

- 9 kHz to 3.0 GHz Frequency Range
- 10.1" Capacitive touchscreen display

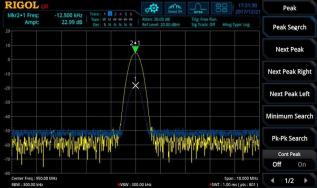

- Displayed Average Noise Level as low as -161 dBm with opt. PreAmplifier
- Real-Time Analysis Bandwidth of 10 MHz standard (40 MHz option)
- Frequency-Mask-Trigger, IF-Power-Level-Trigger and external Trigger
- 7 Real-Time visualization modes
- 100 % POI as low as 7. 45 µs
- 10 Hz Minimum Resolution Bandwidth (RBW) (1 Hz option)
- 1 ms full span sweep speed

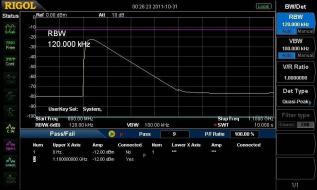

- EMI RBW and Detector standard (200 Hz, 9 kHz, 120 kHz, 1 MHz)

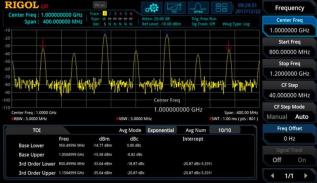

Based on the Ultra-Real technology, the high-speed real-time measurement mode allows you to acquire the signals in the analysis bandwidth seamlessly and make data analysis.
It also provides various display modes, such as Spectrogram,Density, and PVT.
Besides, FMT function is also available.
The Ultra-Real technology has the following features:
- Seamless analysis
- Seamless I/Q data acquisition in the analysis bandwidth
- Seamless spectrum analysis
- Frequency mask trigger (FMT) to trigger the measurement by sporadic or transient events in the spectrum
- Composite displays

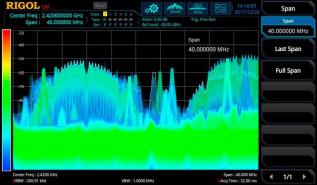

- Spectrogram for gap-free display of the spectrum
- Density for you to visualize how frequently signals occur
Frequency Range: 9 kHz - 4.5 GHz
Frequency Resolution: 10 HZ (1 Hz option)
Span: 0 Hz (zero Span) 100 Hz - 3.0 GHz
DANL: -136 dBm (-161 dBm with optional preamplifier)
Display: 25,7 cm (10.1") TFT-Color-LCD Touchdisplay (1024 × 600 Pixel)

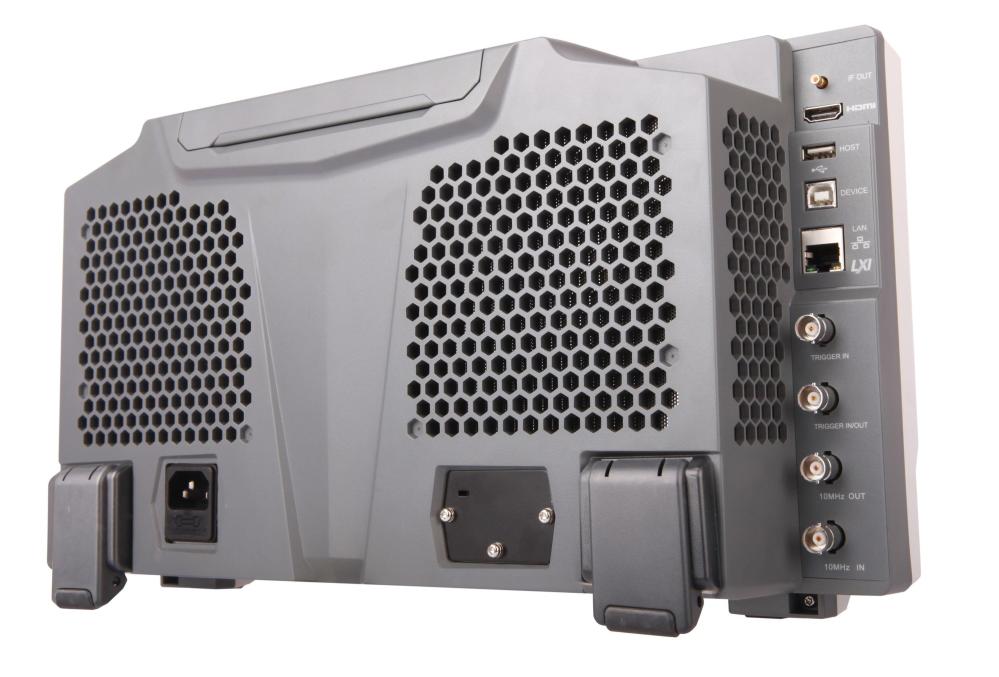

Interfaces: USB-Host, USB, LAN, GPIB

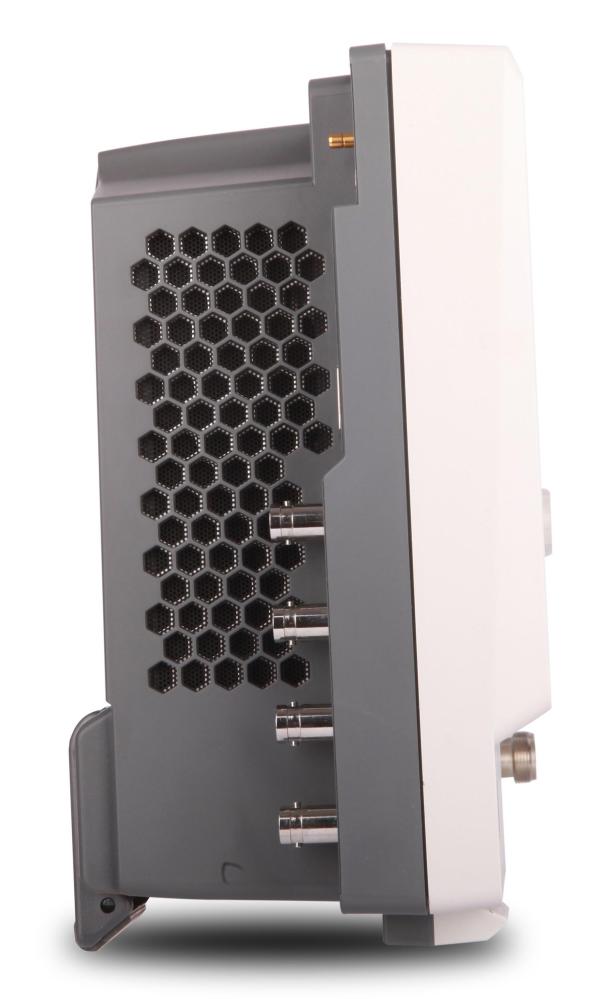

Dimensions: 410 mm × 224 mm × 135 mm
Weight: 4.65 kg
Included Accessories:
- USB Cable
- Instrument Cover
- Instrument Quick Guide
- Calibration Certificate
- Power Cord
