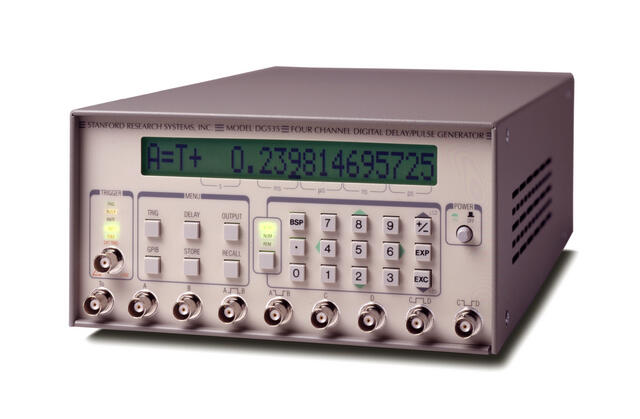

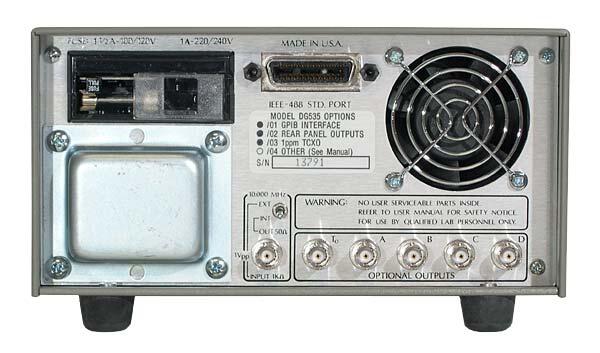

SRS DG535 Digital Delay Generator / Pulse Generator

Art. nr: SRS DG535

Begär offert




Produktbeskrivning

  • Four independent delay channels
  • Two fully-defined pulse channels
  • 5 ps delay resolution
  • 50 ps rms jitter
  • Adjustable amplitude and offset
  • Delays up to 1000 seconds
  • 1 MHz maximum trigger rate
  • Standard GPIB interface
  • Optional ±32 V output


Mer information

The DG535 Digital Delay and Pulse Generator provides four precisely-timed logic transitions or two independent pulse outputs.

The delay resolution on all channels is 5 ps, and the channel-to-channel jitter is less than 50 ps.

Front-panel BNC outputs deliver TTL, ECL, NIM or variable level (-3 to +4 V) pulses into 50 W or high impedance loads.

The high accuracy, low jitter, and wide delay range make the DG535 ideal for laser timing systems, automated testing, and precision pulse applications.
