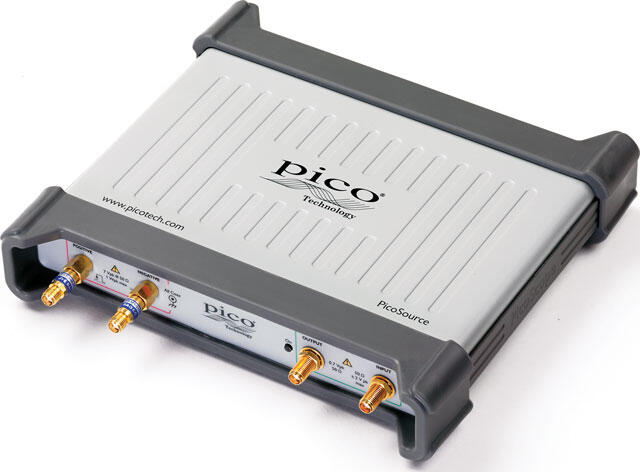

PicoSource PG911 USB Differential Pulse Generator with integrated dual step-recovery outputs, <60 ps rise time

Art. nr: PicoSource PG911
75 440 kr

Antal




Produktbeskrivning

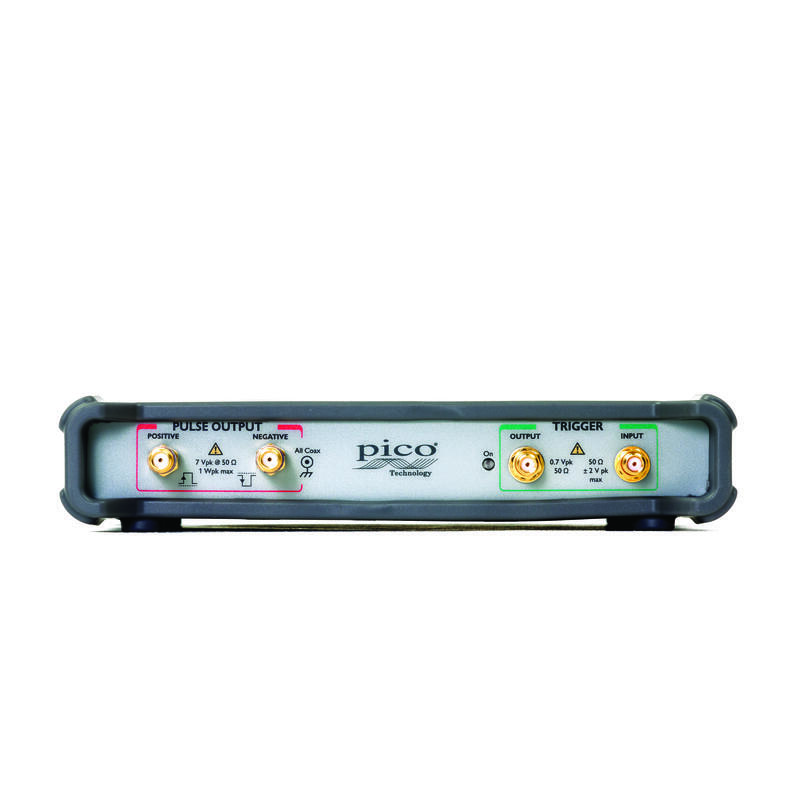

  • Integral 50 Ω SMA(f) Step Recovery Diode outputs
  • < 60 ps transition time
  • Dual 2.5 to 6 V variable amplitude outputs
  • ±1 ns in 1 ps steps timing deskew
  • 200 ns to 4 μs pulse width
  • 1 μs to 1 s internal clock period
  • < 3 ps RMS jitter relative to external trigger
  • -20 dB 10 GHz SMA(m-f) attenuator included with Step Recovery Diode outputs
  • Differential outputs
  • 200 ns to 4 μs pulse width
  • Adjustable 1 μs to 1 s internal clock period
  • Typical 3.0 ps RMS jitter relative to external trigger

The fast-transition pulse can stimulate a transmission path, device or network with a broad spectrum signal in a single instant.

Such a pulse is very useful for many of the high-speed broadband measurements that we need to make; for instance in time-domain reflectometry, semiconductor test, gigabit interconnect and port test and in radar.



Differential high-speed data in particular dominates the measurement challenge in our digital, computing, interconnect and telecommunications systems.



Surprisingly, cost-effective fast-transition differential pulse generators have been very hard to find ... until now!



Typical applications include:

  • TDR/TDT network and match analysis
  • Spectral and flatness measurements
  • Timing, jitter and crosstalk determinations

>>Read more at the Pico Website
