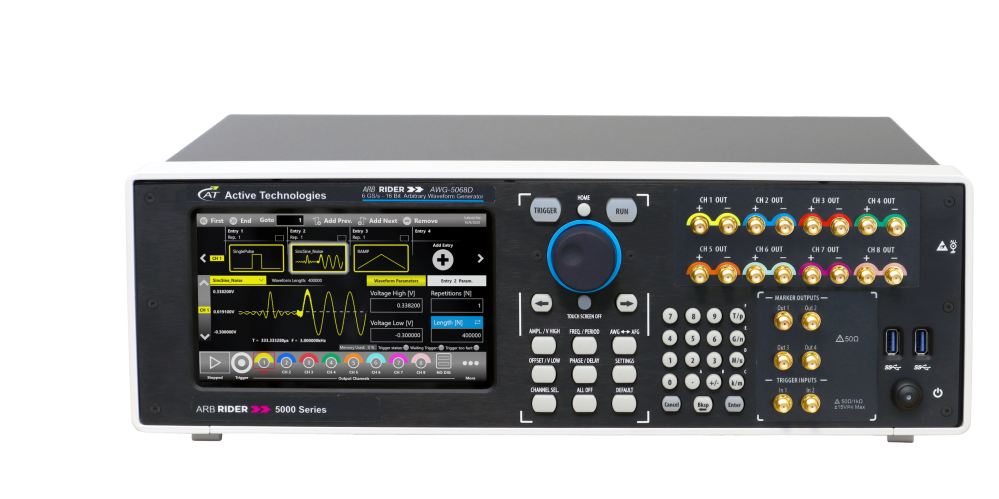

Active Technologies Arb-Rider AWG-5000 Series Pulse/Function Generator

2-, 4- or 8-channel generator with 6.16 GS/s sampling rate, 16-bit resolution and output voltage up to 5 Vpp.


Models:

  • AWG5062 (2 channels - 5Vpp | 50 Ohm - single ended output - 2Gs memory)
  • AWG5062D (2 channels - 1.5Vpp | 50 Ohm - differential output - 2Gs memory)
  • AWG5064 (4 channels - 5Vpp | 50 Ohm - single ended output - 2Gs memory)
  • AWG5064D (4 channels - 1.5Vpp | 50 Ohm - differential output - 2Gs memory)
  • AWG5068 (8 channels - 5Vpp | 50 Ohm - single ended output - 2Gs memory)
  • AWG5068D (8 channels - 1.5Vpp | 50 Ohm - differential output - 2Gs memory)
License options:
  • 4 Gsample memory per channel (rather than 2Gs standard)
  • 12GS/s RF mode (I/Q Up-Conversion up to 6 GHz)
  • SPG Option (Pulse Pattern Generator Option)
  • 8 digital channel licenses option
Built-in options (Factory installed):
  • FSS - Fast Sequence Switch (by 8 bit D-SUB connector)
  • GP-IB and USB TMC (Paid option)
  • LAN - Gb Ethernet (Free of Charge)
Key Features:
  • 6.16 GS/s,  16 Bit Vertical Resolution
  • Minimum Edge time down to 110 ps
  • Maximum dynamic range up to 5Vpp into 50 ohms
  • Up to 4 Gpts per Channel
  • up to 32 Digital Channels synchronous with analog Channels
  • SW User Interfaces: Simple Rider for AFG mode and Simple True Arb for AWG mode
The ARB Rider AWG-5000 Series is the world’s fastest 2, 4 and 8 channels pulse generators equipped with a 16 bit resolution Digital to Analog converter. Single pulse or double pulse can be programmed in few seconds thanks to the easy-to-use user interface.  AWG-5000 Pulse Generator series offers 6.16 Gs/s update rate, 5Vpp output voltage range, 110 ps Rise/Fall time, and up to 4 GSamples memory depth, making this product the ideal choice for Automotive, Aerospace & Defense, Big Physics and Semiconductor Test applications.

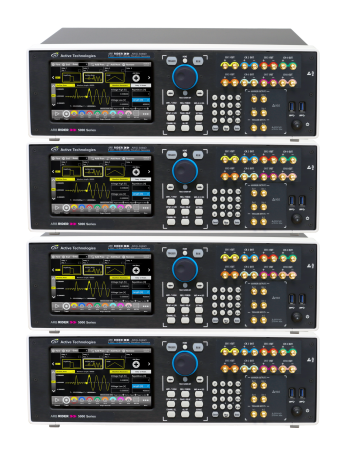

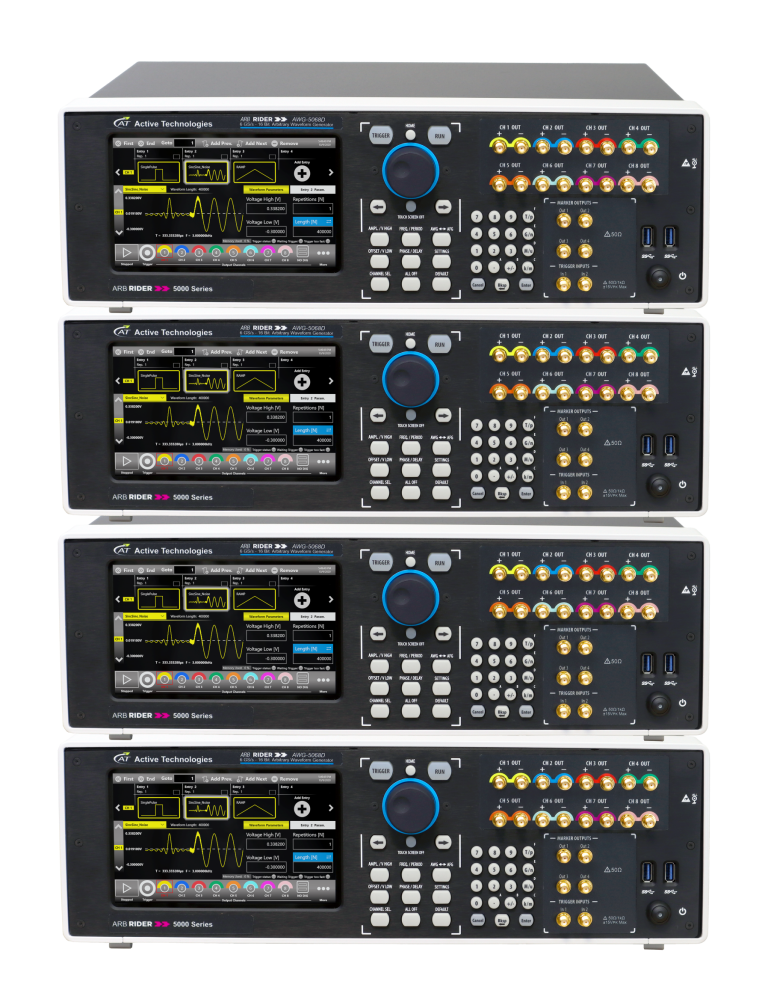

Up to 8 analog channels per unit and up to 32 digital lines (TTL or LVDS standards) allow the user to create a mixed-signal generation setup to generate analog and digital stimuli.

Product information

  • Art.no

    Active Technologies Arb-Rider AWG-5000 Series
