Active Technologies PG-1000 Series Pulse Generator with Fast Rise TimeActive Technologies PG-1000 Series Pulse Generator with Fast Rise Time
Filmer

Active Technologies PG-1000 Series Pulse Generator with Fast Rise Time

Art. nr: Active Technologies PG-1000 Series

Begär offert




Produktbeskrivning

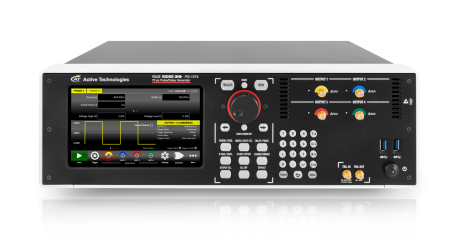

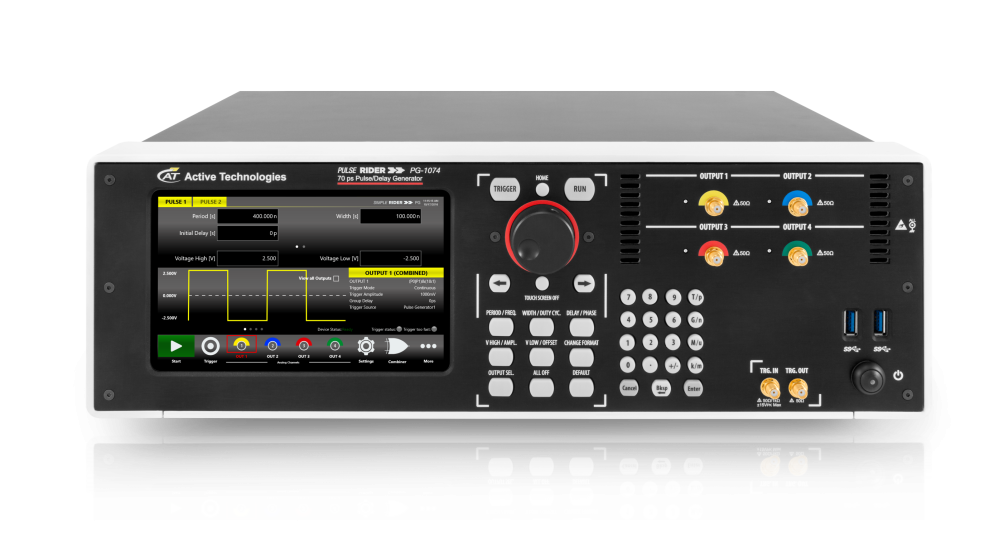

Models:
  • PG-1072 (2 Channel Pulse Generator)
  • PG-1074 (4 Channel Pulse Generator)
Built-in options (Factory installed):
  • GP-IB and USB TMC (Paid option)
  • LAN - Gb Ethernet (Free of Charge)
Key Features:
  • Up to 4 channels
  • < 70 ps rise/fall time (20%-80%)
  • Adjustable output level from 10 mVpp to 5 Vpp
  • Adjustable baseline offset ± 2.5 V
  • Maximum repetition rate 800 MHz per channel
  • Pulse width from 300 ps to > 1 s
  • Width resolution 10 ps
  • continuous, single, burst, gated, external trigger mode
  • Trigger in to output jitter < 35ps RMS
  • External clock-in and clock-out for easy synchronization

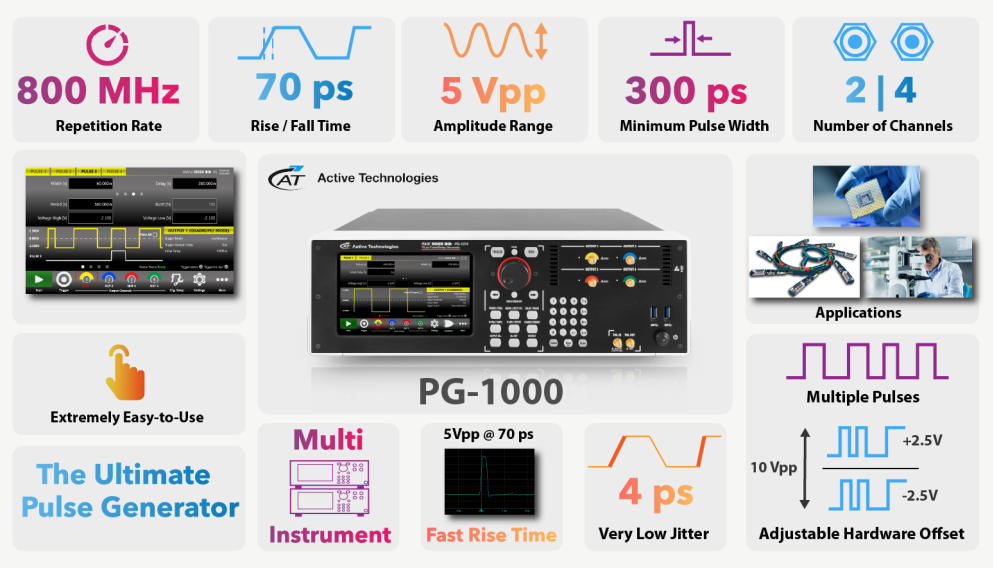

Picosecond Pulse Generator
The Pulse Rider Series includes a set of fast rise time pulse generators, that offer premium signal integrity with the easiest to use touch screen display interface (SimpleRider™), that allows pulse creation in few screen touches.

The signal output Voltage can be adjusted up to 5 Volts pk-pk in a window of ±5 Volts with 70 ps edge rate.

The powerful architecture provides the possibility to generate advanced pulse sequences, such as double pulse or quad pulse, with fully independent timing parameters. The maximum repetition rate of Pulse Rider Pulse Generator is 800MHz and the minimum pulse width is 300 ps @ 5V

Take a look to the video to see how to create a sub-nano second pulse, or download the full documentation to learn more.

Technical Specifications:
  • 1.2 GS/s, 16 Bit Vertical Resolution
  • Minimum Edge time down to 1.1 ns
  • Maximum dynamic range up to 12Vpp into 50 ohms
  • Up to 1024 Mpts per Channel
  • 8 Digital Channels in synchronous with analog Generation
  • SW User Interfaces: Expert Rider for AWG mode and Simple Rider for AFG mode
