Start | Sortiment | Rigol VSA Vector Signal Analyzer application build-in software option for RSA5000
Nyhet
Rigol VSA Vector Signal Analyzer application build-in software option for RSA5000 Rigol VSA Vector Signal Analyzer application build-in software option for RSA5000
  • Rigol VSA Vector Signal Analyzer application build-in software option for RSA5000
  • Rigol VSA Vector Signal Analyzer application build-in software option for RSA5000

Rigol VSA Vector Signal Analyzer application build-in software option for RSA5000

Art. nr: Rigol VSA option
19 030 kr

Antal




Produktbeskrivning

  • All-in-one demod and debug solution in the RSA5000
  • Validate RF modulation with views including:
  • Constellation Diagram
  • Real-Time Spectrum
  • Time/Symbol
  • Error summary
  • Error charts
  • Preset Instrument for standard configurations including:
  • GSM
  • W-CDMA
  • Bluetooth
  • 802.11b
  • Zigbee
  • APCO 25
  • Combine real-time frequency mask and power triggering with burst and sync search capabilities
  • Validate bit sequences with Bit Error Rate testing against known data





Mer information

RIGOL's VSA Application extends the capabilities of the RSA5000 Series to include Complex Signal Analysis and Demodulation.

The ability to analyze quadrature encoded signals makes it possible to characterize RF modulations including QAM and QPSK as well as ASK and FSK signals.

Engineers can also validate signals vs preset standards for signals including GSM, W-CDMA, Bluetooth, 802.11b, Zigbee, and APCO 25.

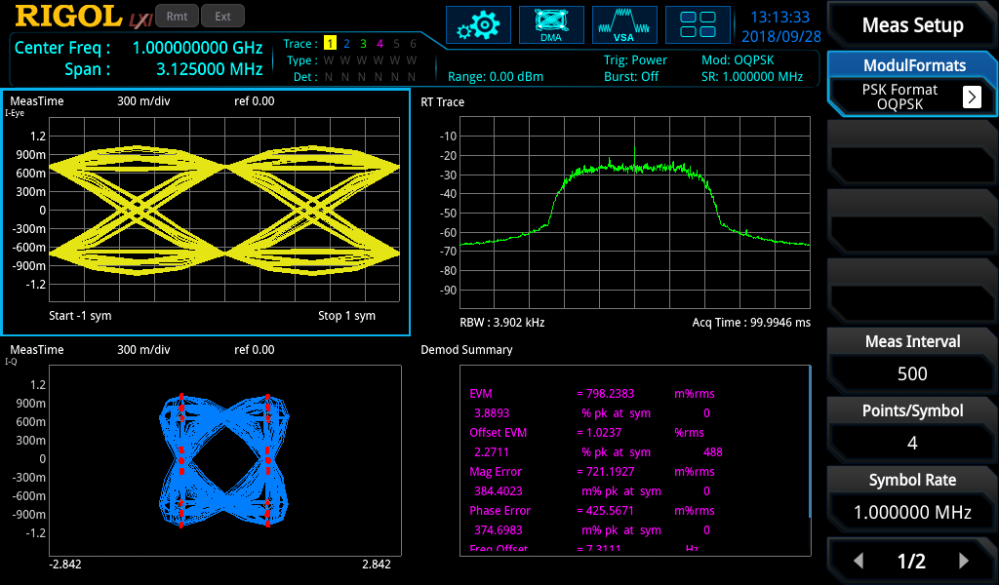

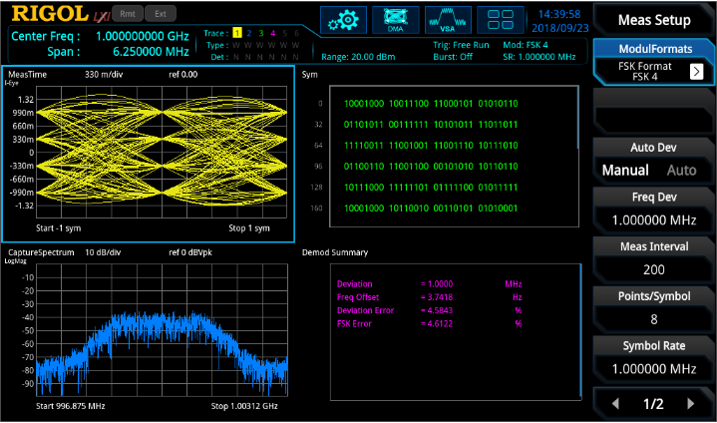

View constellation diagrams, spectrum, time, errors, and symbols to speed debug of these complex signals.

The VSA Measurement Application can be added to any RSA5000 Series Real-Time Spectrum Analyzer
