Rigol TX1000 RF Demo Kit

Art. nr: Rigol TX1000
9 530 kr

Antal




Produktbeskrivning

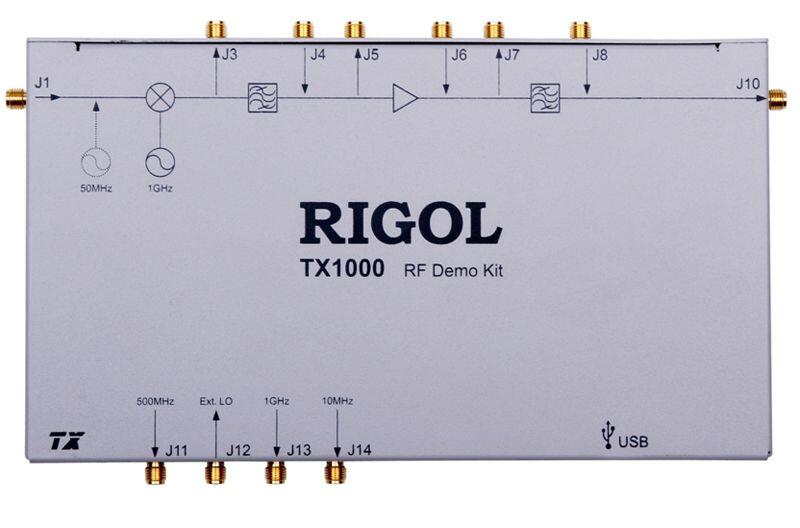

RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier.

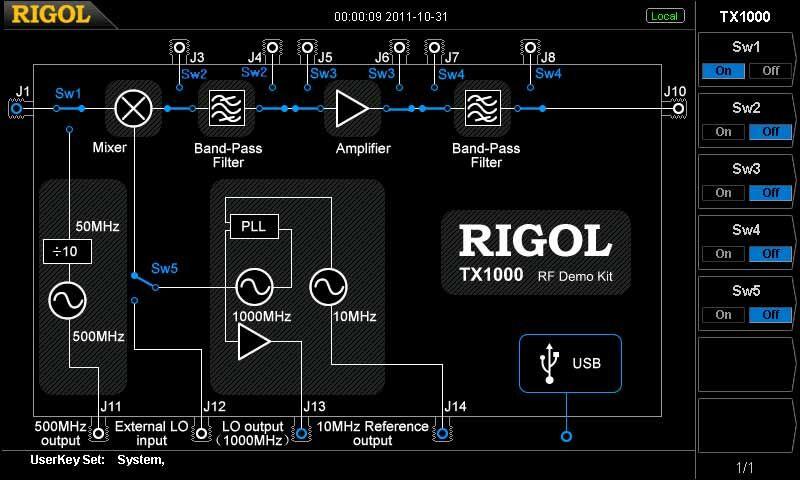

  • Energized by USB; connected with PC for operations and controlled through the program control panel on the PC.
  • Provide 10MHz reference signal output and can easily realize clock synchronization with other devices of the system.

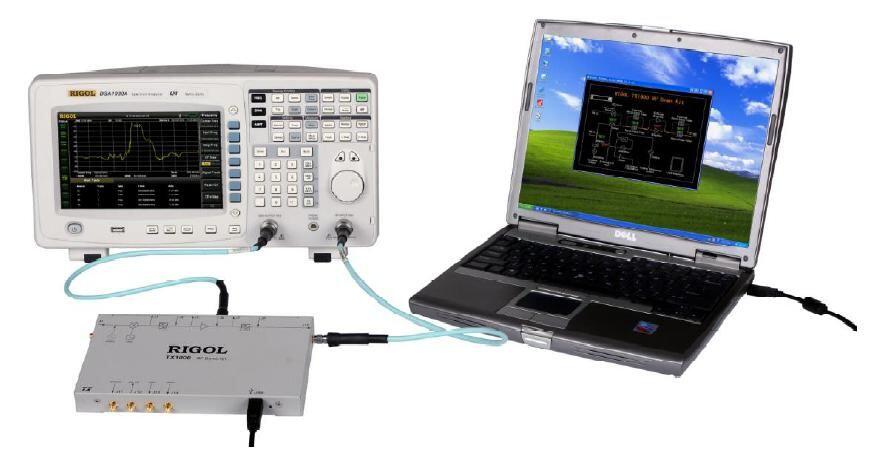

  • Built-in 50MHz signal which can be connected to the input port by “switches” to facilitate users’ learning, operation and demonstration of the spectrum analyzer.
  • 500MHz and 1GHz local oscillator signal outputs with good phase noise to convenient users’ various measurement needs when there is no signal source.
  • Modular circuit design; provide interfaces for users to make separate measurement of any component; enable to replace any component.
