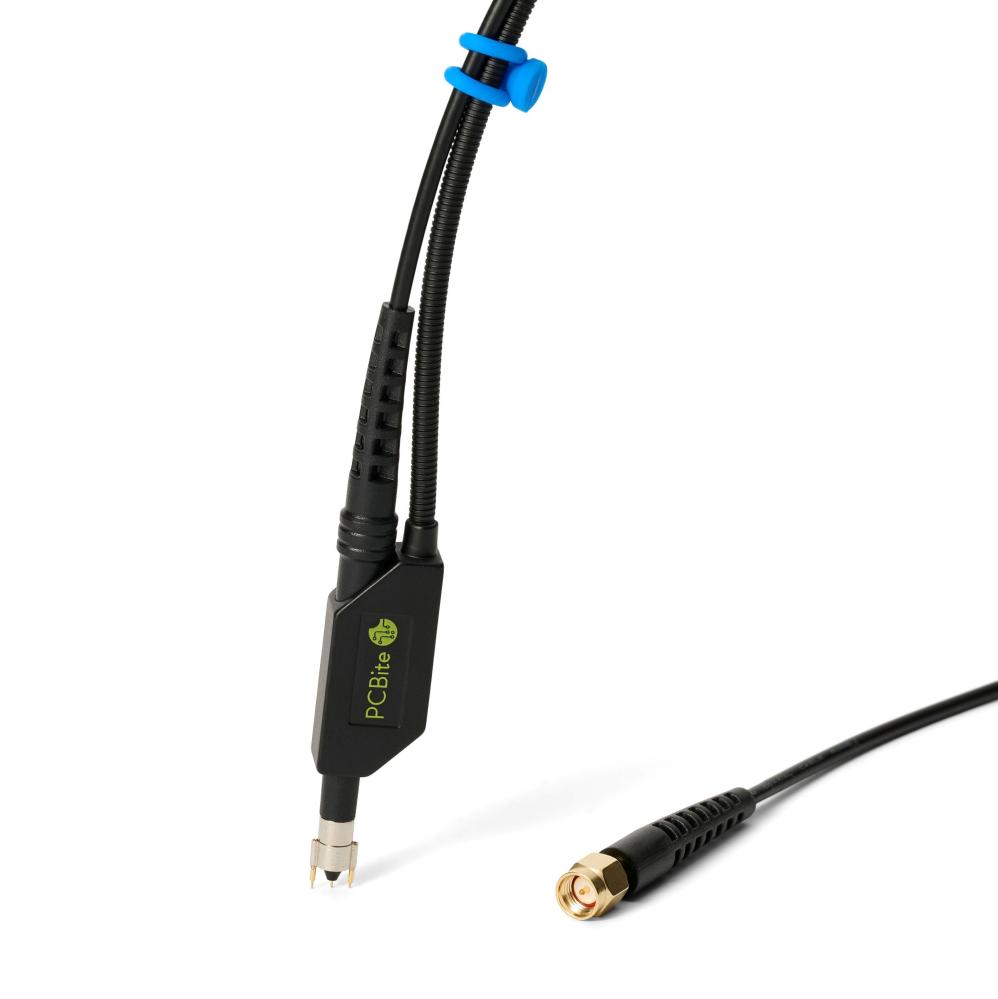

Sensepeek 7012 SQG60-AC Passiv oscilloskopprob

AC-kopplad passiv 10:1 prob, upp till 6,0 GHz bandbredd, 333 Ω spetsimpedans,

4 000 SEK

A complete 6 GHz AC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.
  • Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
  • Probe tip impedance of 333 Ω
  • Usable data rate exceeding 12 Gbps, making it ideal for high-speed signal measurements
  • Remarkably low probe tip capacitance of less than 0.69 pF, preventing capacitive loading
  • Flat frequency response (+/- 0.5dB) from 1.15 kHz to 4.8 GHz
  • Max ringing (+/-) 0.065 dB at 3 GHz and 0.15 dB at 6 GHz
  • The SQG60-AC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements.

Produktinformation

  • Art. nr

    PCBITE-7012
