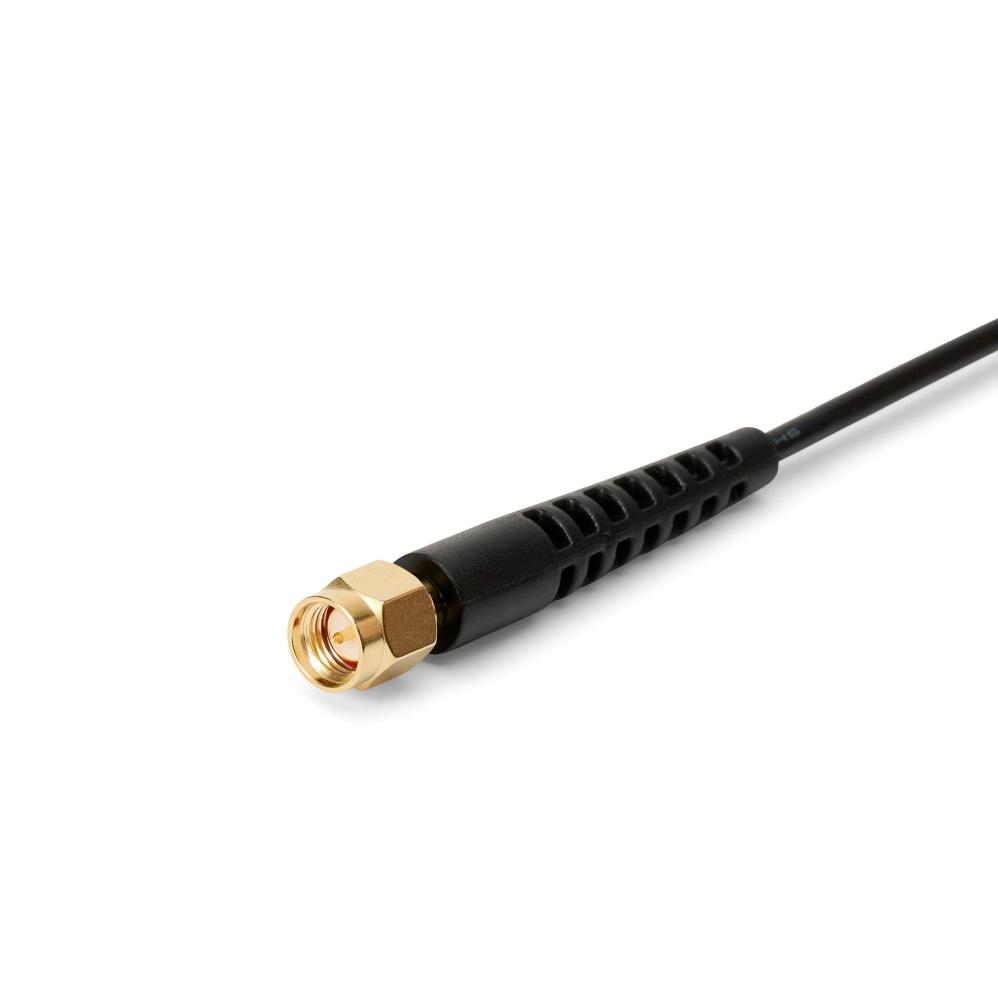

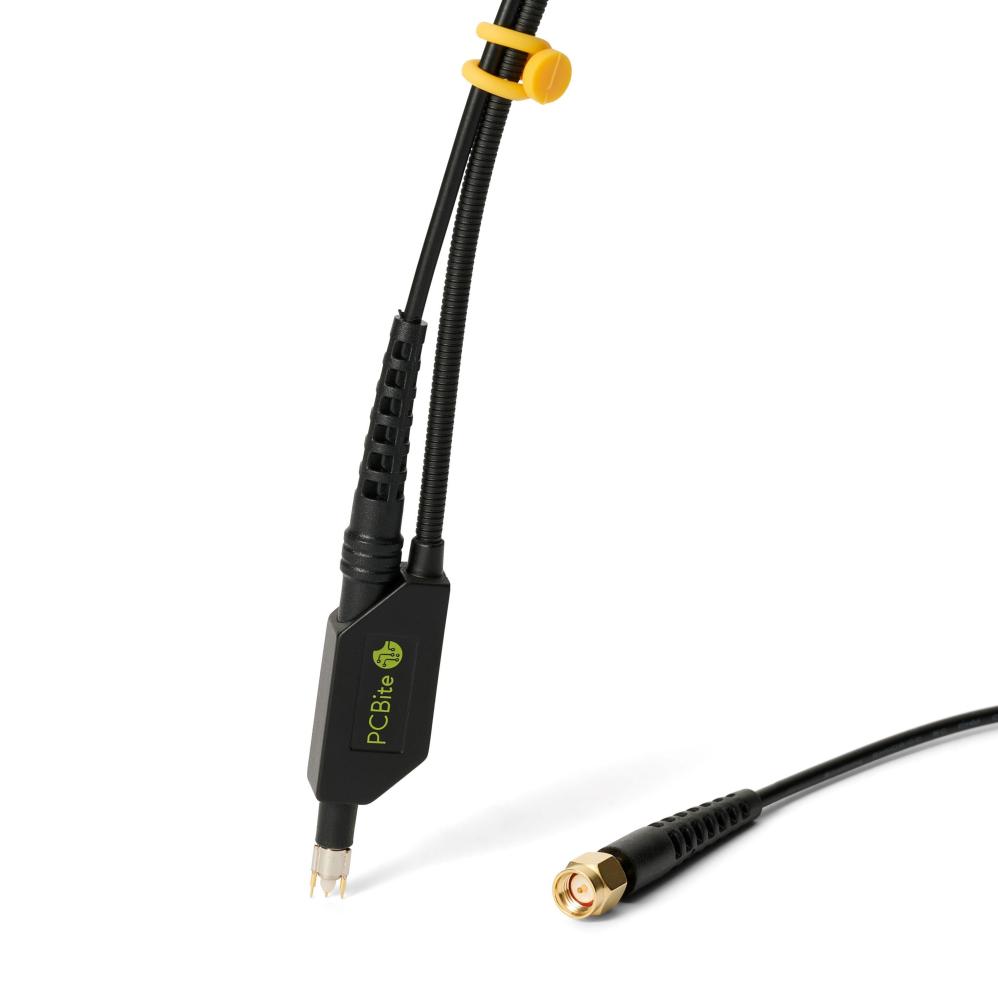

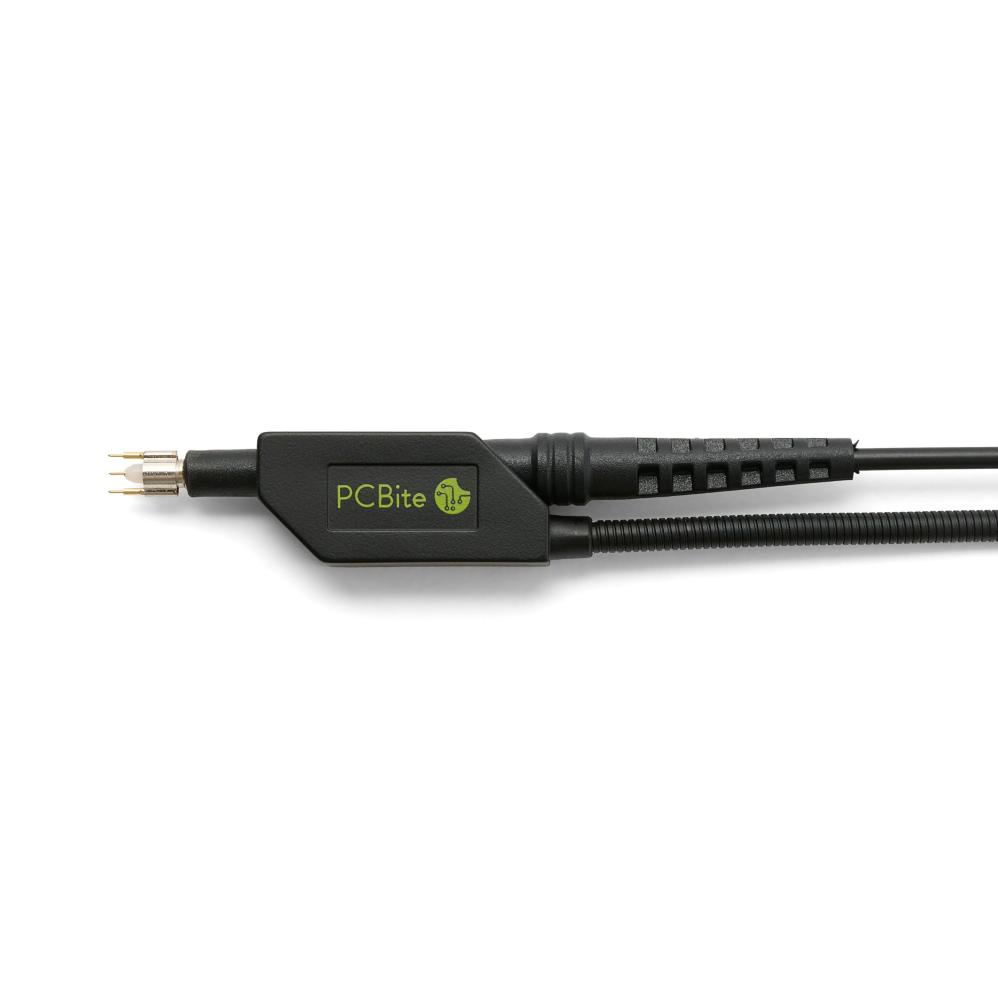

Sensepeek 7010 SQG30-AC Passiv oscilloskopprob

AC-kopplad passiv 10:1 prob, upp till 3,0 GHz bandbredd, 500 Ω spetsimpedans,

2 860 SEK

A complete 3 GHz AC-coupled, low-impedance probe, featuring a passive design that provides high dynamic range, low noise, superior linearity, and consistent long-term stability in signal flatness.
  • Passive 10:1 probe optimized for use with any measurement instrument featuring a 50 Ω input impedance
  • Probe tip impedance of 500 Ω
  • Usable data rate exceeding 6 Gbps, making it ideal for high-speed signal measurements
  • Remarkably low probe tip capacitance of less than 1.31 pF, preventing capacitive loading
  • Flat frequency response (+/- 0.5dB) from 1 kHz to 2.6 GHz
  • Up to 2 GHz with single GND and above 3 GHz with the dual GND clip
  • The SQG30-AC is the ultimate affordable solution for engineers seeking precision and ease of use in high-frequency measurements

Produktinformation

  • Art. nr

    PCBITE-7010
