Pico TA050 Attenuator set: 3-6-10-20 dB, 1 GHz 50 Ω 1 W BNC (m-f)
  • Pico TA050 Attenuator set: 3-6-10-20 dB, 1 GHz 50 Ω 1 W BNC (m-f)

Pico TA050 Attenuator set: 3-6-10-20 dB, 1 GHz 50 Ω 1 W BNC (m-f)

Art. nr: 71390
570 kr

Antal




Produktbeskrivning

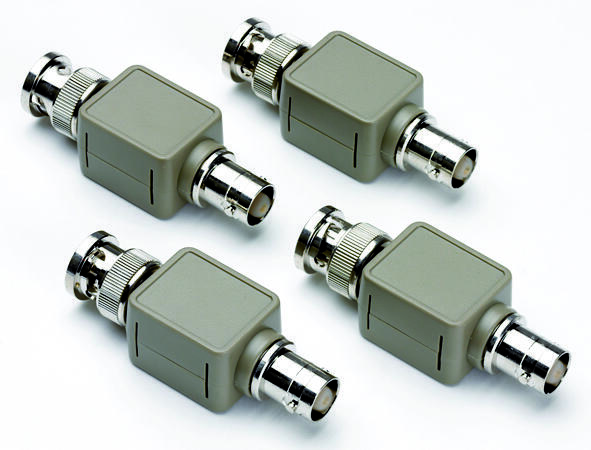

The TA050 attenuator set consists of four coaxial attenuators designed for use with signals up to 1 GHz.



Each attenuator has a male and a female BNC connector.



Usage note


The TA050 attenuators must be used with a matched 50 Ω source and load. If you wish to attenuate a signal before feeding it into a high-impedance measuring instrument, you must add a 50 Ω feedthrough terminator such as the Pico Technology TA051 feedthrough terminator.



TA050 Attenuator set specifications
Bandwidth: DC to 1 GHz
Attenuation: 3 dB, 6 dB, 10 dB, 20 dB
Maximum power dissipation: 1 W
Input impedance: 50 Ω
Output impedance: 50 Ω
VSWR: 1.5:1 or better
Dimensions: 56 x 20 x 17 mm

Connectors: BNC, 1 male + 1 female
Construction: Shielded inner box with plastic shell
Weight: 24 g each
