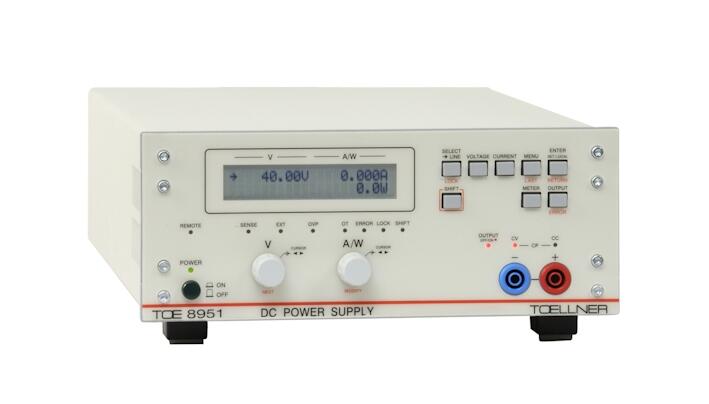

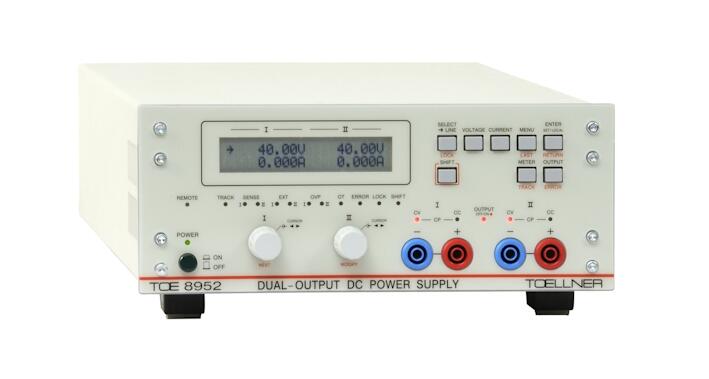

Toellner TOE 8951 & 8952 Series Laboratory Power Supplies

Programmable power supplies up to 400 W with auto-ranging, RS232 interface and arbitrary waveform generator for voltage and current simulation.


  • Automatic setting to the existing line voltage: 115 V or 230 V, 47 to 63 Hz
  • Autoranging
  • RS 232 and analog interfaces included as standard
  • USB and GPIB interfaces optional
  • Outputs at front and rear as standard
  • On/off switching of the outputs

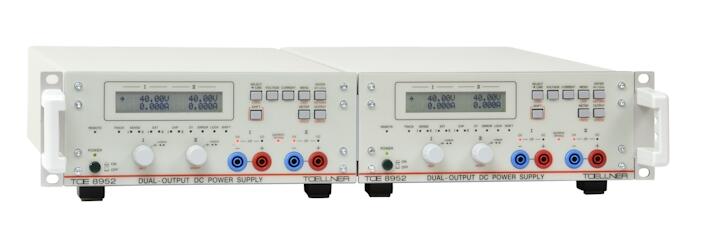

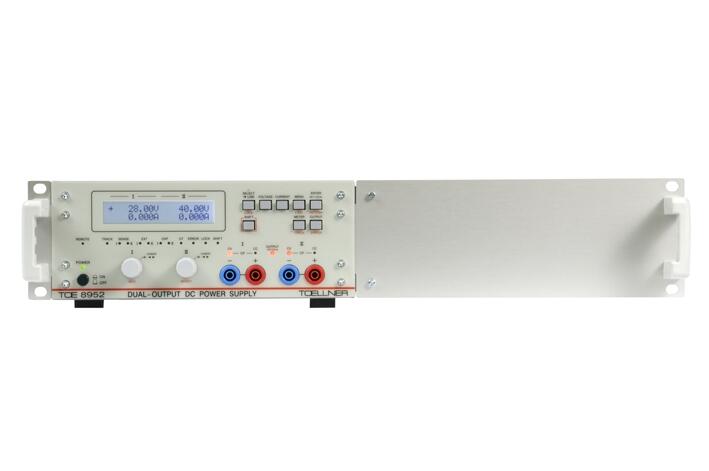

  • ½ 19" width, 2 HU design parallel installation possible Sensing
  • Free LabView™ driver
  • Can be used as constant voltage, constant current and constant power source (CV/CC/CP)
Outputs
  • Floating for all models
  • Electrically isolated in the dual-output power supplies series and parallel connections possible
  • Safety sockets at front
  • Available at rear on screw terminal block
Arbitrary function
  • 1000 interpolation points
  • 10 blocks with repeat function
  • 10 ms < t < 100 s per interpolation point
  • Burst function (also for each individual block)
Software for arbitrary function
  • Graphic and tabular input of curve
  • Data input from oscilloscopes
  • Library with standard curves for automotive industry
Curve input options
  • Manual
  • Via RS 232, GPIB or USB interface
  • Convenient TOELLNER software with graphic curve input option
