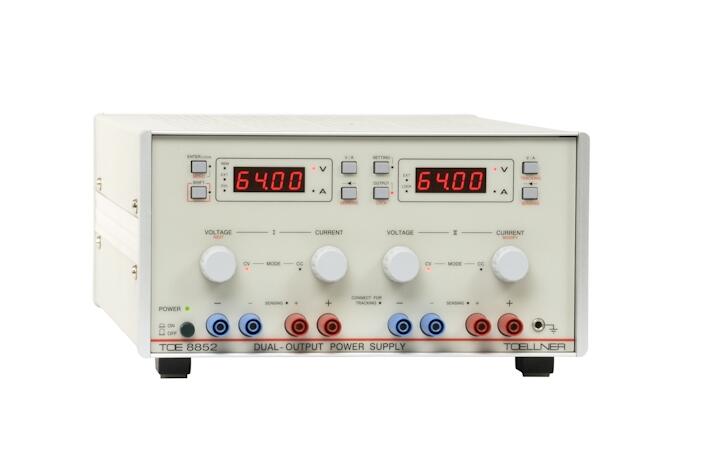

Toellner TOE 8840/8850 Series Laboratory Power Supply

1- or 2-channel DC power supplies up to 320 W with analogue control, RS232 and GPIB, sense function, 12-bit resolution and stable output with low ripple.

Name : *

Company : *

Phone : *

Email : *

Message:

Single-output and dual-output power supplies
Analog, IEEE 488 and RS 232 interfaces
(option)
Output power 160 and 320 W
In-phase regulation
LabView driver free-of-charge
Suitable for 19" rack mounting
Extremely high long-term stability
Exceptional control properties
Sensing as standard in 8850 models

A proven concept has been used for the new, systemcompatiblesingle-output and dual-outputpower supplies of the TOE 8840 and TOE 8850 series.

Exceptional specificationsare achieved with a total outputpower of 160 W or 320 W as a result of the classical in-phase control principle.

A total of 22 different models delivervoltages up to 130 V and currents up to 20 A.

With a resolution of 12 bits inthe voltage and current ranges, a simpleand convenient user interface, and the
excellent specifications, these instruments are suitable for both manual and bus based modes.
