3-channel DC power supply 0–32 V/10 A per channel, 384 W total output power, galvanically isolated channels, V/I tracking, EasyArb, FuseLink and USB/LAN interfaces.
The programmable 3 channel high-performance power supply HMP4030 is based on the classicaltransformer principle, utilising a high efficiency electronic preregulatorand a secondary linear voltage regulator.
This design concept stands for high output power, a compact sized housingand high efficiency, combined with smallest residual ripple.
The HMP4030 has three identical channels with a voltage range of 0 to 32 V. Due to the intelligent power management, 10 A can be drawn at 16 Vand 5 A are delivered at the full rated output voltage of 32 V.
Power supply units in industrial production environments are often found in 19" racks.
The R&S® HMP series instruments are very suitable for this use as all models can be integrated into 19" racks with the rack mounting kit R&S® HZP91.

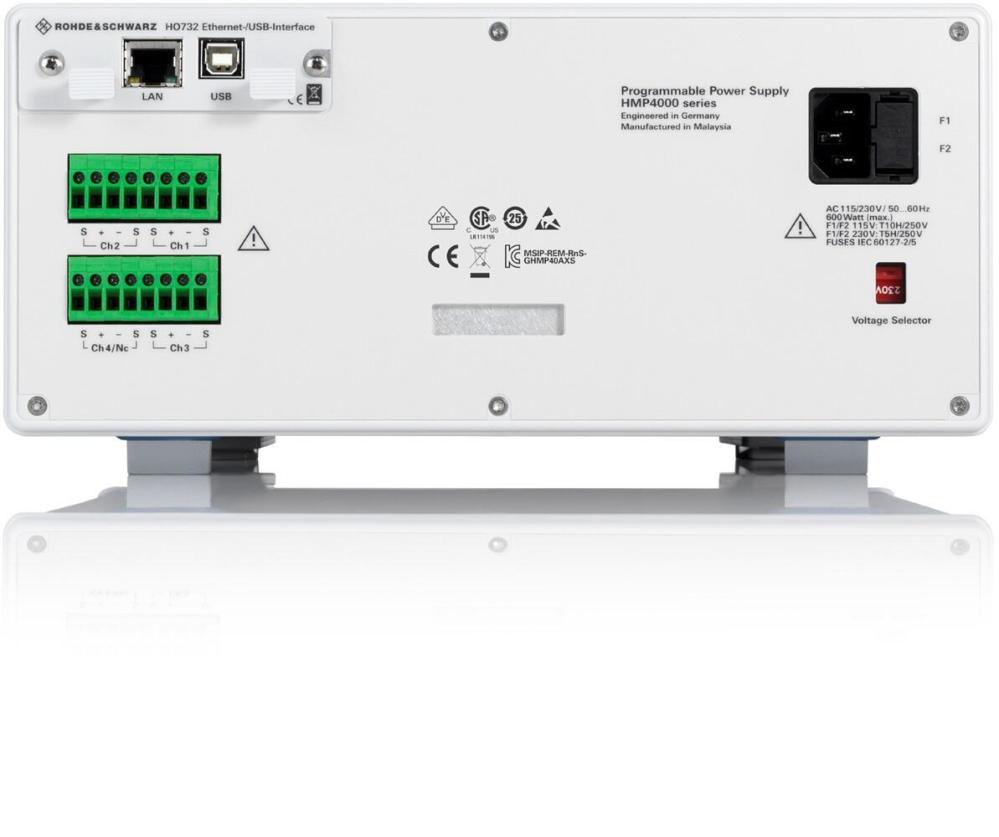

Additionally, all front panel connectors, including SENSE lines, are also located at the back panel of the instrument.

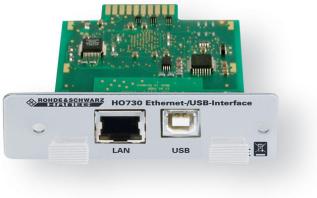

The R&S®HMP power supplies are equipped with a dual USB/LAN interface as standard.
This interface can optionally be replaced by a dual RS-232/USB interface or a GPIB (IEEE488) interface
