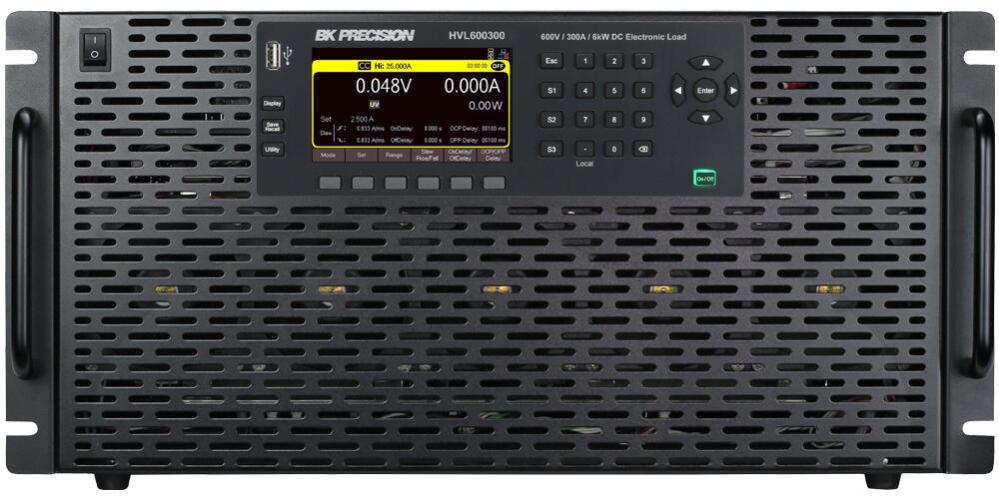

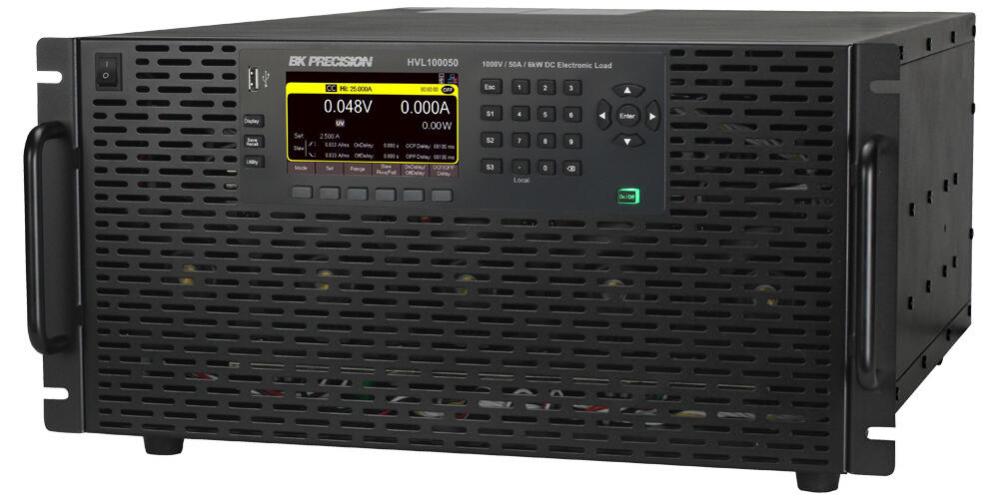

BK Precision HVL Series Electronic Load

Models

HVL600300 – 600 V, 300 A, 6 kW High Voltage DC Electronic Load
HVL800150 – 800 V, 150 A, 6 kW High Voltage DC Electronic Load
HVL100050 – 1000 V, 50 A, 6 kW High Voltage DC Electronic Load

• 6 kW programmable DC electronic loads
• 5U high power density form factor
• Operating modes: CC, CV, CR and CW
• Continuous, pulse and transient operation
• Transient mode up to 10 kHz in CC mode
• Advanced list mode programming with up to 100 steps
• Parallel operation of up to 10 units for up to 60 kW total power
• Adjustable slew rate and loop response
• Short-circuit test and soft-start function
• USB host port for CSV data logging
• External analog control and monitoring
• 4.3-inch LCD display
• USB, LAN, RS232 and GPIB interfaces as standard
• SCPI support and LabVIEW driver
• Remote sense and parallel synchronization
• Rack-mount brackets with handles included
• cTUVus certified according to CSA and UL standards

Applications

• ATE systems and automated testing
• DC-DC converters
• Batteries and battery chargers
• Photovoltaic arrays and energy storage systems
• EV batteries and onboard chargers
• High-voltage and high-current DC sources
• Dynamic load testing

The BK Precision HVL Series 6 kW programmable DC electronic loads are designed for testing high-voltage and high-current DC power sources in laboratory, development, and ATE environments. The series includes models with operating voltages up to 1000 V and delivers high power density in a compact 5U chassis.

The instruments support constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) operating modes, as well as continuous, pulse, and transient operation for simulating dynamic load conditions. Transient functionality enables fast switching between two load levels with transient speeds up to 10 kHz in CC mode.

The HVL Series features advanced list mode programming with up to 100 programmable steps and supports sequence repetition, trigger functions, and synchronization with external instruments. Load sequences can be configured directly from the front panel or remotely using the included operating software and data logging tools.

For higher power applications, up to ten identical units can be connected in parallel to increase total sink capability up to 60 kW for the 6 kW models. The series is optimized for testing DC-DC converters, batteries, battery chargers, photovoltaic systems, and other high-performance DC power sources.

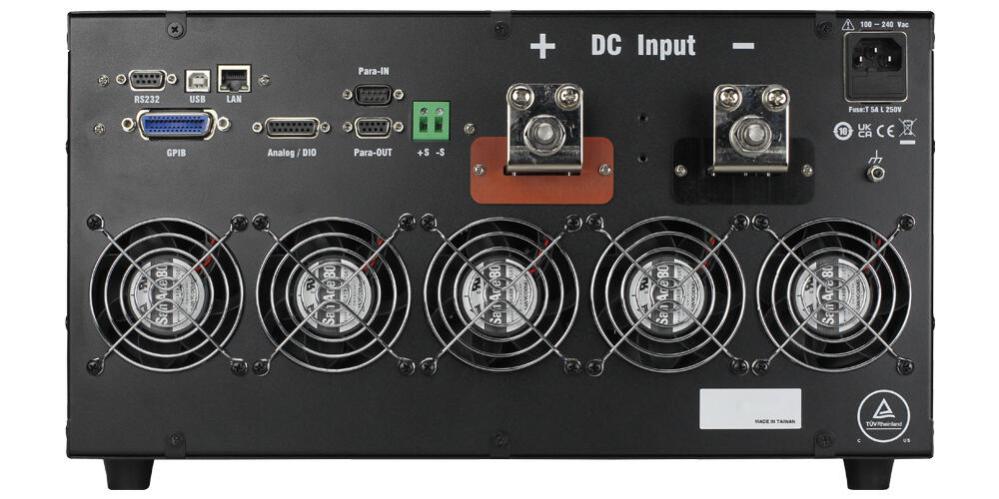

Standard USB, LAN, RS232, and GPIB interfaces with SCPI support enable easy integration into automated test systems. Additional features include USB host data logging, external analog control and monitoring, remote sense capability, battery test software support, and LabVIEW drivers.
