BK Precision BK9801 Programmerbar AC källa 300VA

Art. nr: 72091
28 330 kr

Antal




Produktbeskrivning

BK9801 Programmable AC Power Source

  • Max Voltage: 300 V
  • Max Current: 3 A
  • Max Power: 300 VA

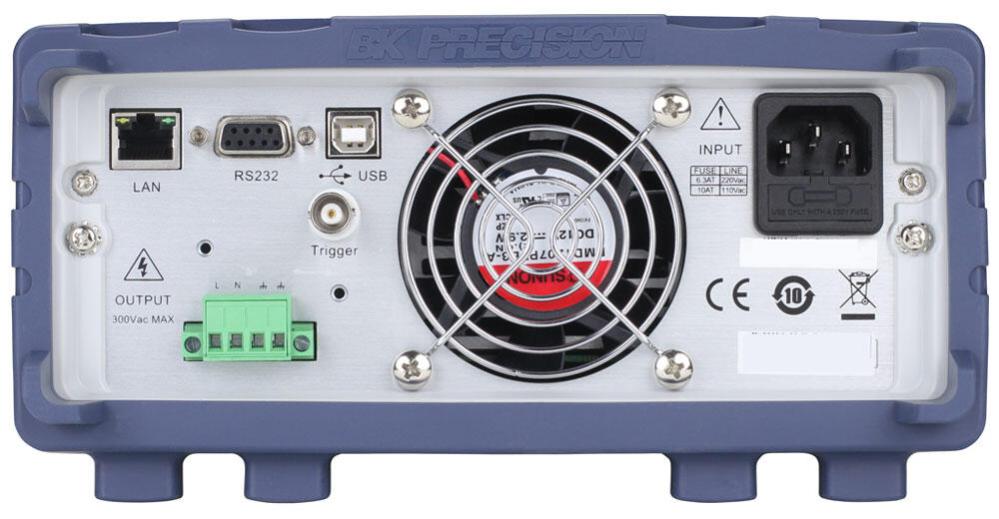

  • Interface: LAN, USB, & RS232

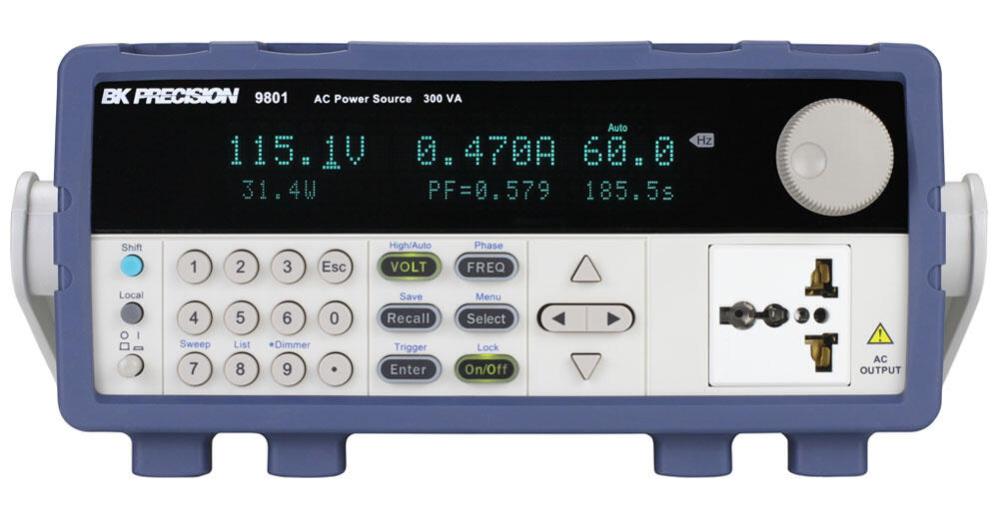

The 9800 Series is both a programmable AC source and measurement tool. These fully programmable linear AC sources deliver a maximum of 1500 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angle from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak,frequency, power factor (PF), apparent power, true power, and elapsed output time.

The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.

  • 0 to 300 V, low distortion AC power source with models delivering a maximum of 1500 VA, 12 Arms / 48 Apeak
  • Output frequency adjustable from 45 Hz – 500 Hz
  • Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 - 300 V
  • Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
  • Adjustable phase angle control
  • Built-in PLD and dimmer simulation
  • Voltage and frequency sweep mode
  • Downloadable LabVIEW driver and soft panel software for remote control
  • Standard USB (USBTMC-compliant), RS232, LAN, and GPIB (9803 & 9805 only) interfaces
  • Pre-compliance testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4 14 / 4-28

Common applications
The 9801 AC power source is suitable for evaluating transformers, TRIACs, SCRs, and passive components as well as production, R&D, service, and pre-compliance testing.
