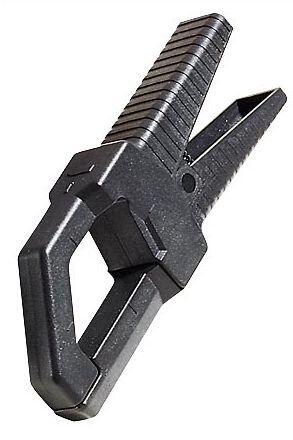

Chauvin Arnoux Y1 Current Clamp

Current clamp for AC 4–600 A with current output 1 mA/A, suitable for measuring instruments with current input, for cable or busbar up to 600 A.

2 690 SEK

The Y Series is a range of transformer clamps whose jaw shape and clamping diameter allow the measurement of alternating currents up to 600 A on cables 30mm in diameter or busbars up to 62x5 mm in installations up to CAT III 600 V or CAT IV 300 V.

Main features of the Y1N model:
  • Rated current: 600 A AC
  • Output signal: alternating current
  • Transformation ratio: 1,000/1
  • Output via lead and isolated Ø 4 mm male plugs
  • Outputprotected against voltage surges

Product information

  • Art.no

    P01120001A
