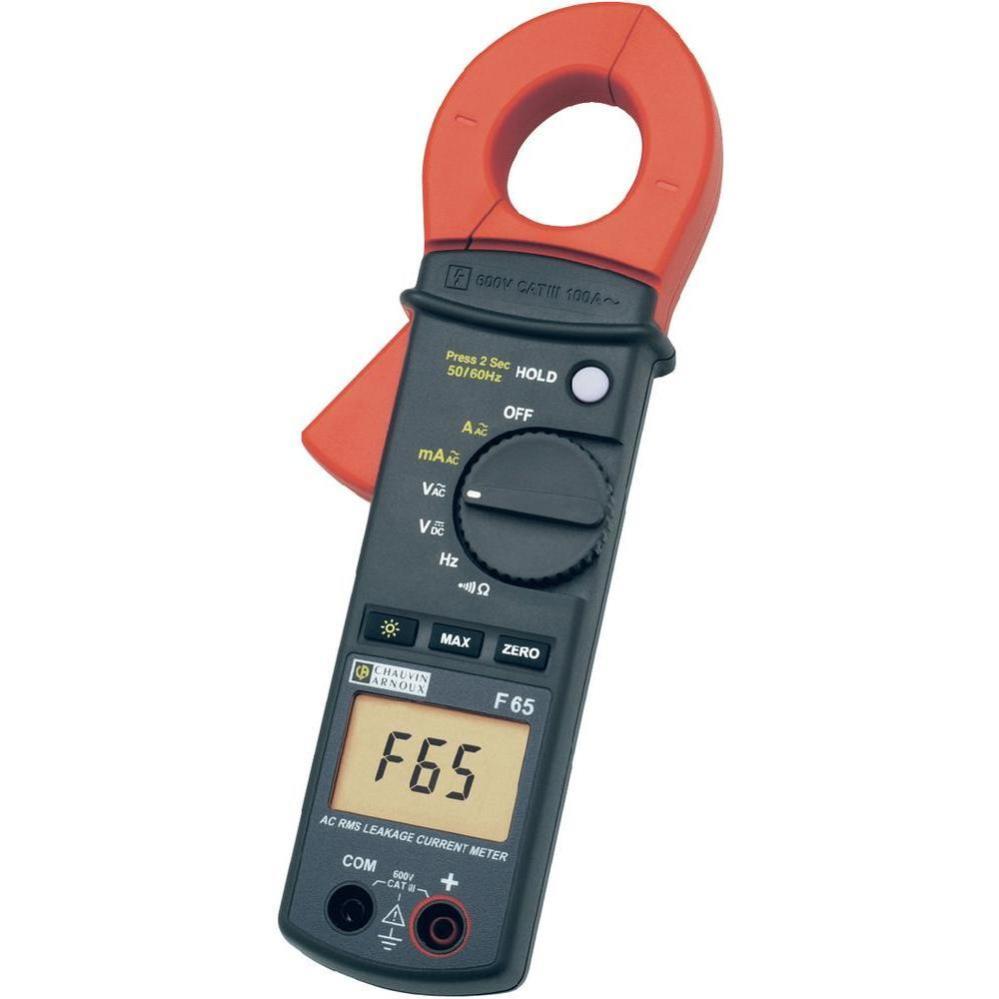

Chauvin Arnoux F65 Leakage Current Clamp

Leakage current clamp for earth fault troubleshooting, 30 µA–100 A AC range, 10 µA resolution, high immunity and differential measurement.

5 660 SEK

In the event of an insulation fault or untimely tripping of RCDs, the F65 clamp is the ideal tool for detecting and measuring the leakage currents flowing to earth.

The versatile F65 clamp also offers all the functions of a multimeter clamp.

In addition, the F65 clamp is equipped with an RMS converter to ensure that the measurements remain accurate even in the presence of distorted signals.

10,000-count backlit display
Current: 30 µA to 100 A AC
Resolution: 10 µA
50/60 Hz anti-harmonic filter
High immunity to eddy currents: 70 dB
AC/DC voltage: 0.1 V to 600 V
Frequency: 5 Hz to 1 kHz
Resistance: 0.1 Ω to 1 kΩ
Audible continuity: < 35 Ω
Functions: Max, Relative, display memorization
Automatic power-off with battery status indication
300 V CAT III
