Metrix MTX3297Ex Ex-Rated Multimeter
Ex-rated TRMS multimeter for ATEX zones 0/1/2 and 20/21/22, 60,000-count dual display, µV/µA resolution and measurement of voltage, current and temperature.
The MTX 3297Ex is an intrinsically safe TRMS digital multimeter that completes the Asyc IV series of industrial multimeters.

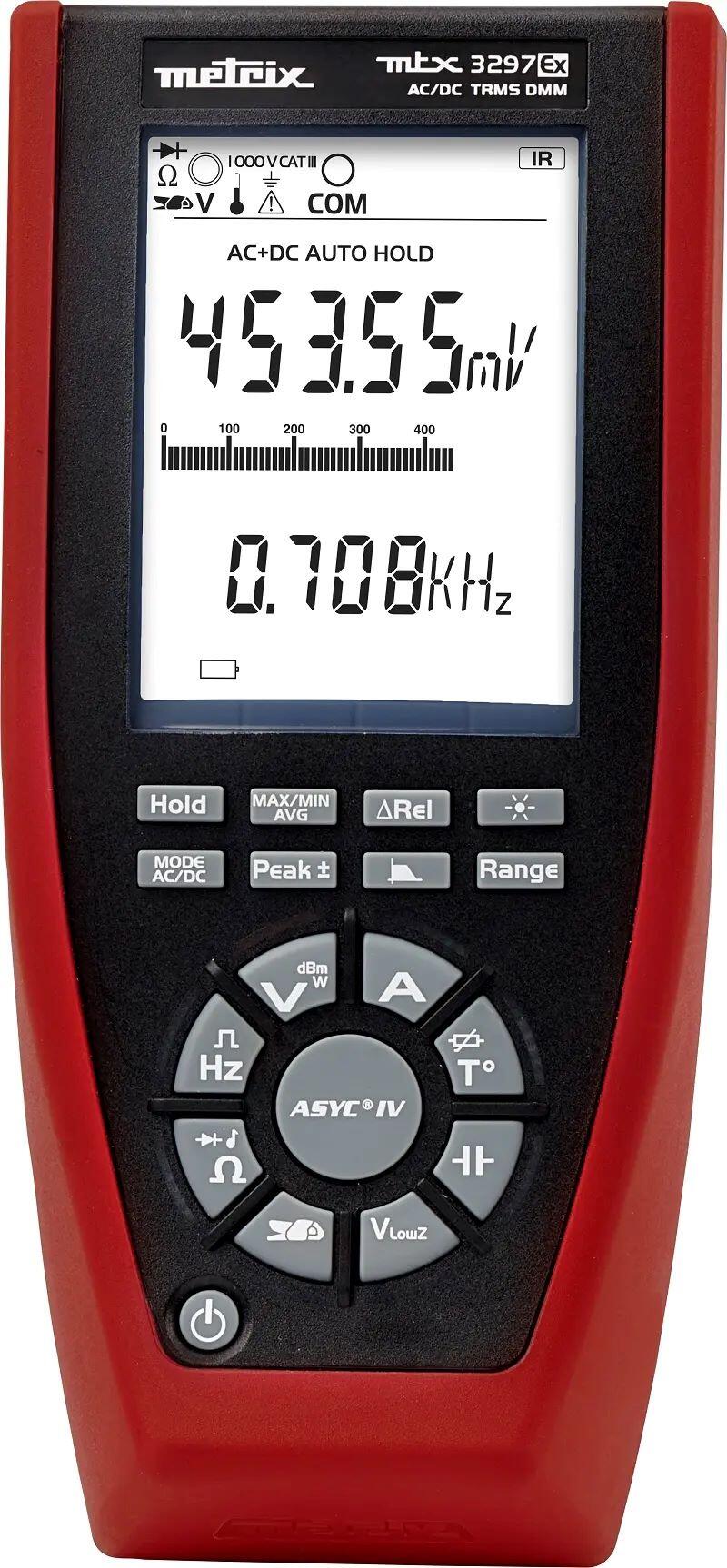

The MTX3297Ex is a 60,000 digit dual display multimeter for the most demanding industrial conditions. Certified for use in explosive Ex zones with these certifications;

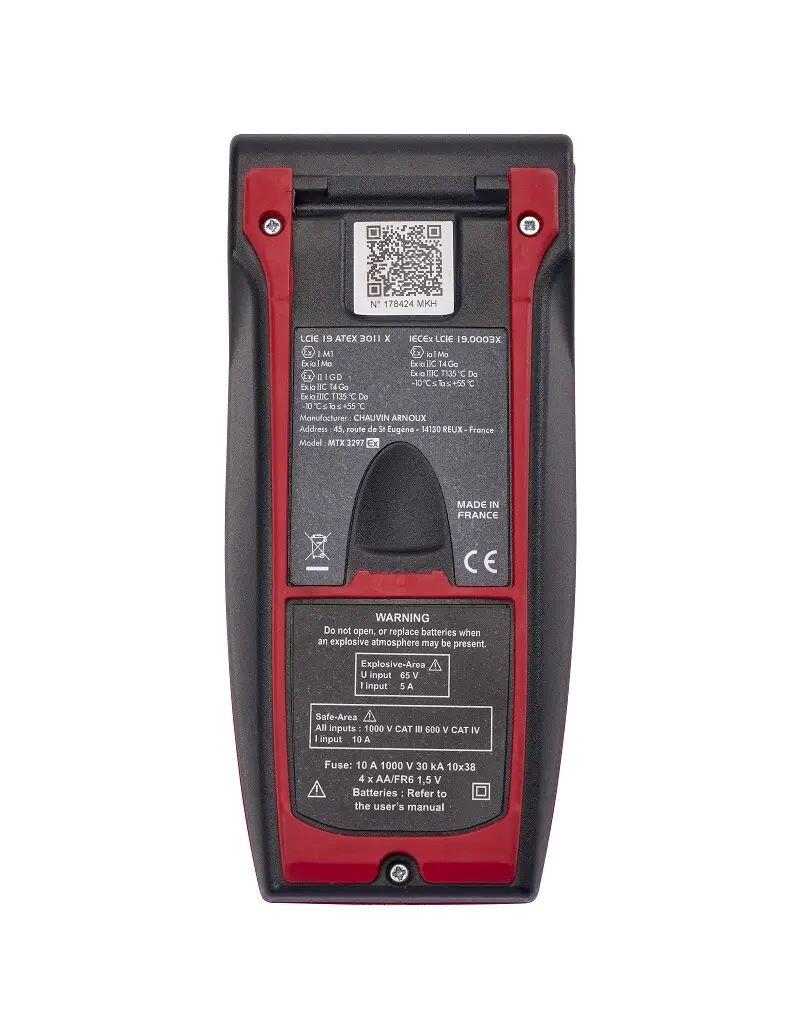

LCIE 19 ATEX 3011 X :
- Ex I M1
- Ex II 1 G
- Ex II 1 D
IECEx LCIE 19.0003X;
- Ex ia I Ma
- Ex ia IIC T4 Ga
- Ex ia IIIC T135 °C Da
All certificates are for permanent use in these Ex zones. No waiting time after it is used outside an Ex zone.
The MTX3297Ex is also a safe multimeter for measuring voltage, current, resistance, capacitance, frequency, temperature and diodes. With the highest resolution for measuring voltage 1 µV and current 0.01 µA. MTX3297Ex can be used outside Ex zones.

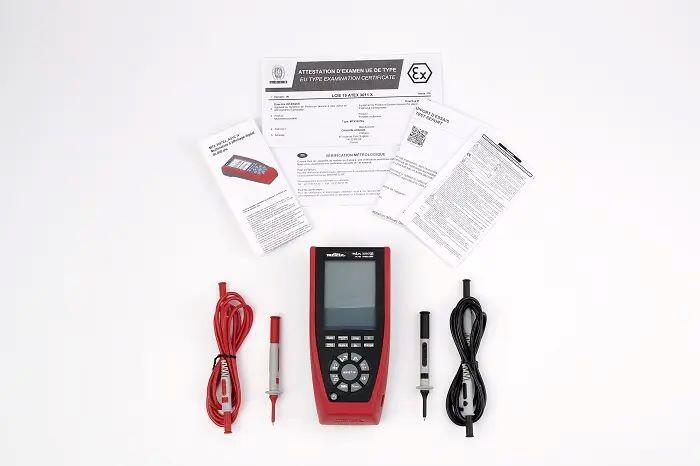

Supplied with Ex specified batteries and Ex fuse .
Software for the MTX3297Ex can be downloaded from the link below. Optical/USB cable HX0056-Z is available as an accessory.
