Eurostat TOM610 Tera-Ohm Meter - Ytresistansmätare i kit med touchscreen

Art. nr: Eurostat TOM610
29 700 kr

Antal




Produktbeskrivning

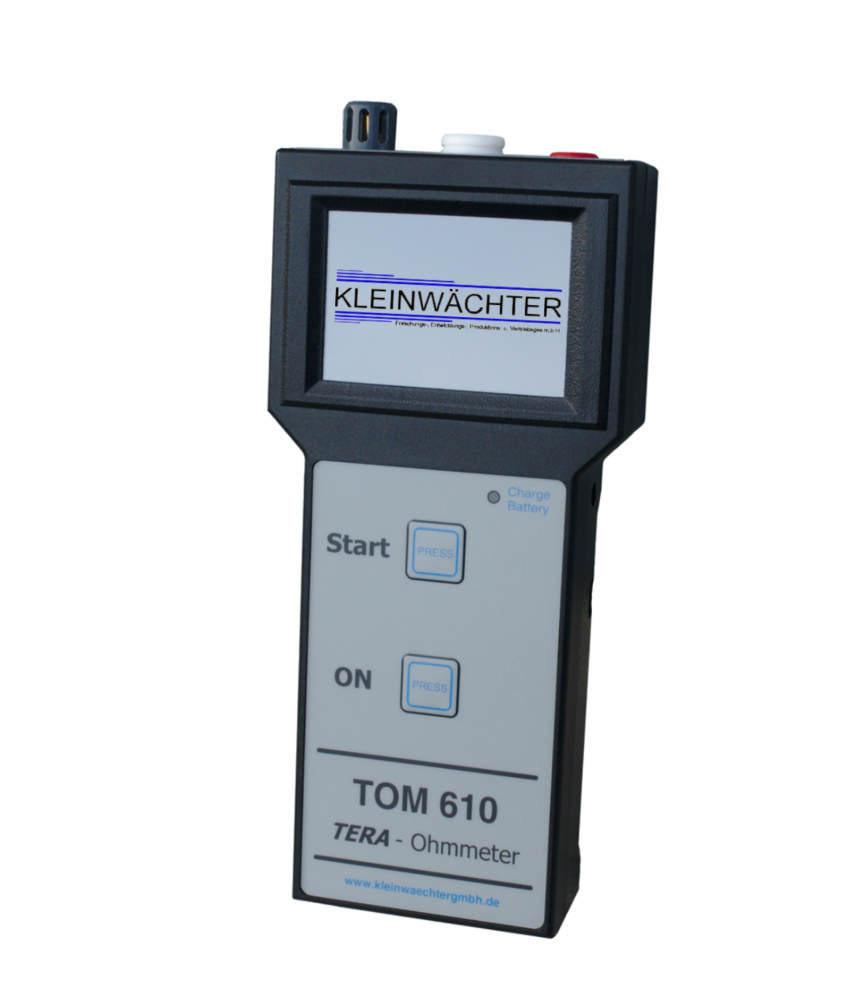

This digital surface resistance meter measures high resistance up to 2 Tera-Ohm (2x10e12Ω) and registers at the same time humidity and air temperature values. The menu driven TOM 610 is operated by only 2 pushbuttons and its touch display and therefore very user friendly. All set measurement parameters are shown in the display for a better orientation.

Specifications
  • Dimensions: 200x100x40 mm
  • Weight: 380 grams (excluding batteries and electrodes)
  • Power supply: 4xAA batteries with permanent control for 10 hours utilisation.
  • Supplemented with a 9V DC/300mA supply device
  • Display: Touchscreen

Included in the kit: Tester, 4 rechargeable batteries, Power supply, 2 cords (1m/5m), Serial PC cable, CD rom with PC interface (in English and German), Pair of 2.5kg electrodes, Operating instructions, Certificate of calibration

Calibration: Yearly

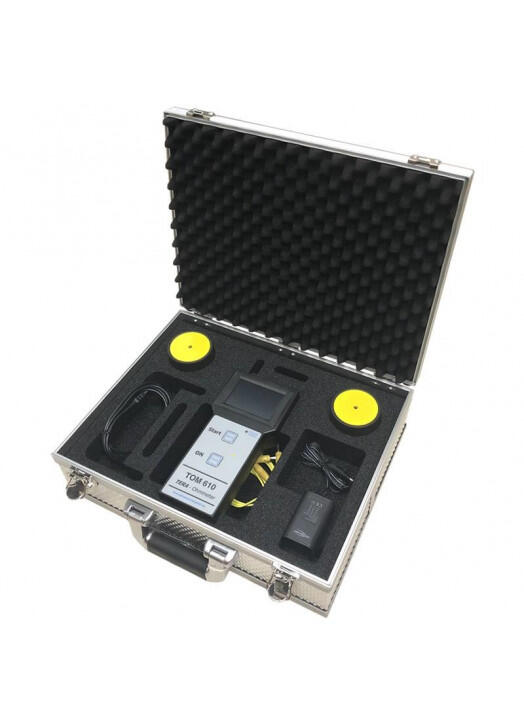

Packaging: Delivered in a conductive suitcase with foam inserts

Measure range
Resistance: From 2x10e4Ω to 2x10e12Ω

Measure voltage: 10V for voltage < 2x10e5Ω / 100V for voltage > 2x10e5Ω

Humidity: From 10 to 90% of Relative Humidity

Features and advantages
  • Suitable for mobile use with compact housing and rechargeable batteries.
  • Operates friendly: only 2 buttons are required to use it.
  • Measures resistance, temperature & humidity at the same time.
  • PC software interface included on CD-ROM (in English and German) : all results can be exported to Microsoft Excel TM
  • Suitable for mobile use with compact housing and rechargeable batteries.
  • Electrodes compliant with EOS-ESD 4.1/6.1, Tester compliant with IEC 61340-5-1
  • RoHS compliant
